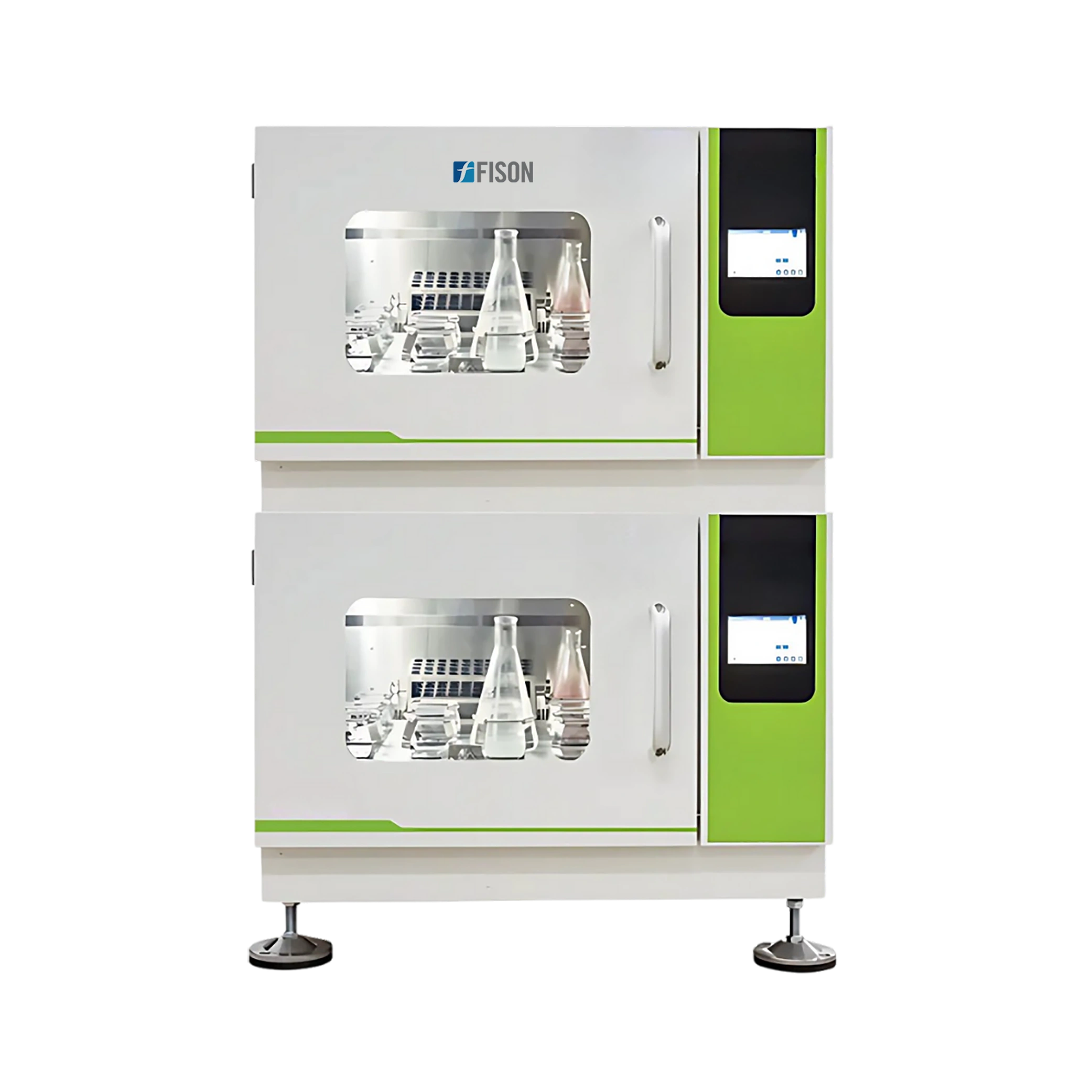

CO2 Shaking Incubator FM-CSI-C107
CO₂ Shaking Incubator FM-CSI-C107 offers a shaking speed range of 0 or 5 to 350 rpm, with the top stack operating at a maximum of 300 rpm for reliable and consistent mixing. It features an eco-friendly compressor with fluoride-free refrigerant, ensuring efficient cooling. It provides a temperature range of 4℃ to 60℃, ensuring optimal conditions for reliable incubation and sample growth. It offers a touch screen interface for convenient and efficient operation.
Specifications
| Shaking Speed (no load) | 0 or 5 to 350 rpm (Top: max 300 rpm) |
| Speed Accuracy | ±1 rpm |
| Max Capacity (per plate) | 250 mL × 25, 500 mL × 16, 1000 mL × 9, 2000 mL × 5 |
| Amplitude | Φ26 mm |
| Temperature Range | 4℃ to 60℃ (RT 23 to 25℃) |
| Temperature Adjustment Accuracy | ±0.1℃ |
| Temperature Uniformity | ±0.5℃ (@37℃) |
| Display | LCD Touch Screen |
| Convection Method | Forced-convection heat transfer |
| Temperature Control | PID |
| Timer Range | 1 min to 999 h |
| Platform Size (Interchangeable) | 475 mm × 465 mm |
| Noise Level | ≤55 dB |
| Loading Height | 345 mm |
| Voltage | AC 220 V ±10%, 50/60 Hz |
| Power Consumption | 700 W |
| Fuse | 15 A |
| Dimensions (L×W×H) | 800 × 715 × 1738 mm |
| Weight | 345 kg |
Features
- Durable construction
- Safety features
- Low noise operation
- 3-eccentric shaft linkage design
- Multi-segment programming
Applications
- CO2 Shaking Incubator FM-CSI-C107 used for bacterial culture, fermentation, hybridization, biochemical reactions, enzymes, and components of textile research.
