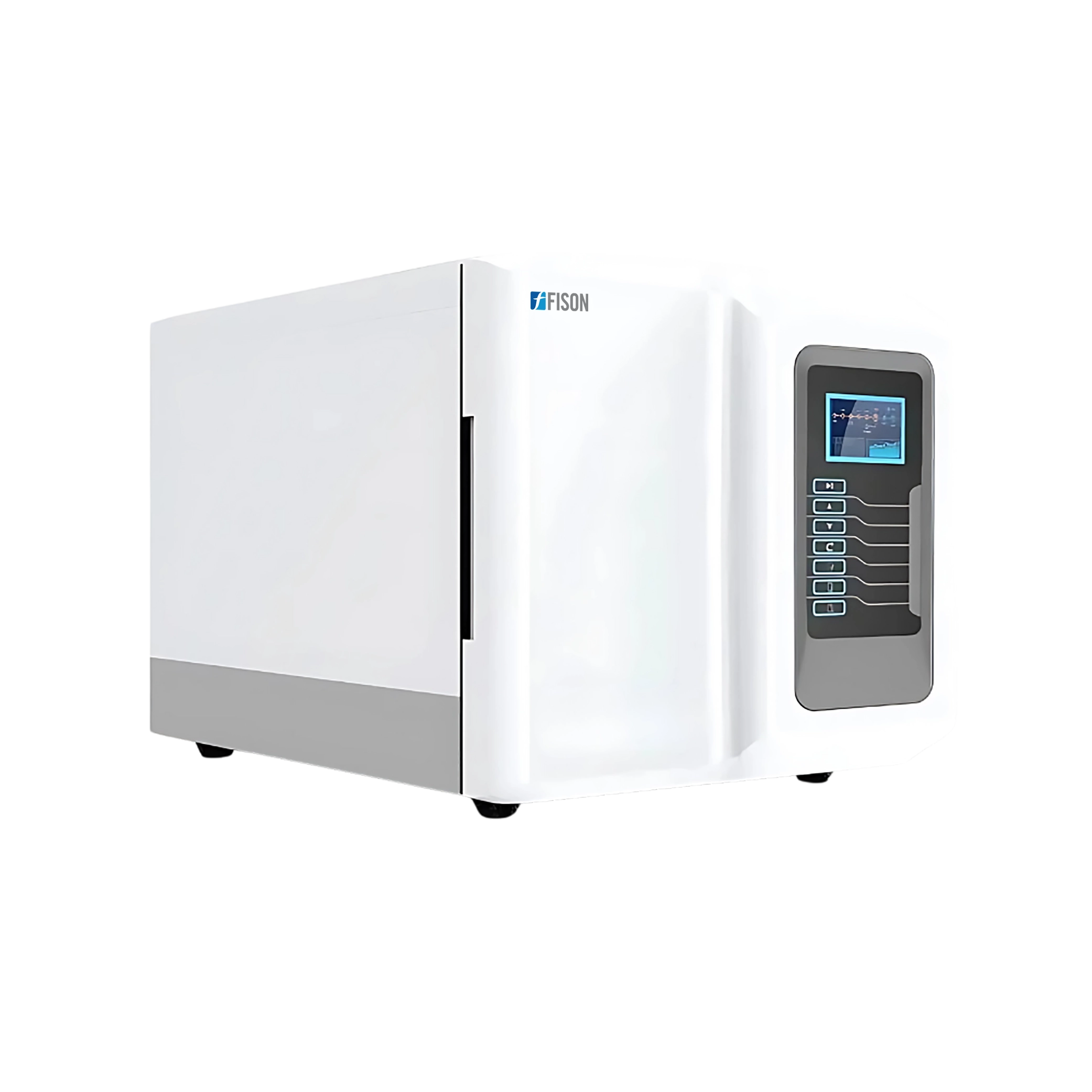

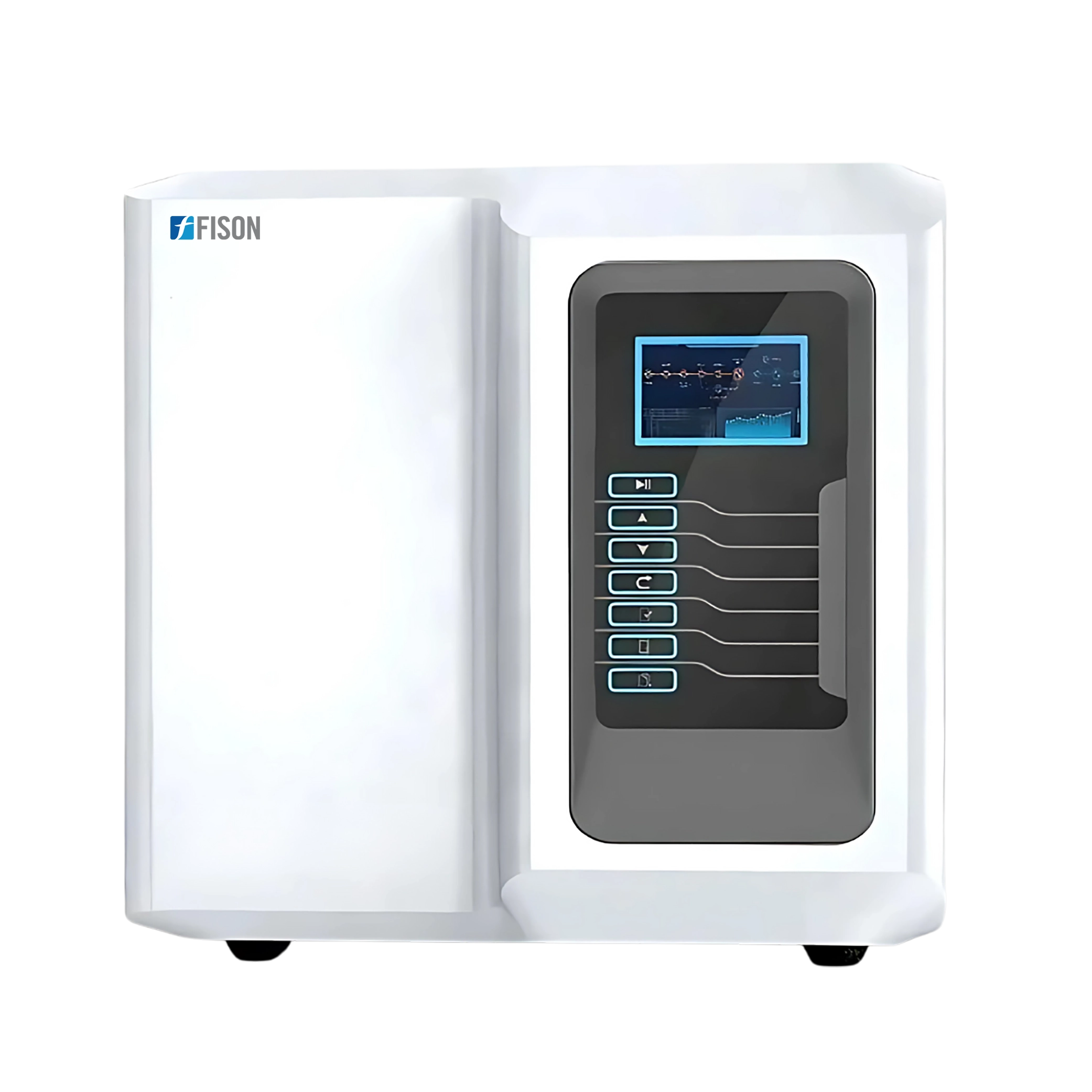

Damp Heat Quick Sterilizer FM-DSP-A102
Damp Heat Quick Sterilizer FM-DSP-A102 is a bench top microcomputer controlled autoclave with the sterilization capacity of 45 L. This class B unit features 135°C and 122°C sterilizing temperature (adjustable) with the sterilization time of 36 min and 56 min respectively which includes preheating, vacuum, sterilization and drying time. It features with -80 kPa to 200 kPa hydraulic pressure and an alarm system to indicate low and high temperature. Unit comes with high grade durable 304 stainless steel material and equipped with LED touch screen panel to monitor operation steps and running state.
Specifications
| Type | Pulsating vacuum type (Full automatic) |
| Cabinet style | Desktop |
| Sterilizing chamber Capacity | 45 L |
| Category | Class B |
| Ambient temperature | 0°C to 50°C |
| Atmospheric humidity | ≥80% RH |
| Atmospheric pressure | 60 to 106 kPa |
| Working temperature | 122°C and 135°C (adjustable) |
| Temperature accuracy | ±0.1°C |
| 135°C Sterilization time | 36 min (Preheating + vacuum + sterilization + drying) |
| 122°C Sterilization time | 56 min (Preheating + vacuum + sterilization + drying) |
| Working pressure | -80 kPa to 200 kPa |
| Timer range | 1 to 9999 sec |
| Display | LED display with touch buttons |
| Chamber construction material | 304 Stainless steel |
| Safety door thickness | ≥15 mm |
| Sterilizing plate | Two-layer stainless steel tray |
| Power | 3.5 kW |
| Voltage | AC 220 V, 50 Hz |
| Sterilization room dimension (W × D × H) | 319 x 615 mm |
| Outer tank dimension (W × D × H) | 880 x 570 x 580 mm |
| Packaging dimension (W × D × H) | 1050 x 700 x 800 mm |
| Net weight | 105 kg |
| Gross weight | 140 kg |
Features
- Microcomputer controlled system
- Sterilization temperature is 122°C and 135°C (adjustable)
- Hydraulic pressure is -80 kPa to 200 kPa
- Three pulse pre-vacuum and deep drying function
- LED display with touch buttons for the ease of accessibility
- Two-layer stainless steel tray for loading articles
- Sterilization room is made-up of 304 Stainless steel with safety door
- Silicone made sealing ring and screw thread insert ensures safe use and long service life
- Automatic power cutoff in case temperature and pressure exceeds the desired limit
- Alarm system to indicate high and low temperature
- Anti-explosion and fire resistance heating system
- Complies with international standards such as ISO13485 and CE certificate
Applications
- Used in the ophthalmology, orthopedics and gynecologic departments, hospitals, laboratory and beauty salon for the rapid sterilization of metal instruments, hollow instruments, glassware, culture medium, silica gel tube, operation bag and instrument box.
