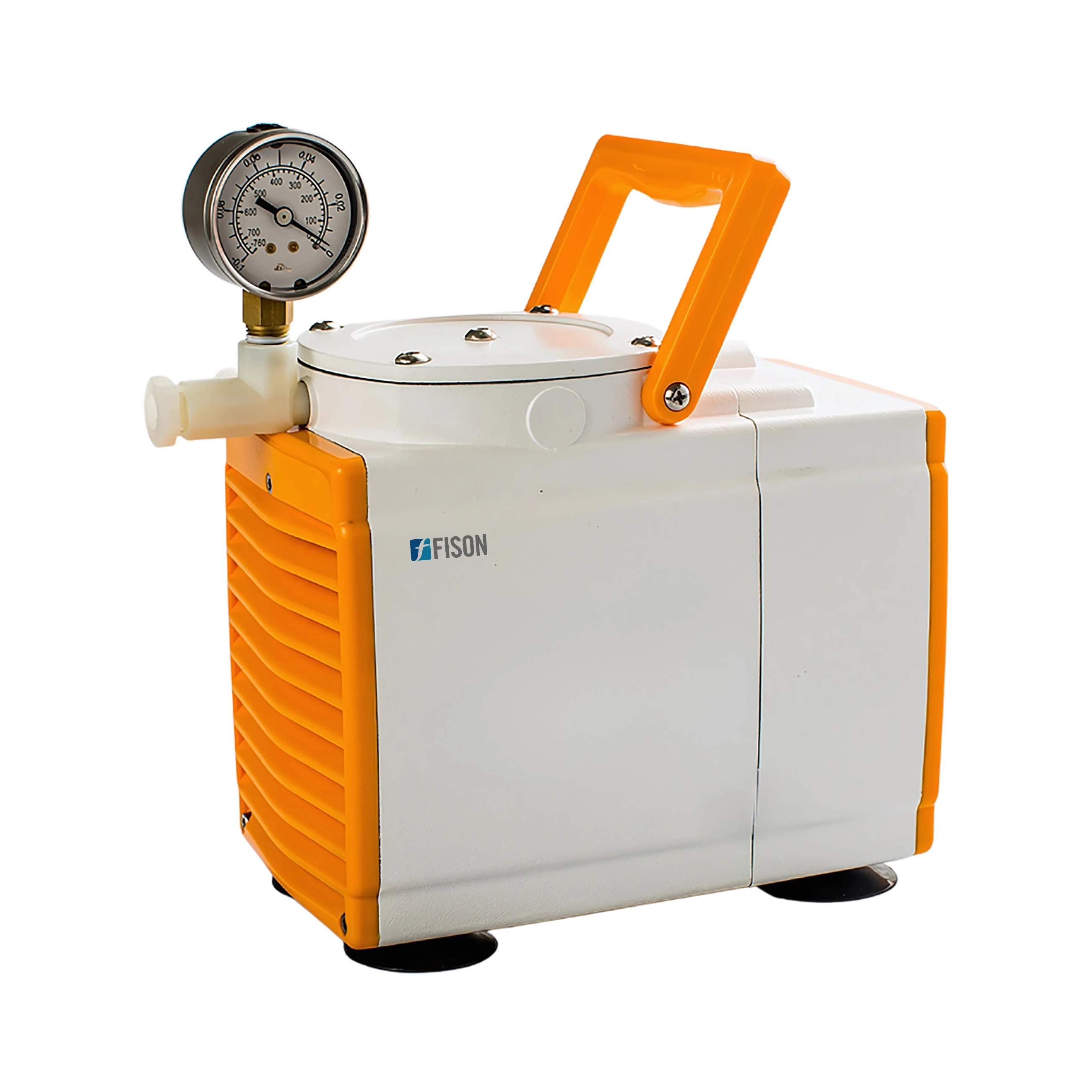

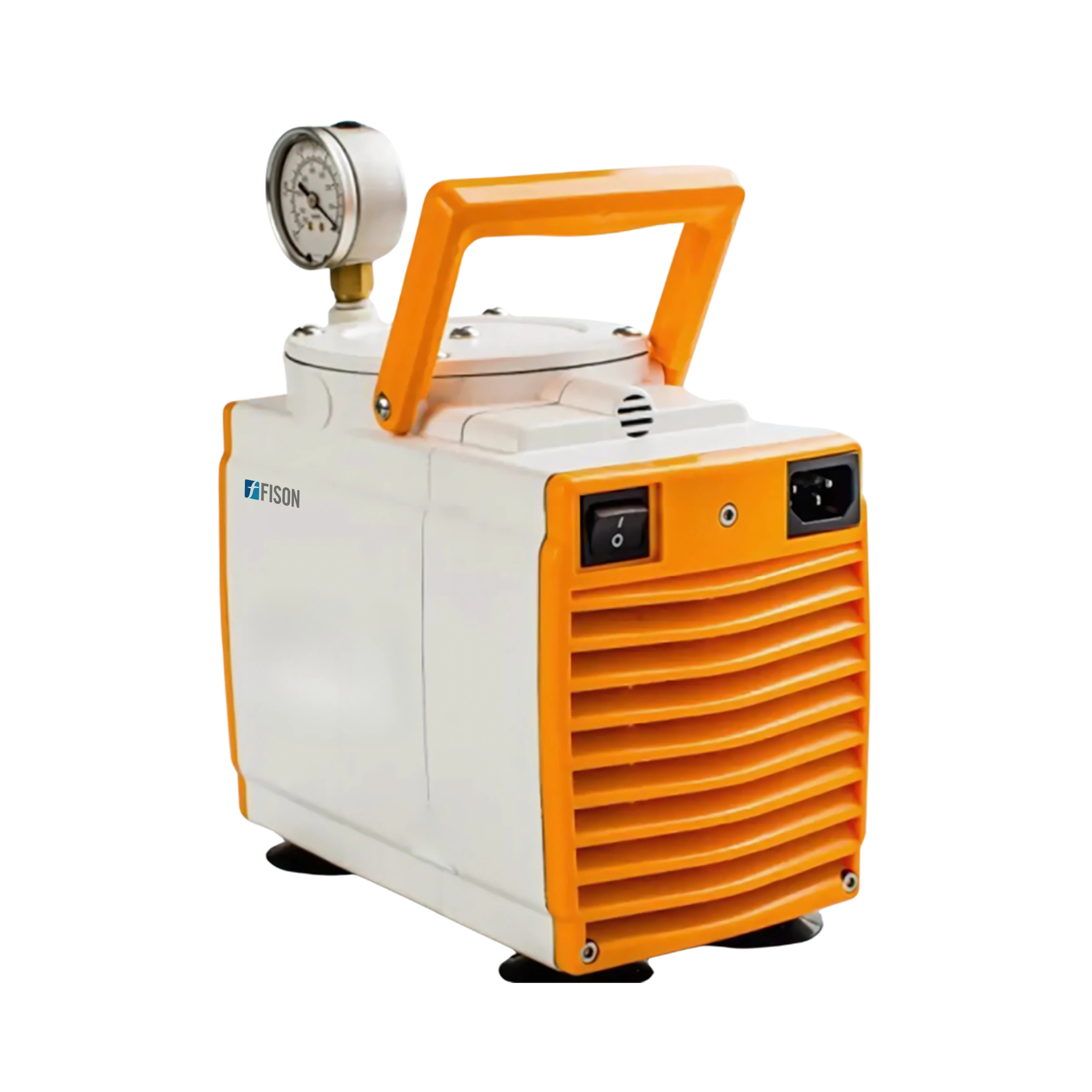

Diaphragm Vacuum Pump FM-DVP-A100 offers an evacuation speed of 20 L/min, providing efficient performance. It operates within a temperature range of 7 to 40 ℃, delivering optimal results. Its high-pressure vacuum of ≥0.08 MPa / 200 mbar delivers powerful operation. Designed with an automatic cooling exhaust system, it supports continuous use. Our diaphragm vacuum pump is built with a corrosion-resistant design for enhanced durability and long-lasting performance.
$1,562.00
| Speed of Evacuation | 20 L/min |
| Ultimate Pressure Vacuum | ≥0.08 MPa / 200 mbar |
| Temperature of Working Environment | 7 to 40 ℃ |
| Inlet (mm) | Φ6 |
| Outlet (mm) | Silencer |
| Pump Head | 1 |
| Temperature of Body | <55 ℃ |
| Diaphragm | NBR |
| Valves | NBR |
| Noise Level | <60 dB |
| Motor Power | 160 W |
| Power Supply | 220 Vac / 50 Hz or 110 Vac / 60 Hz |
| Product Dimension | 21 cm × 12 cm × 23.5 cm |
| Packing Dimension | 35 cm × 21 cm × 33 cm |
| Net Weight | 7.5 kg |
| Gross Weight | 8.5 kg |
1: What is the Diaphragm Vacuum Pump FM-DVP-A100 used for?
The Diaphragm Vacuum Pump FM-DVP-A100 is used in medical product analysis, chemical engineering, biochemical pharmacy, food testing, and forensic investigations.
2: What is the evacuation speed of the Diaphragm Vacuum Pump FM-DVP-A100?
The Diaphragm Vacuum Pump FM-DVP-A100 provides an evacuation speed of 20 L/min for efficient operation.
3: What is the ultimate pressure of the Diaphragm Vacuum Pump FM-DVP-A100?
The Diaphragm Vacuum Pump FM-DVP-A100 delivers a high-pressure vacuum of ?0.08 MPa / 200 mbar.
4: What is the operating temperature range of the Diaphragm Vacuum Pump FM-DVP-A100?
The Diaphragm Vacuum Pump FM-DVP-A100 operates optimally within 7? to 40?.
5: Is the Diaphragm Vacuum Pump FM-DVP-A100 suitable for continuous use?
Yes, the Diaphragm Vacuum Pump FM-DVP-A100 features an automatic cooling exhaust system for continuous operation.
6: What materials are used in the Diaphragm Vacuum Pump FM-DVP-A100?
The Diaphragm Vacuum Pump FM-DVP-A100 uses corrosion-resistant materials, including NBR diaphragms and valves, and a PTFE antiseptic pump head.
7: How noisy is the Diaphragm Vacuum Pump FM-DVP-A100?
The Diaphragm Vacuum Pump FM-DVP-A100 operates at a low noise level of <60 dB.
8: What is the motor power and power supply of the Diaphragm Vacuum Pump FM-DVP-A100?
The Diaphragm Vacuum Pump FM-DVP-A100 uses a 160 W motor and supports 220 V/50 Hz or 110 V/60 Hz power supply.
9: Is the Diaphragm Vacuum Pump FM-DVP-A100 portable?
Yes, the Diaphragm Vacuum Pump FM-DVP-A100 is compact and lightweight, weighing 7.5 kg for easy portability.
10: What safety and efficiency features does the Diaphragm Vacuum Pump FM-DVP-A100 have?
The Diaphragm Vacuum Pump FM-DVP-A100 includes imported bearings, low noise operation, high efficiency, and a corrosion-resistant design.
Fison Diaphragm Vacuum Pump delivers high-performance, oil-free vacuum pumping for precision laboratory and industrial applications. They operate at high speed and generate a powerful vacuum, enabling precise performance. These maintain an optimal temperature, delivering consistent results. Designed with imported bearings, they provide smooth operation and maintain low noise levels for a comfortable working environment. The automatic cooling exhaust system supports continuous use. Our vacuum pump uses durable, corrosion-resistant materials, providing long-lasting reliability.
