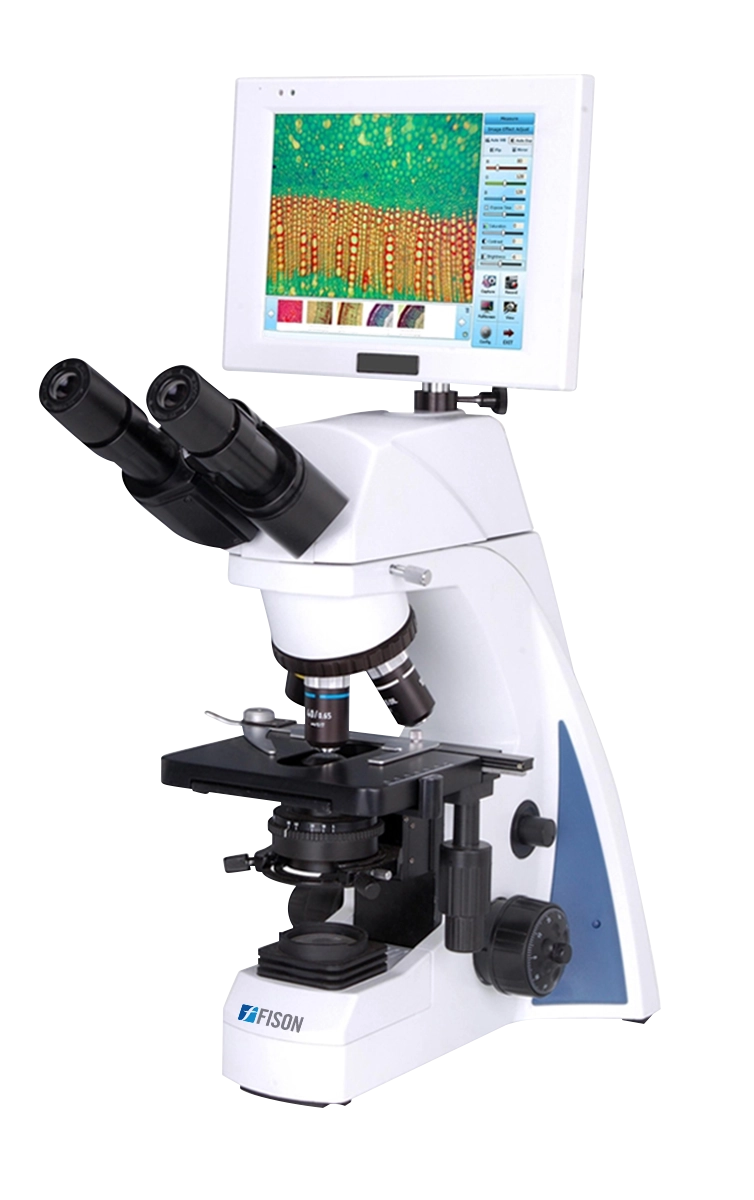

Digital Microscope FM-DM-A201
Digital Microscope FM-DM-A201 is equipped with 8 inch TFT touch LCD screen and easy to use software to view and study the specimen without straining the eyes. Illumination is provided by S-LED system with adjustable brightness. Sharp and clear images of the specimen are obtained using coarse and fine focusing adjustment.
Specifications
| Optical system | Infinite optical system | ||
| Viewing head | Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm | ||
| LCD Touch pad Screen | 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip | ||
| Digital system software |
|
||
| Eyepiece | Wide field eyepiece WF 10X/ 20 mm with Diopter adjustment | ||
| Objective | Infinitive Plan Achromatic Objectives 4×, 10×, 40×, 100× | ||
| Nosepiece | Quadruple nosepiece | ||
| Stage | Double layer mechanical stage: 140 × 140 mm, Travel stage: 75 × 75 mm | ||
| Condenser | Sliding-in centerable condenser N.A. 1.25 | ||
| Focusing system | Coaxial Coarse and Fine focusing Adjustment, Fine Division 0.002 mm, Coarse Stroke 37.7 mm per Rotation, Fine Stroke 0.2 mm per Rotation, Moving Range 20 mm | ||
| Illumination | S-LED Illumination, brightness adjustable | ||
| Power supply | 220 V, 50 Hz | ||
| Dimension without LCD Pad | 422 × 277 × 200 mm | ||
| Dimension with LCD Pad | 540 × 279 × 200 mm | ||
| Weight | 12 kg |
Features
- Infinite optical system
- 8 Inch TFT Touch LCD screen, 5.0 MP, CMOS chip
- Infinitive Plan Achromatic Objectives
- Wide field eyepiece WF 10X/ 20 mm with Diopter adjustment
- S-LED as illumination source
- User friendly operation
Applications
- Used in the field of bacteriology, cytology, botany, medical science, tissue culture and others to study details, even quantitative analysis of the specimen on large LCD screen.
Accessories Optional
Accessories No. Name 1 Eyepiece WF 10X with pointer 2 Eyepiece WF 10X with micrometer 3 Eyepiece WF 20X 4 Backward Quintuple Nosepiece 5 Infinite Plan Achromatic Objective 20X 6 Infinite Plan Achromatic Objective 60X 7 Kohler Illumination 8 Dark Field Condenser NA 0.7 to 0.9 (Dry) 9 Dark Field Condenser NA 1.25 to 1.36 (Oil) 10 Sliding Phase Contrast Kit 11 Turret Phase Contrast Kit 12 Simple Polarization Set: Polarizer and Analyzer 13 LED Epi-Fluorescent attachment FL-LED 14 Epi-Fluorescent attachment X Y-2 15 1X C-Mount 16 0.5X C-Mount
LCD Tablet Details
Hardware CPU RK3288 Quad-core 1.8 Hz Display High resolution (2048 × 1536) color LCD with touch screen Storage RAM 2 GB DDR3, ROM 8 GB, 32 GB extension storage Camera 5 MP color cameras Network W i-Fi, Bluetooth Interface USB 2.0 (OTG) ×2, Support USB keyboard mouse TF card DC 12 V power input Audio Mini HDMI output Software Operating system Android 5.1 Software Built-in camera software, support take photos, videos and measurement
Built In Cameras Details
Sensor size 1/ 2.5 inch (4:3) Effective imaging size 5.70 (H) × 4.28 (Y) 7.13 mm (diagonal) Effective pixel 2592 (H) × 1944 (V) Pixel size 2.2 um × 2.2 um Dynamic range 66.5 dB SNR (maximum) 40.5 dB A/D conversion resolution 12-bit, on-chip Sensitivity 0.53 V/ Lux-sec (550 nm) Frame rate 2048 × 1536 @15 fps, 1024 × 768@30 fps Exposure range and manner Electronic rolling shutter (ERS) , automatic White balance Manual/ Automatic
