Double Beam UV Visible Spectrophotometer FM-UVS-C200 Double Beam UV Visible Spectrophotometer FM-UVS-C200 Double Beam UV Visible Spectrophotometer FM-UVS-C200

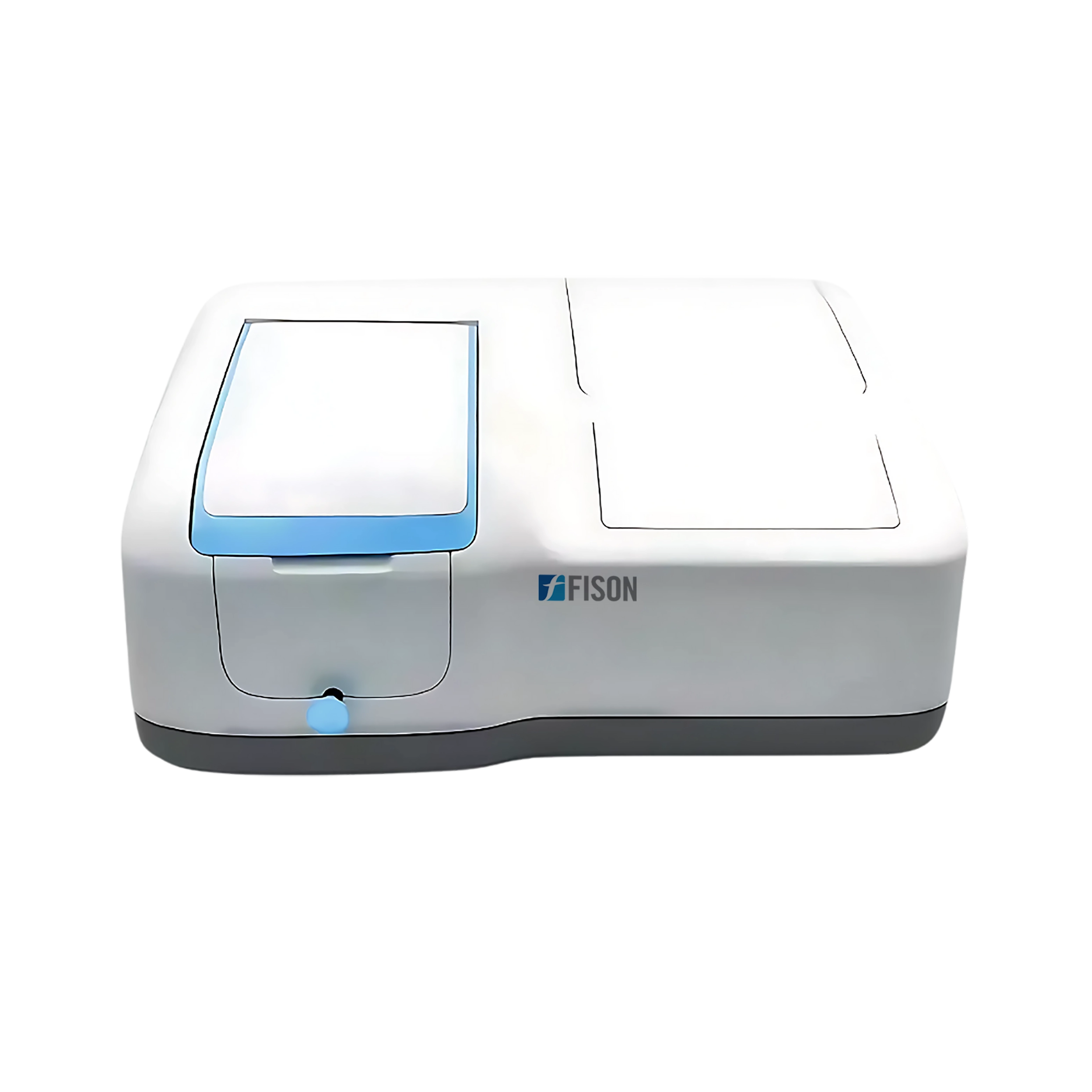

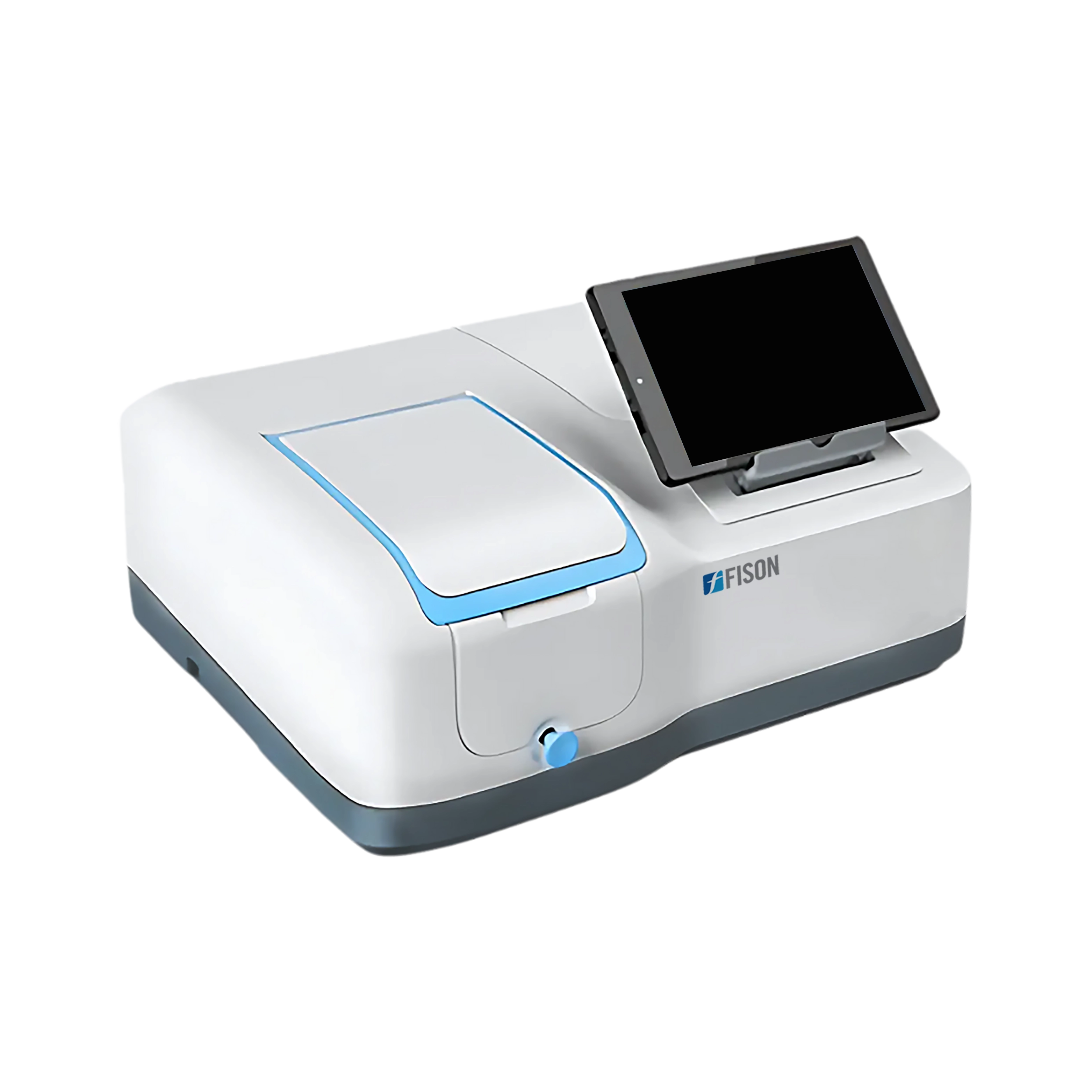

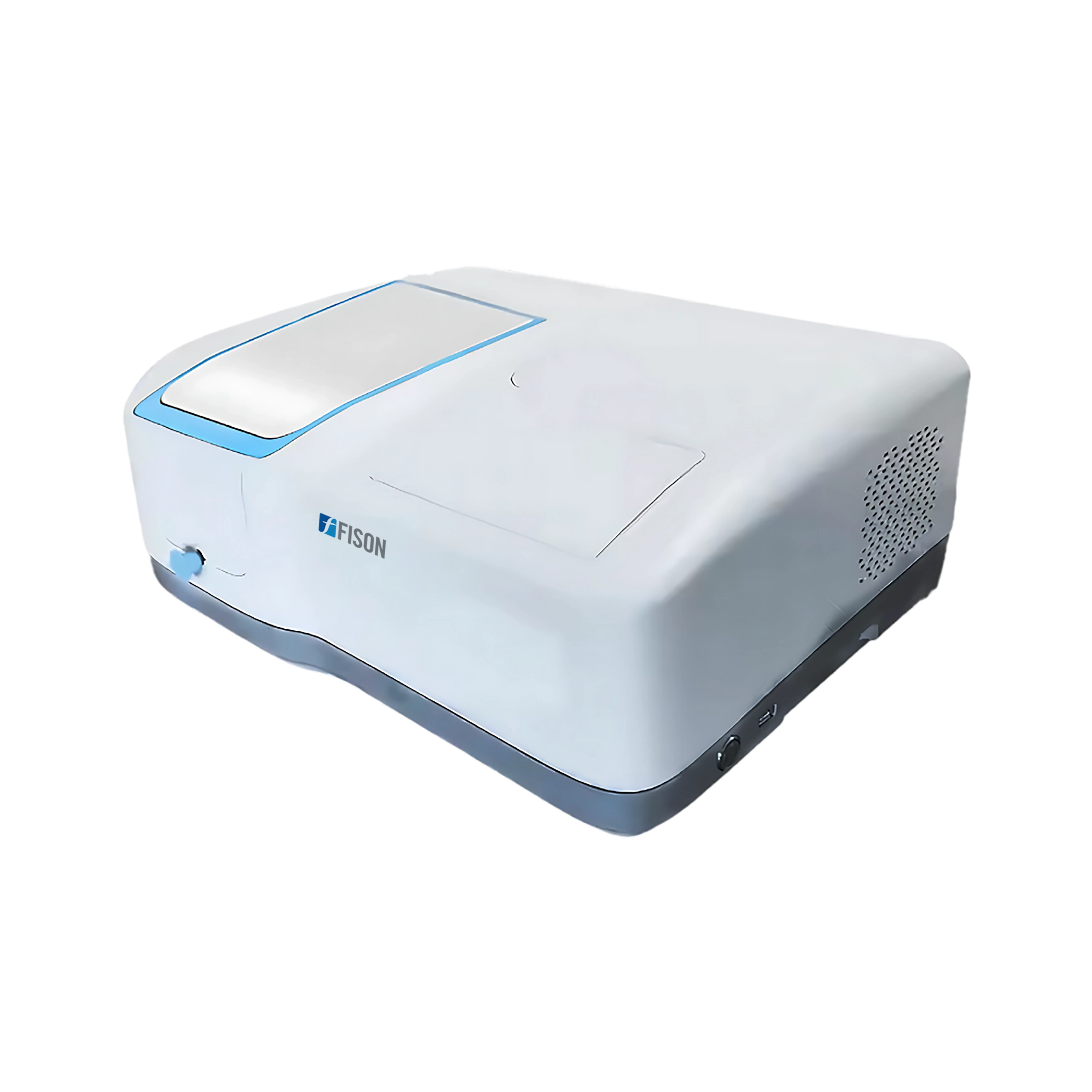

Double Beam UV Visible Spectrophotometer FM-UVS-C200

Fison Double Beam UV Visible Spectrophotometer FM-UVS-C200 features a wavelength range of 190 to 1100 nm, ±0.3 nm wavelength accuracy, and 1.8 nm spectral bandwidth for detailed UV-Vis measurements. Designed as a laboratory spectrophotometer, it includes a split beam optical system with a 1200 lines/mm grating, silicon photodiode detector, and tungsten and deuterium lamps for wide wavelength coverage. The unit offers 64 GB storage, Bluetooth connectivity, and multiple interfaces, including USB, Wi-Fi, SD reader, and HDMI. It supports photometry, multi-wavelength analysis, kinetics, time scanning, quantitation, spectrum scanning, and DNA/protein analysis functions.

$6,612.00

Download Catalog

Double Beam UV Visible Spectrophotometer FM-UVS-C200 - Specifications

Wavelength range 190 to 1100 nm
Spectral bandwidth 1.8 nm
Optical system Split beam; 1200 lines/mm grating
Wavelength accuracy ±0.3 nm
Wavelength repeatability ≤0.2 nm
Wavelength resolution 0.1 nm
Wavelength swing speed 10000 nm/min
Wavelength scanning speed 20 to 3200 nm/min
Photometric range 0 to 400% T, -4 to 4 A, 0 to 9999 C
Photometric accuracy ±0.3% T or ±0.004 A @ 1 A
Photometric repeatability ±0.001 A (0 to 0.5 A), ±0.002 A (0.5 to 1 A), ±0.15 % T (0 to 100 % T)
Photometric Noise ≤0.0002 A @ 0 A, 500 nm，≤0.0004 A @ 1 A，500 nm，≤0.0008 A @ 2 A, 500 nm
Light source Tungsten lamp, Deuterium lamp
Stray light ≤0.05 %T@ 220nm & 360nm
Photometric Stability ≤0.0005A/h (500nm, 1 hours after preheating)
Display 8 inch TFT color touch screen
Baseline Flatness ±0.001A
Standard Sample holder 10 mm 4-cell manual holder
Detector Silicon photodiode
Function Photometry, Multi Wavelength, Kinetics, Time Scanning, Quantitation, Spectrum Scanning, DNA/Protein analysis
Storage 64 GB
Interface USB-A (USB memory/USB printer), USB-B (computer), Wi-Fi, SD Reader, Bluetooth, HDMI
PC software Yes
Languages 10 Languages; Can Be Switched (English, German, French, Spanish, Portuguese, Italian, Russian, Simplified Chinese, Japanese, Korean)
Power supply AC 100 to 240 V，50/60 Hz，140 W
Dimensions (W×D×H) 456×360×185 mm
Weight 11 kg

Double Beam UV Visible Spectrophotometer FM-UVS-C200 - Features

  • Features a compact tabletop split double beam UV-Visible spectrophotometer design for efficient laboratory use
  • Equipped with a silicon photodiode detector and a wavelength range of 190 nm to 1100 nm
  • Uses tungsten and deuterium lamps as light sources with a dismountable lamp room cover for convenient maintenance
  • Includes an antirust-treated 4-cell manual holder with a special leak hole in the sample compartment
  • Provides 64 GB storage capacity with an 8-inch TFT color touchscreen for easy operation
  • Supports wireless connection with a tablet PC featuring a Windows operating system
  • Offers optional software support with GLP/GMP compliance and traceable data management
  • Includes multiple connectivity options such as USB-A, USB-B, Wi-Fi, SD reader, Bluetooth, and HDMI interfaces
  • Supports 10 selectable languages for user convenience
  • Provides multiple measurement modes, including photometry, multi-wavelength analysis, kinetics, time scanning, quantitation, spectrum scanning, and DNA/protein analysis


Double Beam UV Visible Spectrophotometer FM-UVS-C200 - Applications

Double Beam UV Visible Spectrophotometer FM-UVS-C200 is used for band gap analysis, optical coating and thin film characterization, quantitative analysis, kinetics studies, wavelength scanning, and DNA/protein analysis in clinical and research laboratory workflows.

Alternative Models Of Double Beam UV Visible Spectrophotometer

Fison Double Beam UV Visible Spectrophotometer offers a wavelength range of 190 to 1100 nm, wavelength accuracy up to ±0.5 nm, and adjustable spectral bandwidth options from 0.5 to 5 nm. Designed as a lab spectrophotometer, it features a double-beam optical system that supports stable absorbance and transmittance measurements with reduced measurement variations. USB and printer connectivity enable efficient data transfer and reporting, while advanced optical components provide consistent spectral analysis performance.
