Double Beam UV Visible Spectrophotometer FM-UVS-C201 Double Beam UV Visible Spectrophotometer FM-UVS-C201 Double Beam UV Visible Spectrophotometer FM-UVS-C201

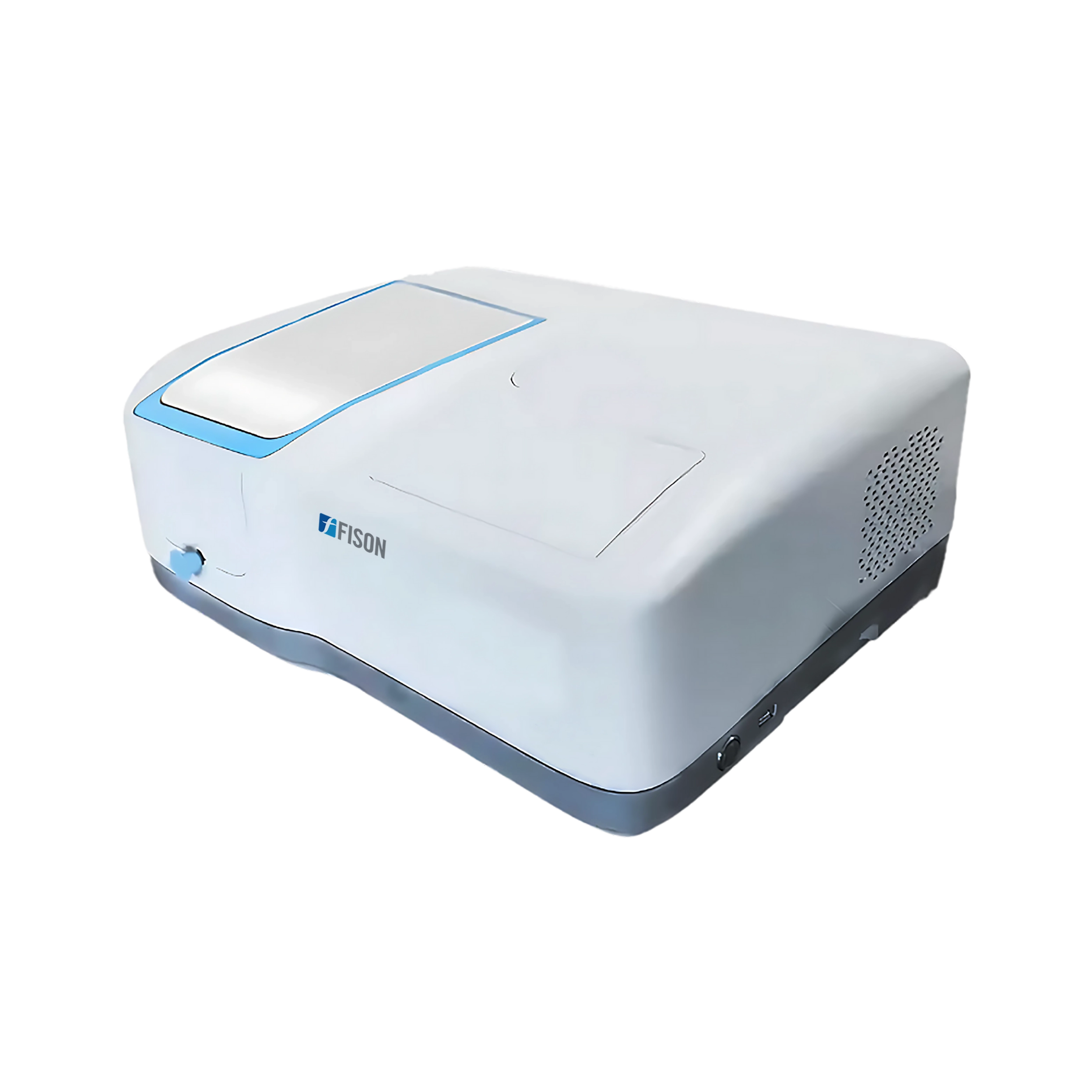

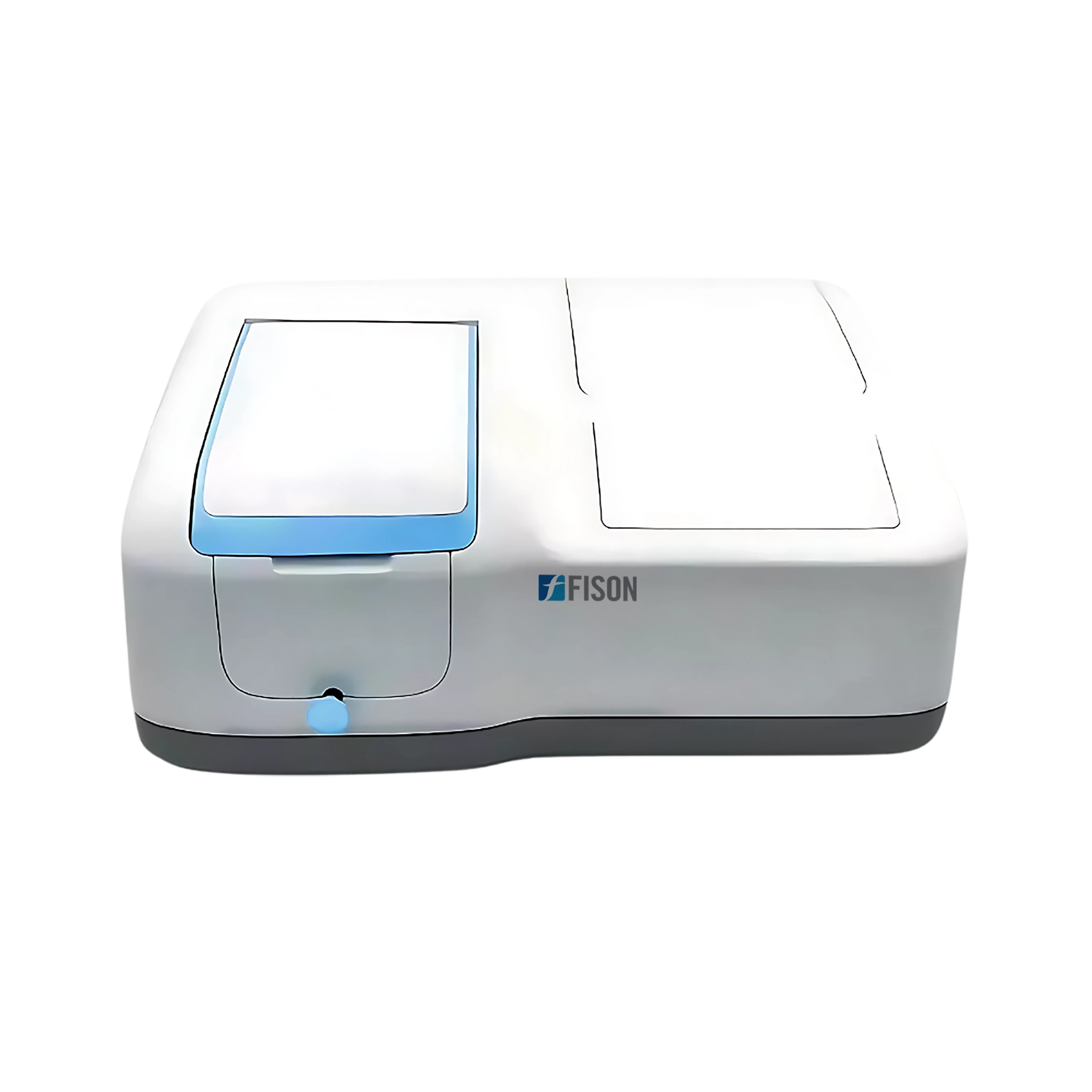

Double Beam UV Visible Spectrophotometer FM-UVS-C201

Fison Double Beam UV Visible Spectrophotometer FM-UVS-C201 features a 190 to 1100 nm wavelength range, ±0.3 nm accuracy, and 1 nm spectral bandwidth for UV-Vis analysis. This UV spectrophotometer includes a split beam optical system, 1200 lines/mm grating, silicon photodiode detector, and tungsten/deuterium light sources for stable measurements. It provides 64 GB storage, multiple connectivity options, and functions such as photometry, kinetics, spectrum scanning, and DNA/protein analysis.

$7,175.00

Download Catalog

Double Beam UV Visible Spectrophotometer FM-UVS-C201 - Specifications

Wavelength range 190 to 1100 nm
Spectral bandwidth 1 nm
Optical system Split beam; 1200 lines/mm grating
Wavelength accuracy ±0.3 nm
Wavelength repeatability ≤0.2 nm
Wavelength resolution 0.1 nm
Wavelength swing speed 10000 nm/min
Wavelength scanning speed 20 to 3200 nm/min
Photometric range 0 to 400% T, -4 to 4 A, 0 to 9999 C
Photometric accuracy ±0.3% T or ±0.004 A @ 1 A
Photometric repeatability ±0.001 A (0 to 0.5 A), ±0.002 A (0.5 to 1 A), ±0.15 % T (0 to 100 % T)
Photometric Noise ≤0.0002 A @ 0 A, 500 nm，≤0.0004 A @ 1 A，500 nm，≤0.0008 A @ 2 A, 500 nm
Light source Tungsten lamp, Deuterium lamp
Stray light ≤0.05 %T@ 220nm & 360nm
Photometric Stability ≤0.0005A/h (500nm, 1 hours after preheating)
Display 8 inch TFT color touch screen
Baseline Flatness ±0.001A
Standard Sample holder 10 mm 4-cell manual holder
Detector Silicon photodiode
Function Photometry, Multi Wavelength, Kinetics, Time Scanning, Quantitation, Spectrum Scanning, DNA/Protein analysis
Storage 64 GB
Interface USB-A (USB memory/USB printer), USB-B (computer), Wi-Fi, SD Reader, Bluetooth, HDMI
PC software Yes
Languages 10 Languages; Can Be Switched (English, German, French, Spanish, Portuguese, Italian, Russian, Simplified Chinese, Japanese, Korean)
Power supply AC 100 to 240 V，50/60 Hz，140 W
Dimensions (W×D×H) 456×360×185 mm
Weight 11 kg

Double Beam UV Visible Spectrophotometer FM-UVS-C201 - Features

  • Features a compact tabletop split double beam UV-Visible spectrophotometer design for efficient laboratory operation
  • Equipped with a silicon photodiode detector and a wavelength range of 190 nm to 1100 nm
  • Uses tungsten and deuterium lamps as light sources with a dismountable lamp room cover for easy maintenance
  • Includes an antirust-treated 4-cell manual holder with a special leak hole in the sample compartment
  • Provides 64 GB storage capacity and an 8-inch TFT color touchscreen for convenient operation

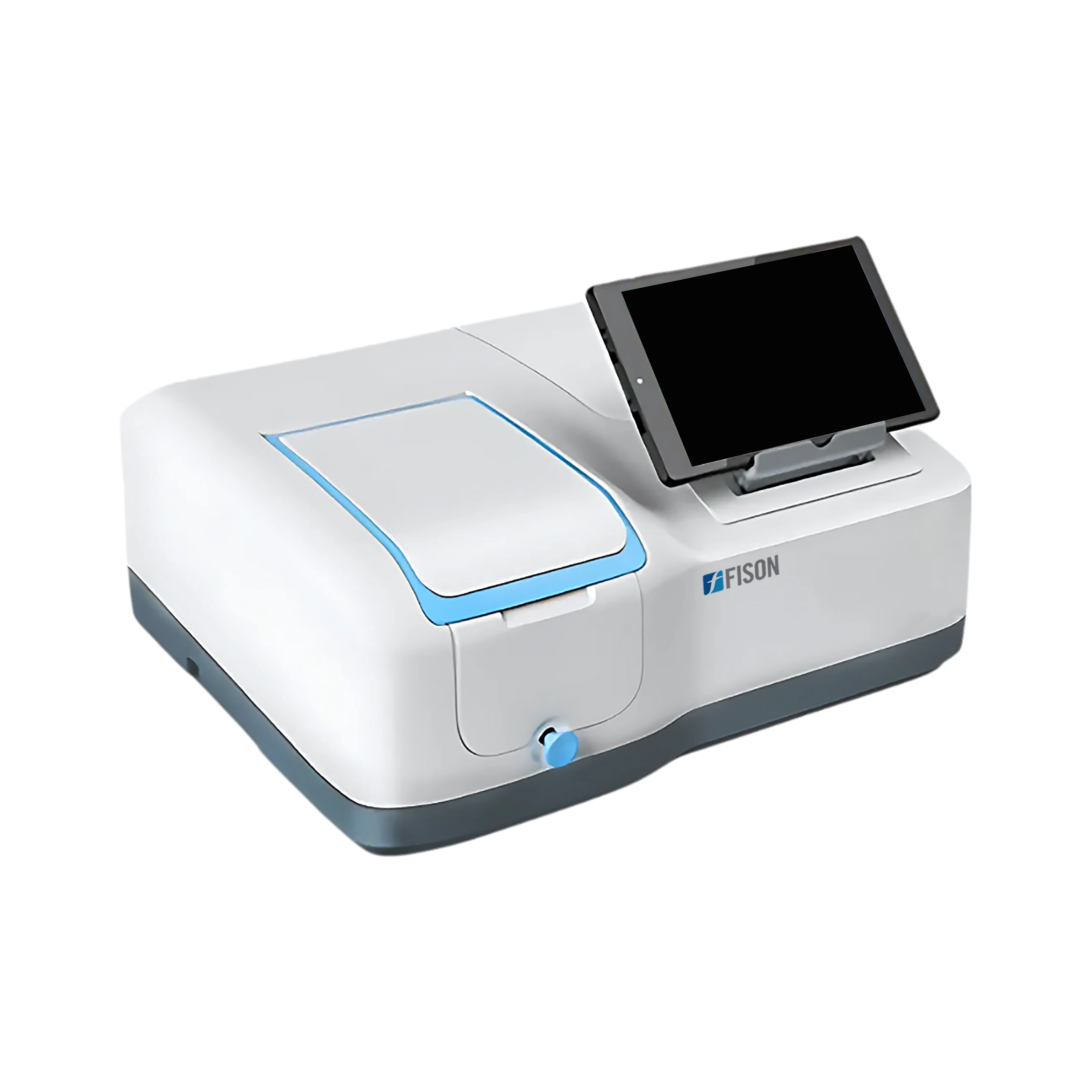

  • Supports wireless connection with a Windows-based tablet PC for enhanced control and data handling
  • Offers optional software with GLP/GMP support and traceable data management
  • Includes USB-A, USB-B, Wi-Fi, SD reader, Bluetooth, and HDMI connectivity options
  • Supports 10 selectable languages for user-friendly operation
  • Provides multiple measurement modes, including photometry, multi-wavelength analysis, kinetics, time scanning, quantitation, spectrum scanning, and DNA/protein analysis

Double Beam UV Visible Spectrophotometer FM-UVS-C201 - Applications

Double Beam UV Visible Spectrophotometer FM-UVS-C201 is used for band gap analysis, optical coating and thin film characterization, quantitative analysis, kinetics studies, wavelength scanning, and DNA/protein analysis in clinical and research laboratory workflows.

Alternative Models Of Double Beam UV Visible Spectrophotometer

Fison Double Beam UV Visible Spectrophotometer offers a wavelength range of 190 to 1100 nm, wavelength accuracy up to ±0.5 nm, and adjustable spectral bandwidth options from 0.5 to 5 nm. Designed as a lab spectrophotometer, it features a double-beam optical system that supports stable absorbance and transmittance measurements with reduced measurement variations. USB and printer connectivity enable efficient data transfer and reporting, while advanced optical components provide consistent spectral analysis performance.
