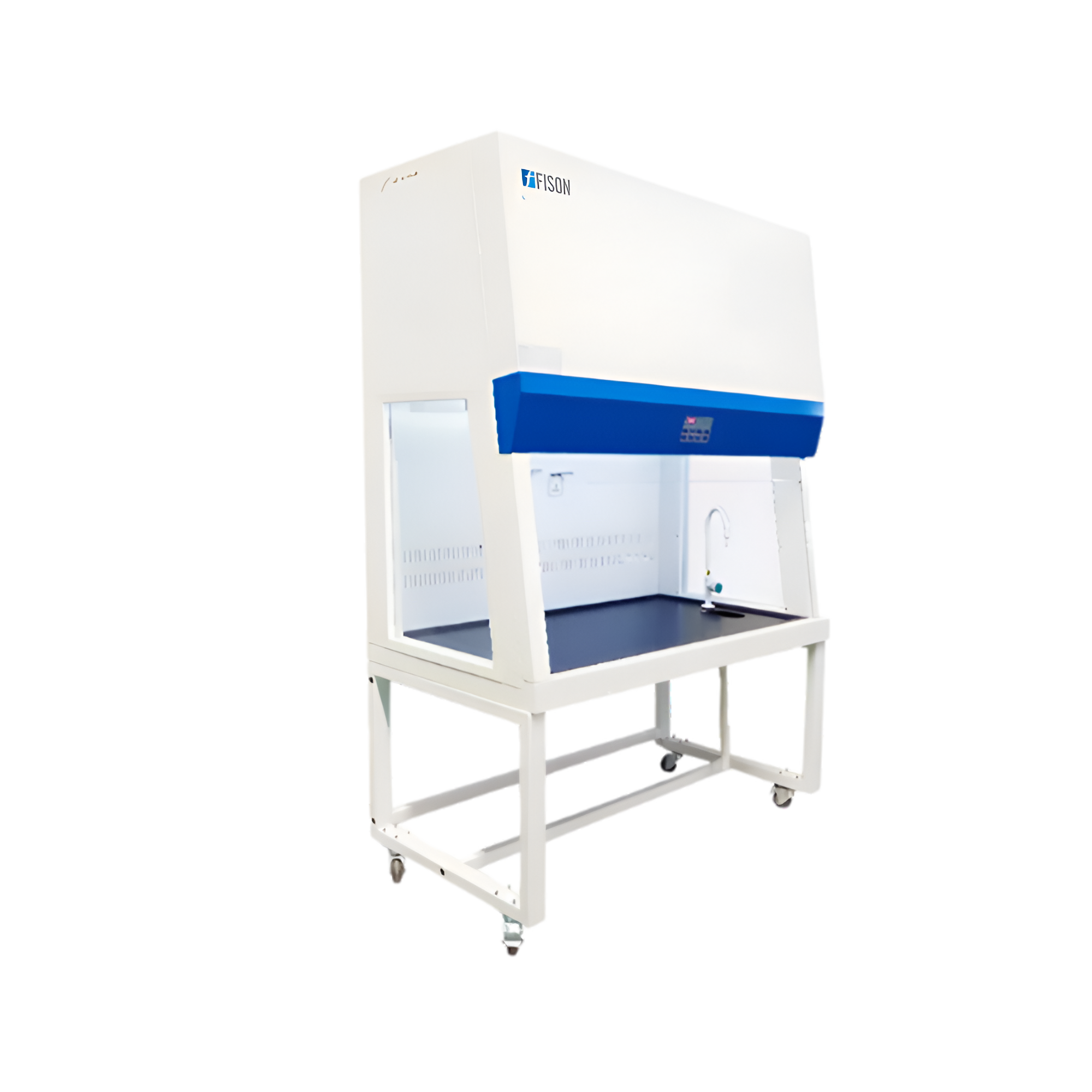

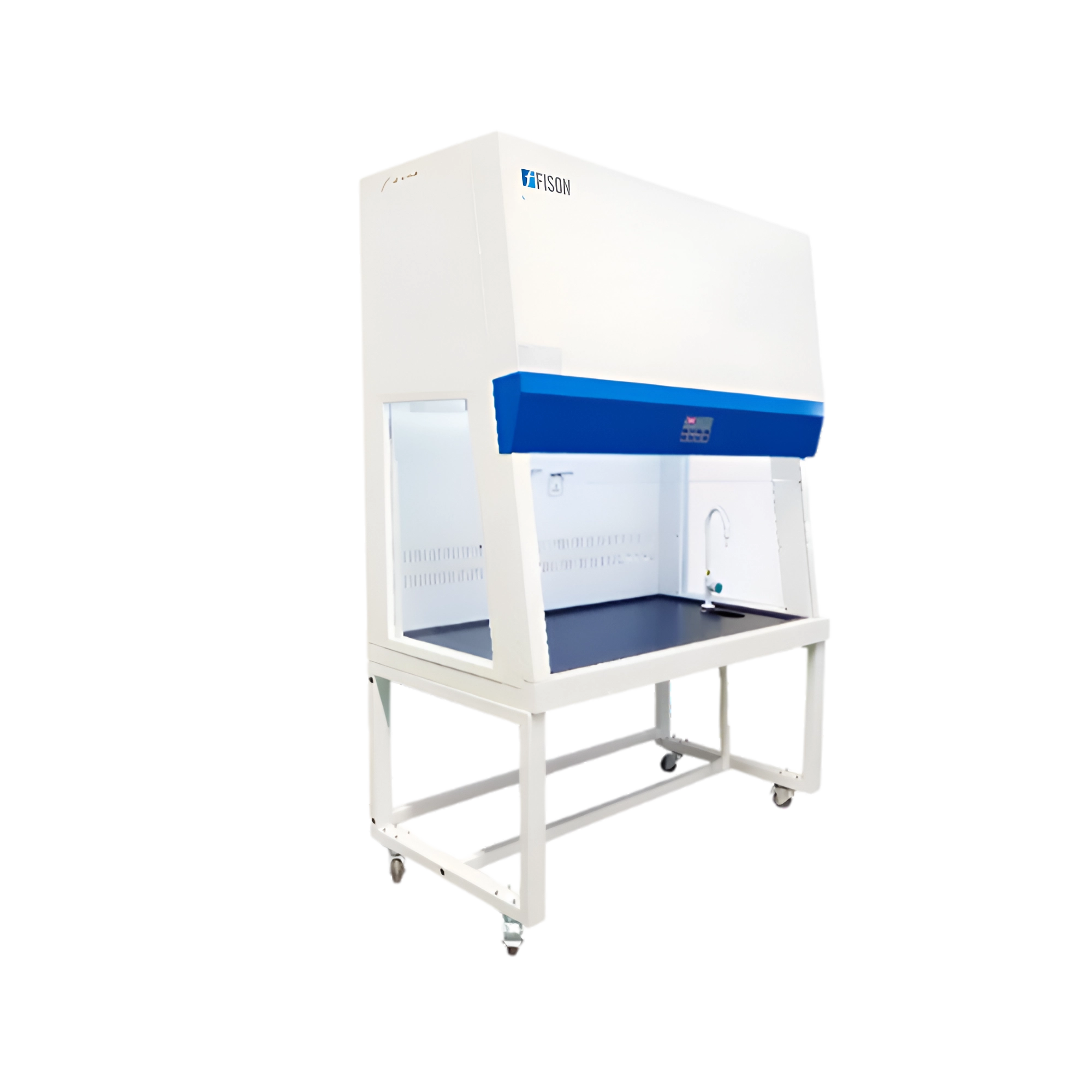

Ducted Fume Hood FM-PDF-A202
Ducted Fume Hood FM-PDF-A202 features a work surface height of 750mm, providing a comfortable working posture for the operator. This offers an adjustable airflow system, that calibrates air velocity to meet requirements. It has a high system exhaust volume, ensuring the removal of airborne contaminants. Our Ducted Fume Hood features a microprocessor control system for precise operation management.
$3,775.00
Specifications
| Work Surface Height | 750mm |
| Air Velocity | 0.3 to 0.8m/s |
| Noise | ≤ 68dB |
| LED Lamp | 16W×1 |
| UV Lamp | 30W |
| Blower | Built-in centrifugal blowers, speed adjustable with 9 levels |
| Front Window | Motorized, 5mm toughened glass, anti-UV |
| Material Exterior | Cold-rolled steel with anti-bacteria powder coating |
| Material Work Table | Chemical resistant phenolic resin |
| Waterproof Sockets | 2pcs |
| System Exhaust Volume | 990m³/h |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Power Consumption | 500W |
| Dimensions (W×D×H) | 1650×1120×1680mm |
| Internal Dimension (W×D×H) | 1380×730×745mm |
| External Dimension (W×D×H) | 1500×840×2150mm |
| Weight | 290kg |
Features
- Efficient UV sterilization lamp
- Motorized front glass window
- Reliable power memory function
- Durable acid-resistant construction
- Powerful filter purification system
Applications
- Ducted Fume Hood FM-PDF-A202 is ideal for laboratories handling hazardous chemicals, fumes, and toxic gases. It is commonly used in research, pharmaceutical, chemical, and industrial environments for safe ventilation and containment.
Accessories

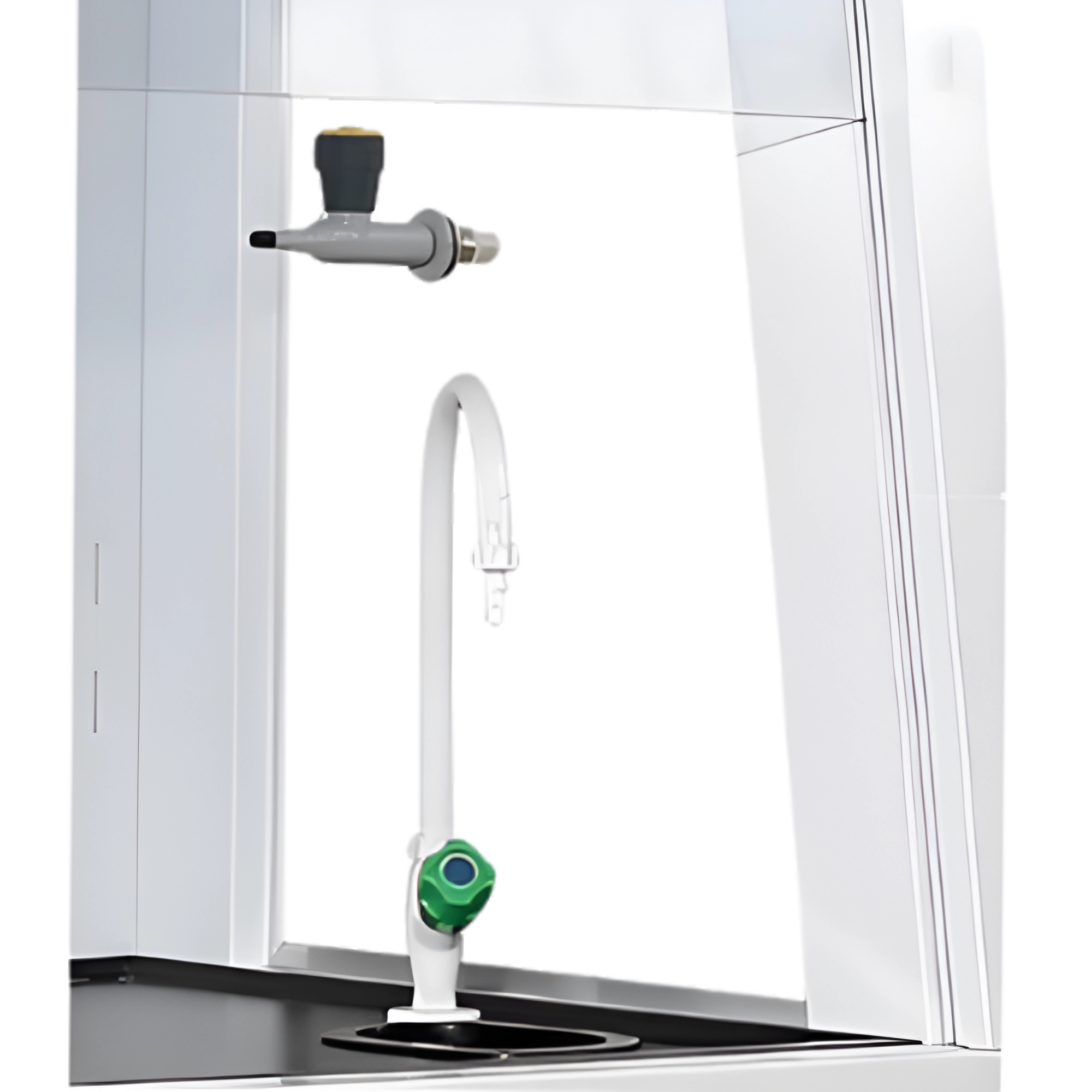

- Water tap
Gas tap
Water sink
Base stand
UV lamp×2, LED lamp
Socket, 4.3 meters exhaust duct
Active carbon filter
Footswitch
Accessories Optional
- HEPA filter
Activated carbon filters
