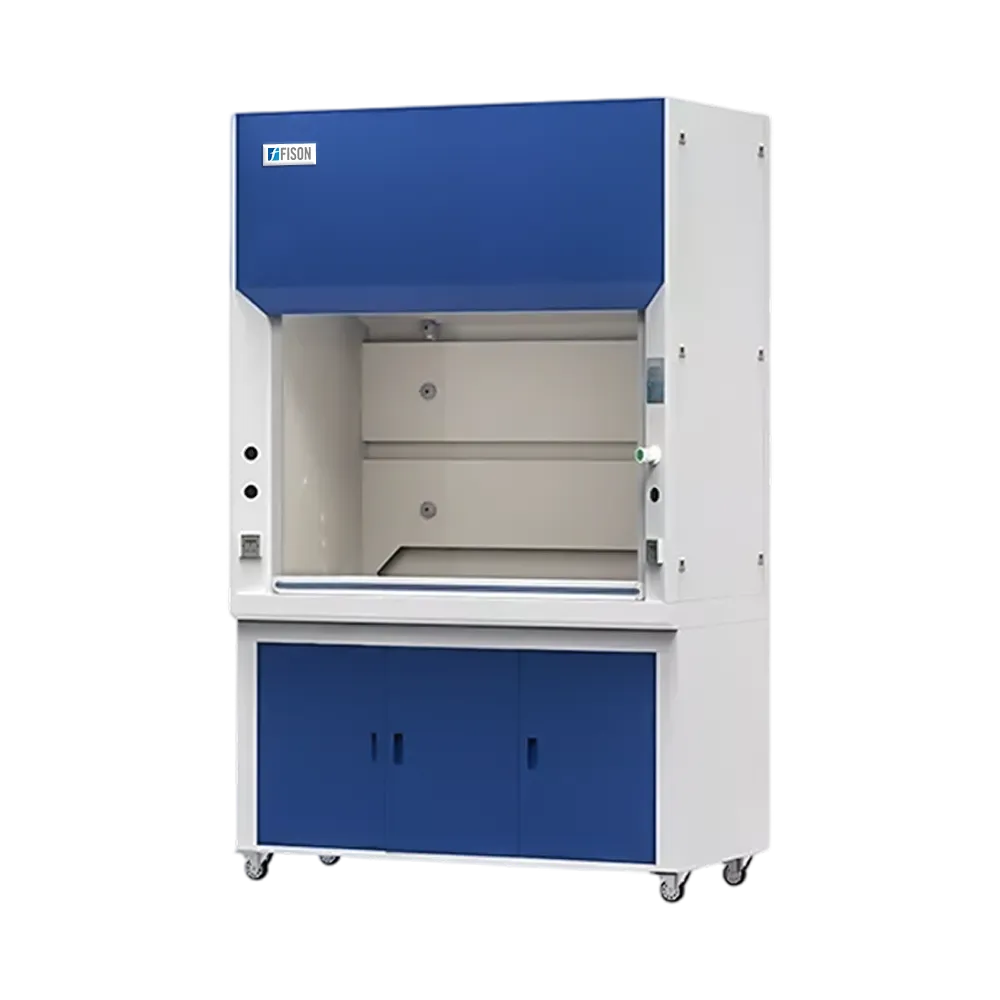

Ducted Fume Hood FM-PDF-A204 has an air exhaust volume of 930 m³/h. It features a built-in PP centrifugal blower for reliable exhaust performance.Its interior is made of a compact laminate board with good acid and alkali resistance. Its exterior is constructed from cold-rolled steel with an anti-bacterial powder coating. The front window is made of height-adjustable toughened glass for user convenience. Our Ducted fume hood is widely used in chemical, pharmaceutical, and research laboratories for safely handling hazardous fumes and vapors.
$3,312.00
| External Size (W×D×H) | 1500 × 800 × 2515 mm |
| Internal Size (W×D×H) | 1290 × 600 × 870 mm |
| Work Surface Height | 900 mm |
| Maximum Opening | 750 mm |
| Air Velocity | 0.3 – 0.8 m/s |
| System Exhaust Volume | 930 m³/h |
| Noise Level | ≤ 68 dB |
| Exhaust Duct | PVC, 5 m length, Φ300 mm |
| Pipe Strap | 2 pcs |
| LED Lamp | 40 W × 1 |
| Blower | Built-in PP Centrifugal Blower |
| Front Window | Manual, 5 mm Toughened Glass, Height Adjustable |
| Power Supply | 220 V ±10%, 50/60 Hz; 110 V ±10%, 60 Hz |
| Power Consumption | 500 W |
| Exterior Material | 1.0 mm Cold-Rolled Steel with Anti-Bacterial Powder Coating |
| Interior Material | Compact Laminate Board with Acid and Alkali Resistance |
| Worktable Material | Chemical-Resistant Phenolic Resin |
| Gross Weight | 335 Kg |
