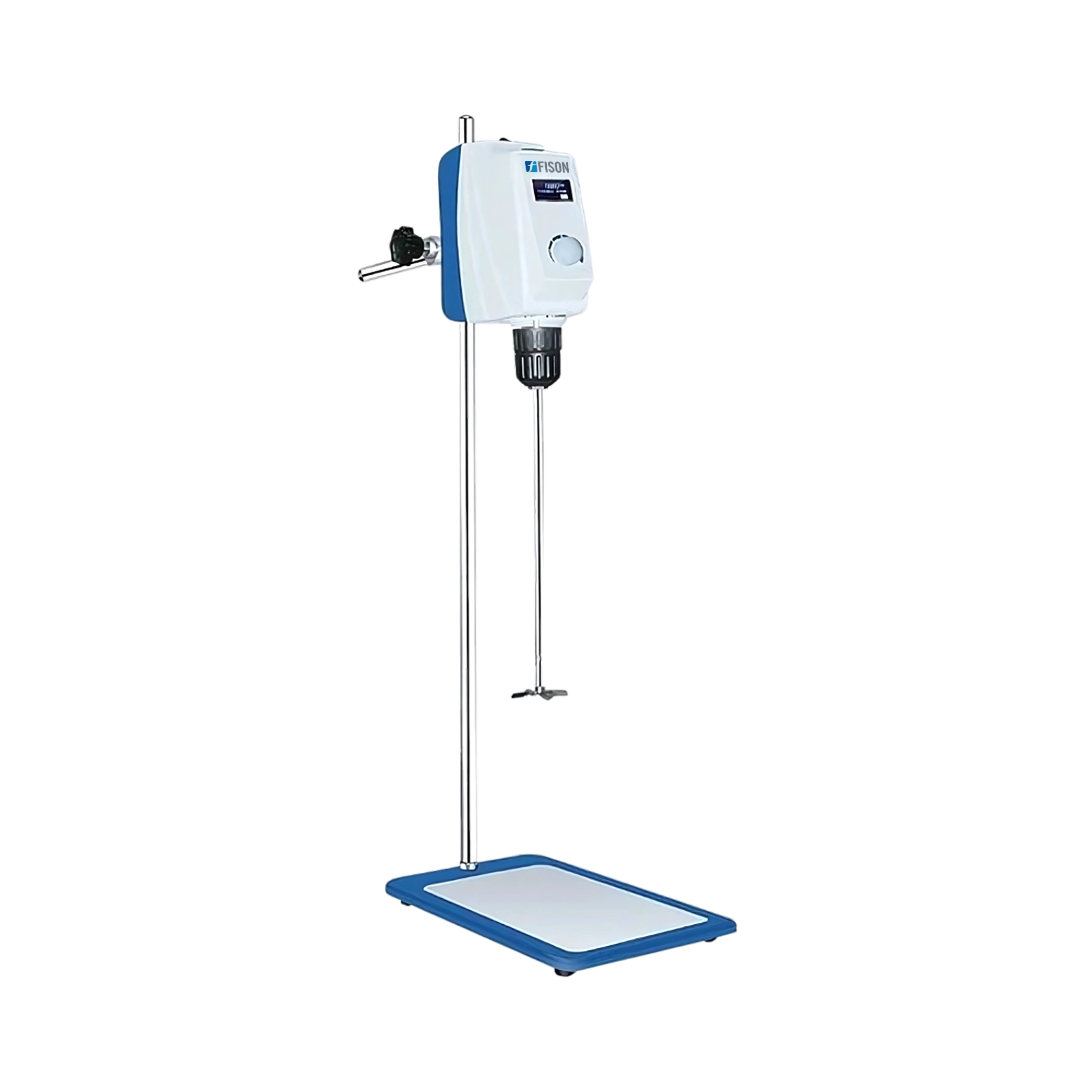

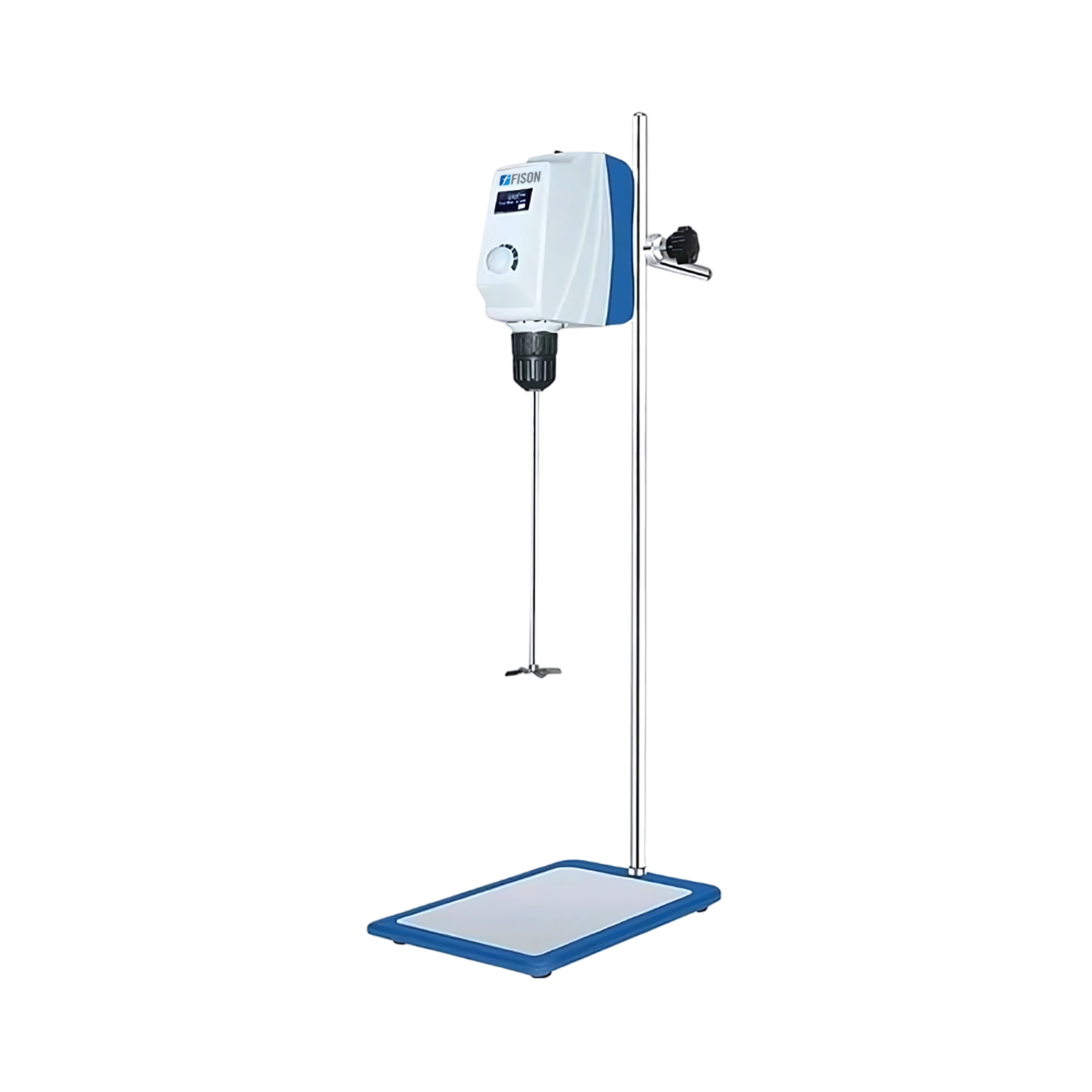

LCD Electric Overhead Stirrer FM-EOS-A101 offers adjustable speed range of 100 to 2200 rpm and 0.6 Nm adjustable torque. The LCD display allow the user to set the required torque and speed, and observe the true values of torque and speed. It is applicable for maximum 40 L capacity of the sample liquid. Enclosed chuck prevents liquid from splashing into the internal circuit of machine. Designed with Impeller changing hole for easy changing of sample vessel, self-locking drill clip, brushless DC motor and base with protected resist layer. Used in scientific research, colleges, chemical, pharmaceutical and medical units etc.
$2,162.00
| Capacity | 40 L |
| Speed range | 30 to 2200 rpm |
| Max viscosity | 50000 mPas |
| Diameter | 0.5 to 10 mm |
| Speed display | LCD |
| Speed resolution | ±1rpm |
| Torque | 0.6 Nm |
| Time setting | ≤ 9999 m |
| Ambient temperature | 5 to 40°C |
| Ambient humidity | 0.8 |
| Overload protection | Yes |
| Motor protection | Yes |
| Protect class | IP42 |
| Interface | RS232 |
| Input power | 120 W |
| Output power | 100 W |
| Power | 130 W |
| Power supply | AC 220 V 50 Hz |
| Exterior dimension | 186 × 83 × 220 mm |
| Net weight | 2.8 kg |
| Name | Dimension | Material | Application |
| 4 blades propeller | Length: 400 mm, diameter: 50 mm | 316 stainless steel | Used for mid-high speed |
| 4 blades propeller | Length: 350 mm, diameter: 65 mm | PTEE | Used for mid-high speed |
| One line propeller | Length: 400 mm, diameter: 60 mm | 316 stainless steel | Low viscocity mixing, mid-high mixing |
| One line propeller | Length: 350 mm, diameter: 70 mm | PTEE | Low viscocity mixing, mid-high mixing |
| Flat hole propeller | Length: 400 mm, diameter: 68 mm | 316 stainless steel | Gentle mixing, mid-low speed |
| Flat hole propeller | Length: 350 mm, diameter: 68 mm | PTEF coating | Gentle mixing, mid-low speed |
| Name | Dimension | Material | Application |
| Centrifugal impeller | Length: 400 mm, diameter: 90 mm | 316 stainless steel | Used for small mouth round flask, mid-high speed |
| Centrifugal impeller | Length: 350 mm, diameter: 85 mm | PTEF coating | Used for small mouth round flask, mid-high speed |
Fison Electric Overhead Stirrers are available in capacities ranging from 20 to 100 liters. They feature adjustable speed ranges, with viscosities up to 50,000 mPas for precise control. These stirrers are equipped with self-locking drill clip that ensures secure tool installation. They also incorporate safety features such as overload, short circuit, and abnormal speed alarms. Our stirrers are designed to provide reliable mixing performance for a wide range of applications.
