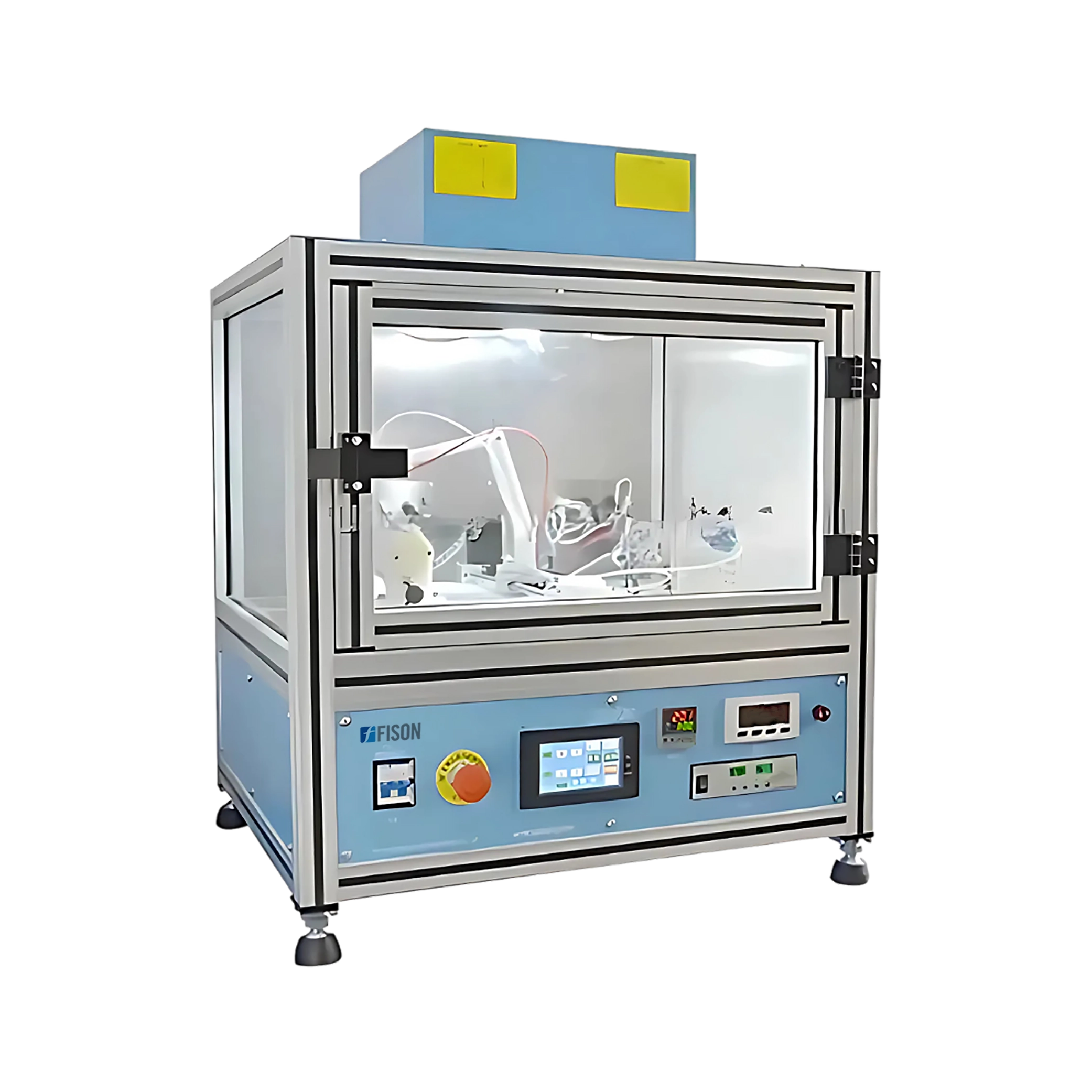

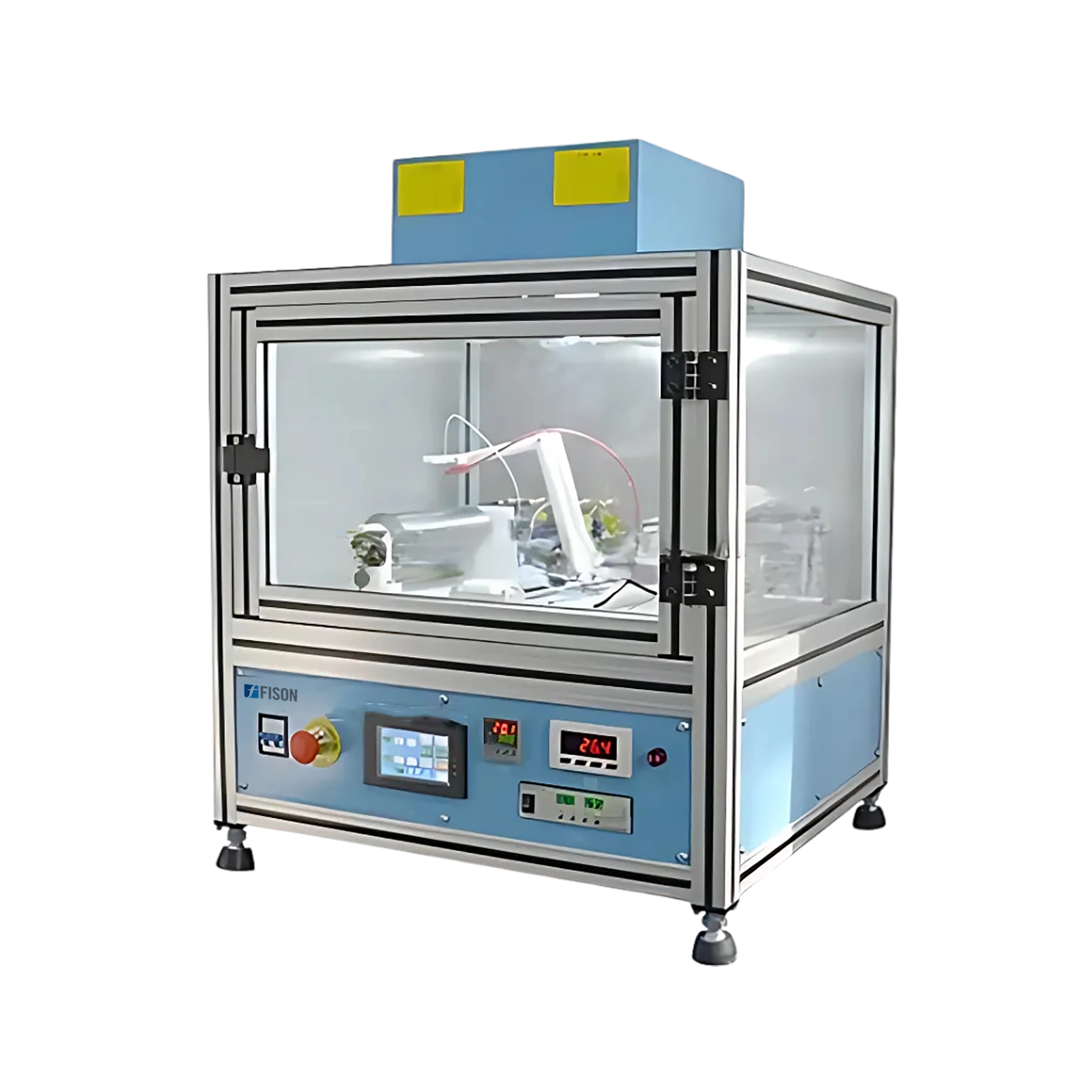

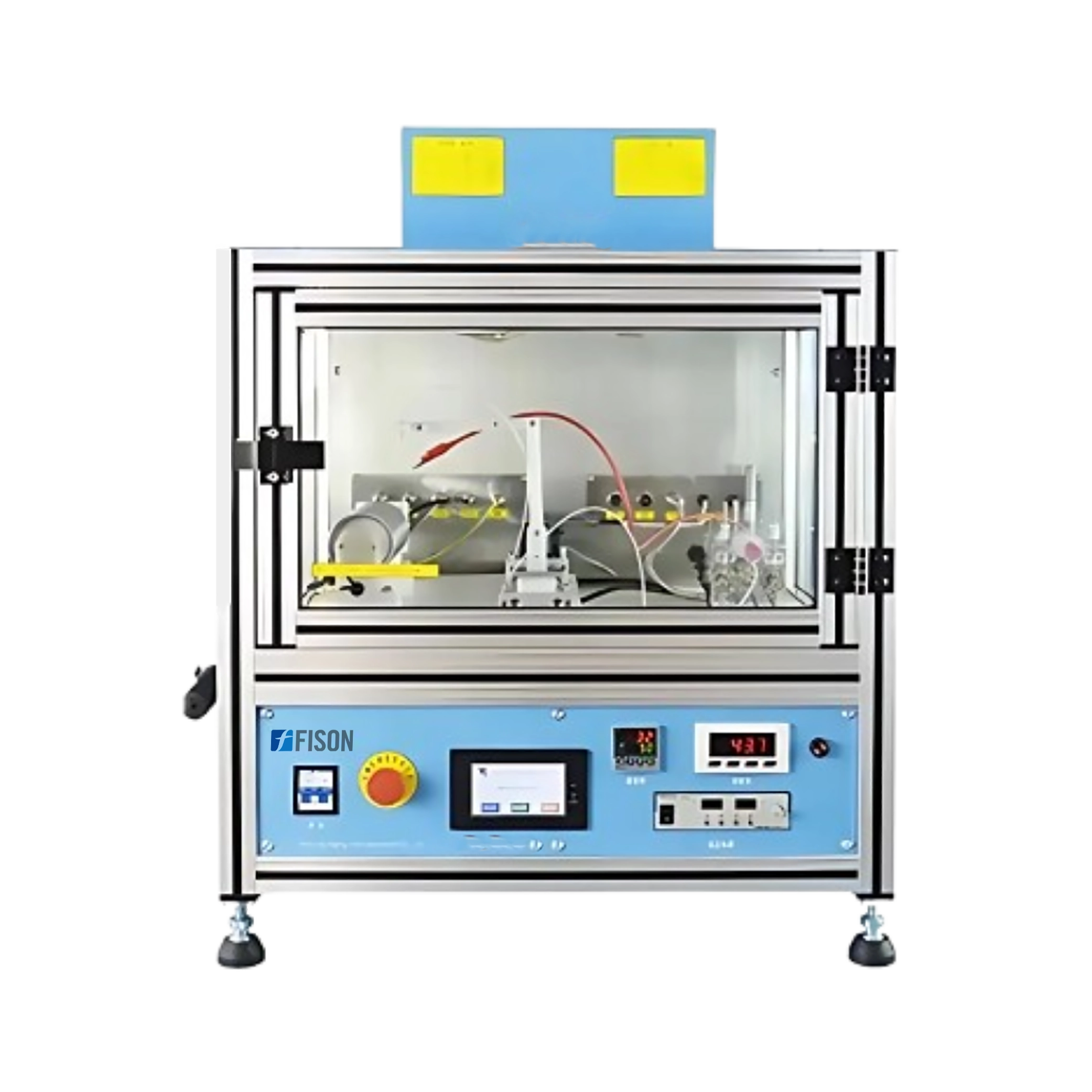

Electrospinning Machine FM-ESM-A100
Electrospinning Machine FM-ESM-A100 features a high-voltage power supply range of 0 - 30kV, ensuring precise voltage control for consistent and uniform fiber production. It features a syringe pump that ensures precise and controlled fluid flow. This is equipped with a collection roller, ensuring uniform fiber deposition for high-quality results. Our electrospinning machine melts the material into fine fibers with dimensions ranging from micrometers to nanometres, ideal for advanced nanofiber applications.
Specifications
| High Voltage Range | 0 to 30 kV |
| Temperature Range | Room Temperature (RT) to 50 °C |
| Syringe Pump Injection Speed | 0.0001 to 1 mm/s |
| Maximum Syringe Diameter | φ30mm |
| Standard Syringe Volume | 20ml |
| Travel Distance Range | 0.01 to 90 mm |
| Syringe pump Weight | 2 kg |
| Collection Roller Spindle Speed | 400 to 3800 rpm (Minimum Increment 100rpm) |
| Collection Roller Swing Speed | 5 to 100 mm/s (Minimum Increment 5mm/s) |
| Collection Roller Swing Range | 100 to 200 mm |
| Collection Roller Size | φ80×200 mm |
| Collection Roller Weight | 5 kg |
| Power Consumption | 1100 W |
| Power Supply | 220V, 50Hz |
| Dimensions (L×W×H) | 700 × 600 × 900 mm |
| Weight | 75 kg |
Features
- Fine nanofiber formation
- High-voltage electric field
- Strong adsorption properties
- Good filterability and barrier
- Increased specific surface area
Applications
- Electrospinning Machine FM-ESM-A100 is a device that produces fine polymer nanofibers with a high specific surface area and secondary structures, used in applications such as biopolymer preparation, polymer blends, and creating nano porous surfaces for filtration, adhesion, and heat preservation.
Accessories
Name Quantity Syringe Pump 1 set Drum Collector 1 set Discharging Rod 1 piece Pipes (Length: 1m) 5 pieces Needle (23G) 5 pieces Oiled Paper 2 pieces Exhaust Pipe 1 piece Syringe (20ml Plastic) 5 pieces Allen Wrench (2.5 L) 1 piece Allen Wrench (3 L) 1 piece Allen Wrench (4 L) 1 piece Allen Wrench (5 L) 1 piece
Accessories Optional
- Coaxial Spinneret 1
Coaxial Spinneret 2
Coaxial Spinneret 3
Coaxial Spinneret 4
Coaxial Spinneret (Special)
Simple Removable Coaxial Needle 1
Simple Removable Coaxial Needle 2
Simple Removable Coaxial Needle 3
Simple Removable Coaxial Needle (Special)
Multi-Function Coaxial Nozzle 1
Multi-Function Coaxial Nozzle 2
Multi-Function Coaxial Nozzle 3
Multi-Function Coaxial Nozzle Special
Two-Core Spray-Head
Three-Core Spray-Head
XY Control Collection Platform
Parallel Electrode
Collection Roller
Magnetic Collector
Syringe Pump
