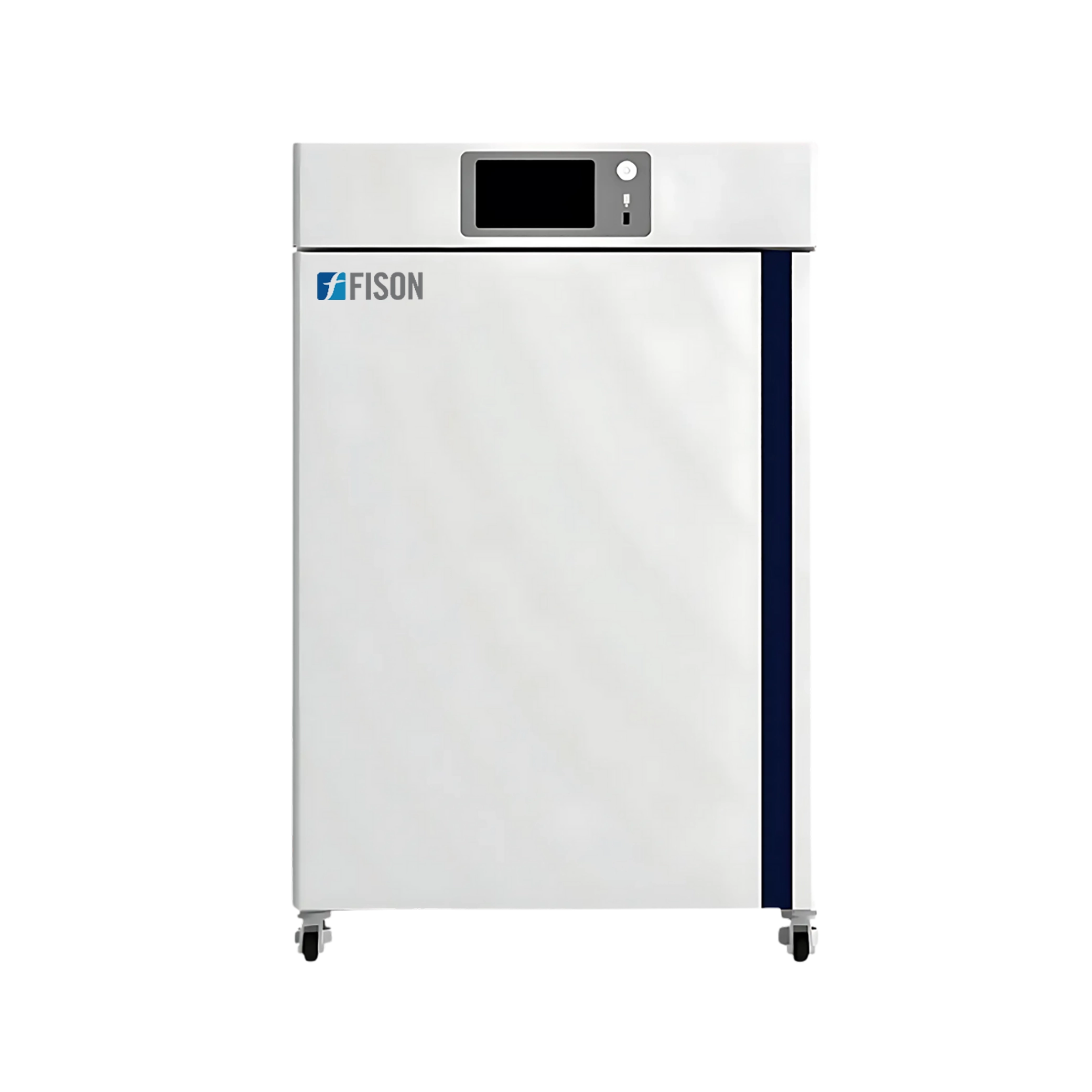

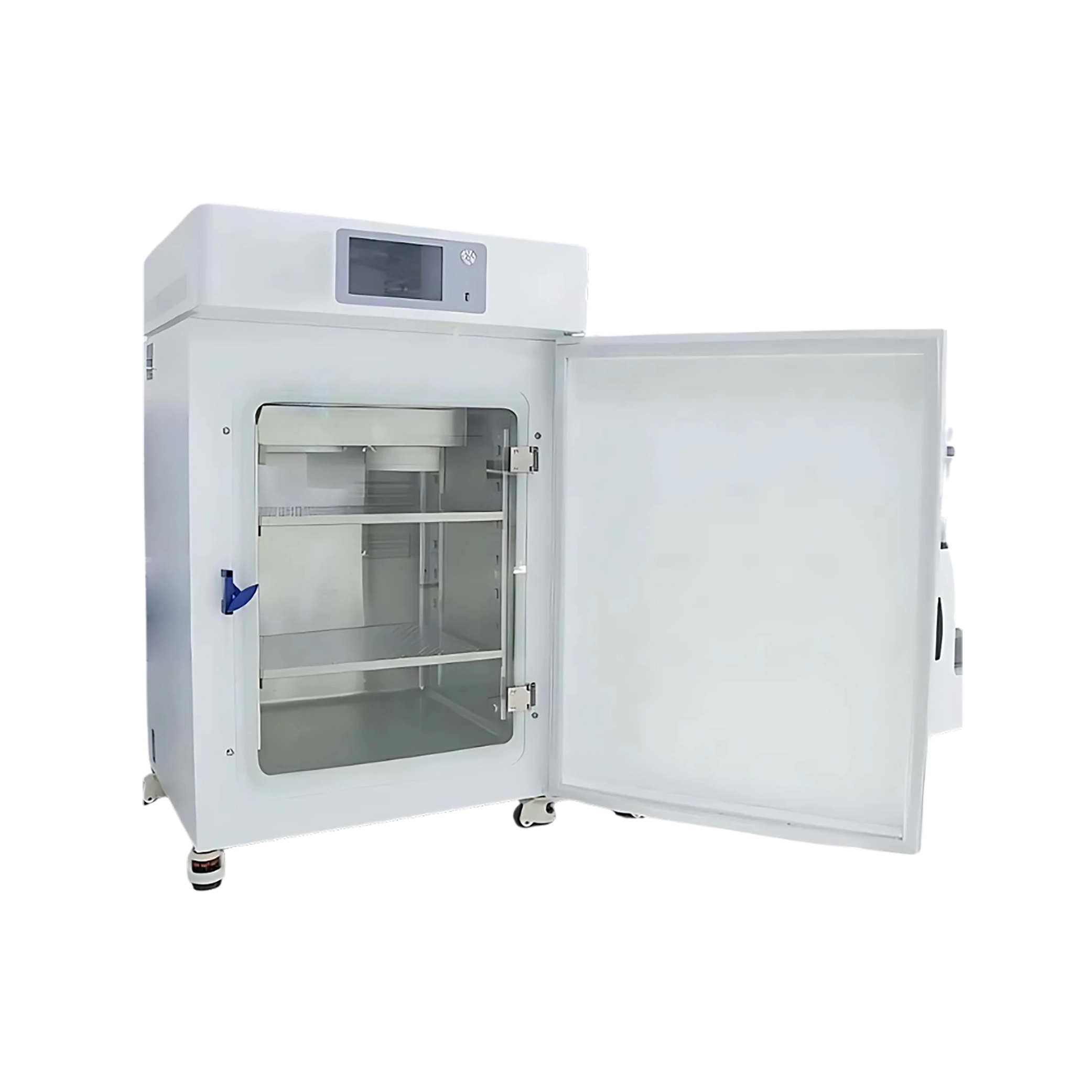

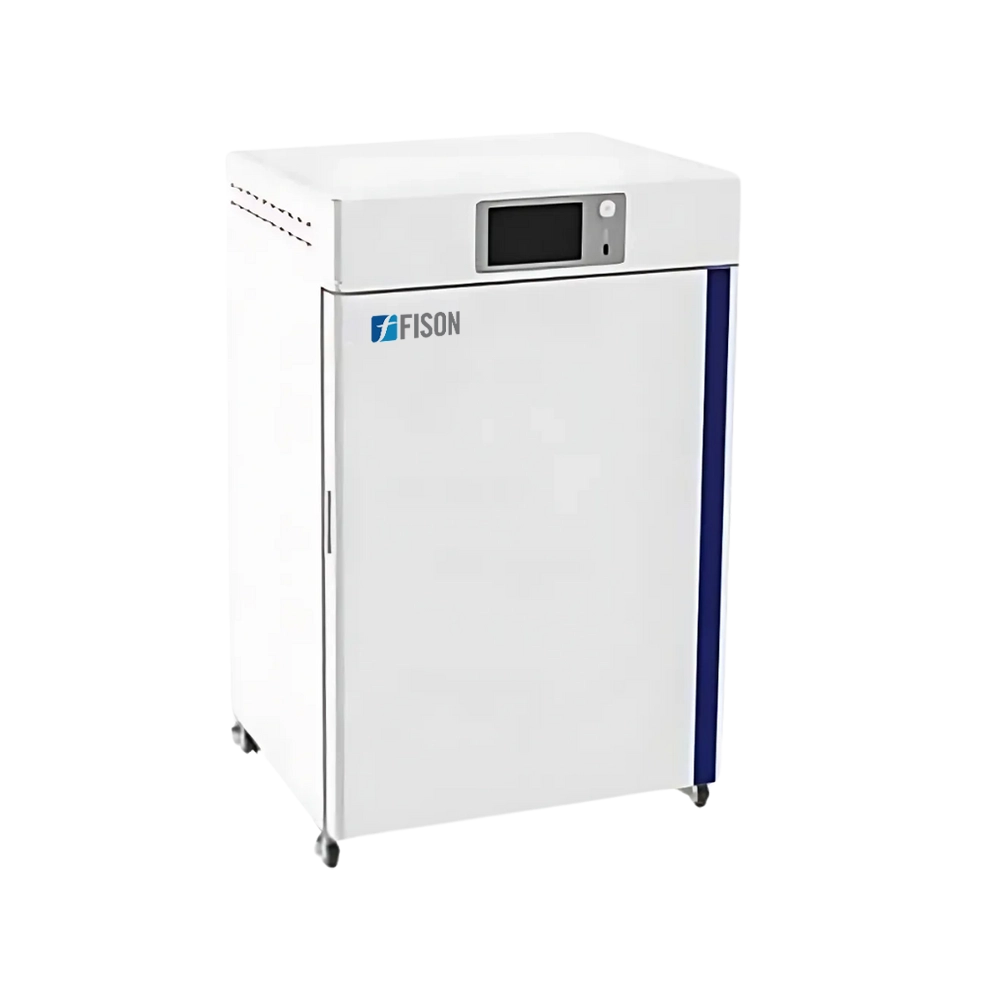

Air Jacketed CO₂ Incubator FM-CIA-A100
Air Jacketed CO₂ Incubator FM-CIA-A100 employs air-jacketed temperature control technology to ensure an optimal and stable growing environment for cell and tissue cultures. Built-in microprocessor controller technology with LED display and 50 L working chamber capacity. Enhanced safety features include infrared sensor for CO₂ concentration and UV lamp for sterilization, promotes cell growth through precise control of humidity, temperature, and CO₂ gas while minimizing the potential for contamination.
Specifications
| Capacity | 50 L |
| Heating | Air jacket |
| Temperature range | RT +5 to 60°C |
| Control type | PID control |
| Temperature fluctuation | ≤ ±0.2°C (at 37°C) |
| Temperature uniformity | ≤ ±0.3°C (at 37°C) |
| Time setting | 999 h or continuous |
| Alarm system | Over-temperature alarm; CO₂ Concentration alarm; Temperature sensor error alarm; Water-shortage alarm. |
| Interior material | Stainless steel |
| Exterior material | Cold-rolled steel with painting |
| Door type | Double door |
| Insulation Material | Polystyrene film |
| CO₂ control sensor | Infrared sensor |
| CO₂ measuring range | 0 to 20 % |
| CO₂ concentration control accuracy | CO₂ concentration control error 5% ± 0.1 % |
| Humidification type | Water tank for natural evaporation |
| Sterilization type | UV lamp |
| Shelves | 2 pcs/adjustable |
| Caster type | Foot master caster |
| Interface | USB port |
| Power supply | 220 V±10%，50/60 Hz |
| Maximum power consumption | 350 W |
| Internal dimension (W×D×H) | 368×387×408 mm |
| External dimension (W×D×H) | 500×527×821 mm |
| Packaging dimension (W×D×H) | 655×680×970 mm |
| Gross Weight | 69 kg |
Features
- Microcomputer controlled system
- PID controller to control several parameters
- UV Lamp as a sterilizing agent
- LCD touch screen displays: Temperature, CO₂ concentration, and run-time

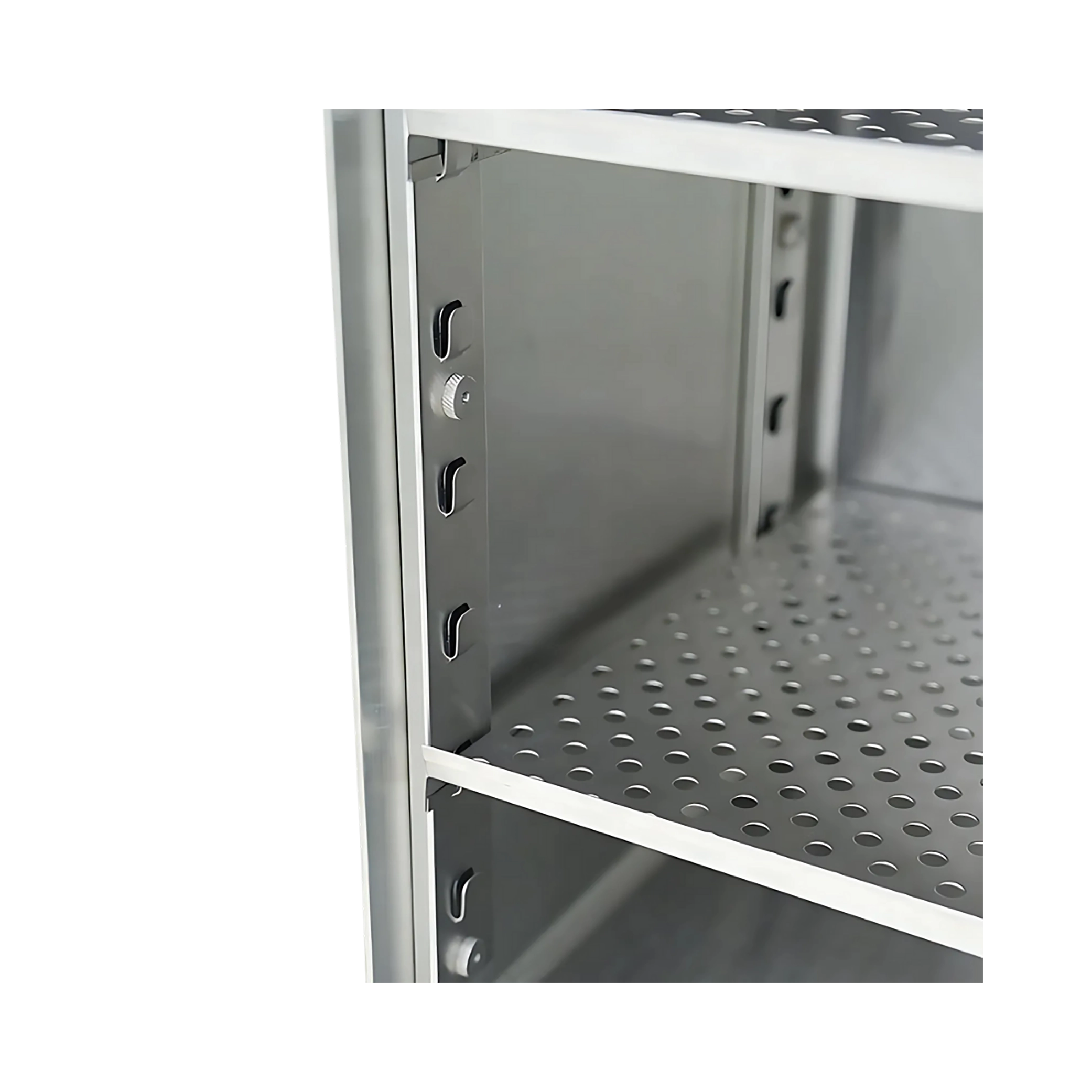

- 2 perforated stainless-steel shelves and 50 L inner chamber capacity
- Infrared (IR) sensor uses split-beam technology for CO₂ control in fluctuating temperature and humidity conditions
- Rapid humidity recovery using a large directly heated water reservoir
- CO₂ incubator pressure regulator
- Water level and over temperature alarm with audible and visual alert
- Tightly sealed inner door made of tempered safety glass
- Excellent quality gas circuit valve for stable CO₂ concentration and less CO₂ consumption
- Working chamber adopts round angle structure, easy to clean
Applications
- CO₂ incubators are designed to maintain adequate interior moisture to prevent the drying out of cultures. These air jacketed CO₂ incubators are widely used for a broad range of applications that includes: Tissue engineering, In vitro fertilization, Neuroscience, Cancer research, Stem cell research, Regenerative medicine, Mammalian cell research.
