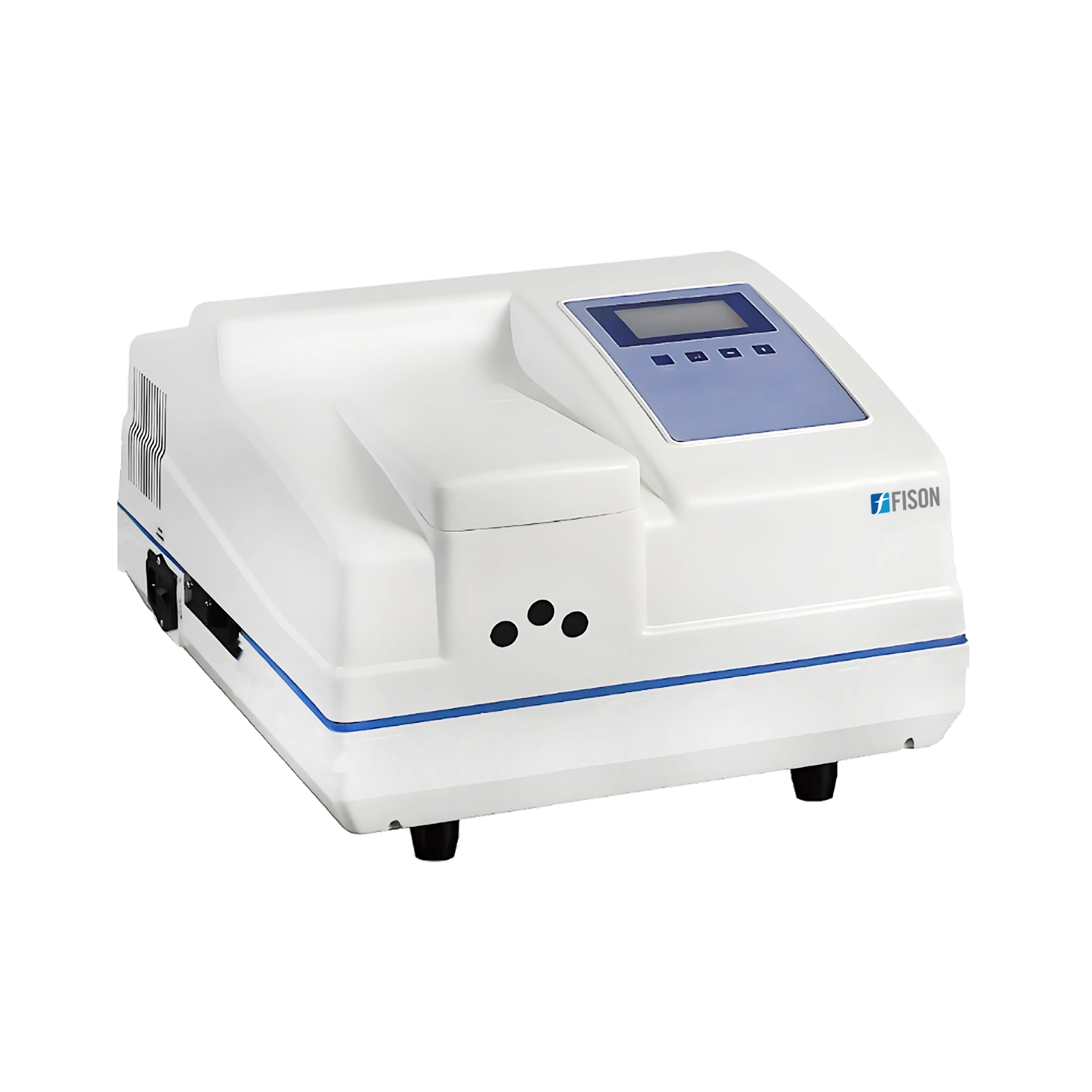

Fluorescence Spectrophotometer FM-FS-A202
Fluorescence Spectrophotometer FM-FS-A202 offers a versatile wavelength range from 200 to 900 nm, enabling accurate analysis across ultraviolet, visible, and near-infrared spectra. This includes software for fluorescence analysis and data export, ensuring precise results. It features fast scanning speeds, completing full-spectrum analysis reaching up to 30,000 nm/min. Our Spectrophotometer incorporates a replaceable interference filter system for flexible excitation.
Specifications
| Wavelength Range | 200nm to 900nm |
| Detection Sensitivity | S/N ≥ 150 (P-P) |
| Excitation Wavelength Bandwidth | 10nm |
| Microprocessor | PID 0 to 199.9 |
| Accuracy | ±1.0nm |
| Repeatability | ≤0.5nm |
| Optional Range | 200nm to 900nm |
| Emission Wavelength Range | 200nm to 870nm |
| Wavelength Scanning Speed | Fast 30000nm/min, fine scan 15nm/min |
| Measure Linearity | Correlation coefficient ≥ 0.995 |
| Gain Adjustment Range | 1 to 17 options available |
| Integral Response Time | 6 options: 0.1s to 4s |
| Resolution Ratio | Bandwidth of 10nm, transmission range of 0.001μm |
| Time Scan Settings | Can be set arbitrarily, up to 60000s high |
| Concentration Range | 0 to 199.9% |
| Data Transmission Mode | USB |
| Photometric Value Range | 0.00 to 600 |
| Unit | -300 to 1999 conc |
| Peak Intensity Repeatability | ≤1.5% |
| Power Consumption | 200W |
| Power Supply | 220V/50Hz, 110V/60Hz |
| Dimensions (W×D×H) | 442 × 392 × 250 mm |
| Net Weight | 10 kg |
| Gross Weight | 14 kg |
Features
- High-intensity light source
- Multi-sample compatibility
- Integrated USB connectivity
- Real-time data analysis
- Advanced noise reduction
Applications
- Fluorescence Spectrophotometer FM-FS-A202 is used for analyzing fluorescence in research, pharmaceuticals, and environmental monitoring. It applies in laboratories and industrial settings for precise sample measurement and analysis.
Accessories
- Laser filter 365nm (1 PC)
10mm quartz colorimetric dish (1 PC)
Accessories Optional
- Glass Colorimetric dish,5mm
Glass Colorimetric dish,10mm
Glass Colorimetric dish,20mm
Glass Colorimetric dish,30mm
Glass Colorimetric dish,50mm
Quartz two-way colorimetric dish,5mm
Quartz two-way colorimetric dish,10mm
Quartz two-way colorimetric dish,20mm
Quartz two-way colorimetric dish,30mm
Quartz two-way colorimetric dish,50mm
Glass four-way colorimetric dish,10mm
Quartz four-way colorimetric dish,10mm
Quartz semimicro colorimetric dish,10mm
Quartz microchromatographic dish,200ml
Quartz microchromatographic dish,500ml
Multi-function adapter
Membrane sample holder
Powder sample holder
10mm cell holder adapter
Double frequency filter
Peltier temperature control holder
Upconversion laser head holder (fiber and laser generator not included)
Laser filters 200nm-850nm
Laser Source 255nm
Laser Source 265nm
Laser Source 280nm
Laser Source 310nm
Laser Source 325nm
Laser Source 335nm
Laser Source 345nm
Laser Source 350nm
Laser Source 365-525nm
