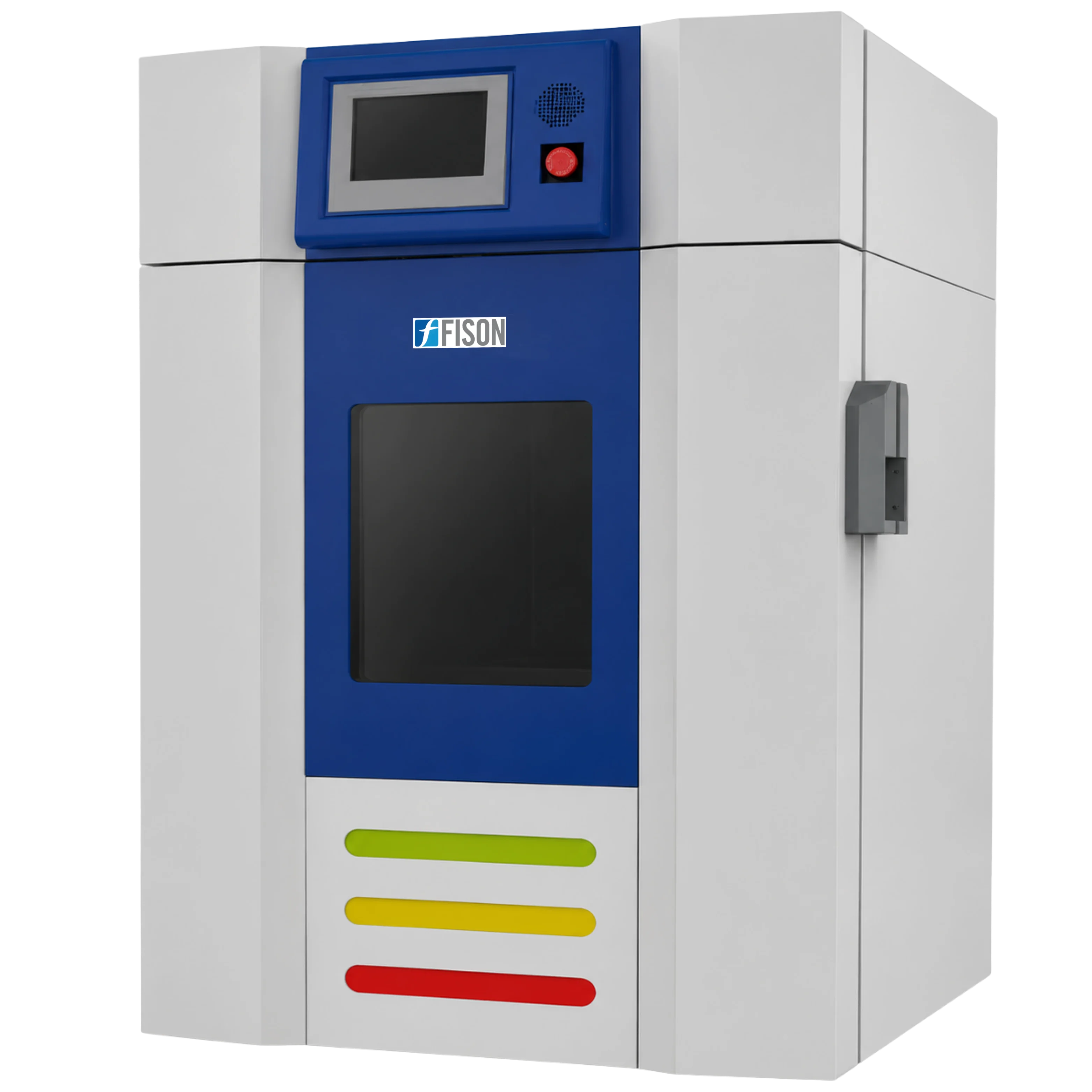

High-temperature Aging Chamber FM-TAC-A100
High-temperature Aging Chamber FM-TAC-A100 offers a spacious 270-liter test space for versatile aging tests. It operates within a temperature range of RT +20°C to 200°C, providing stable and precise thermal conditions. Its patented internal air circulation system guarantees uniform temperature distribution, enhancing test precision and reliability across all conditions. Our chamber includes sensors for anti-dew, overheat, breezeless, and smog prevention to protect test samples.
Specifications
| Test Space Volume | 270 L |
| Temperature Range | R.T +20 to 200 ℃ |
| Temperature Constancy | ±0.1 to ±0.8 ℃ |
| Temperature Homogeneity | ±0.5 to ±2.0 ℃ |
| Temperature Deviation | ±0.5 ~ ±2.0 ℃ |
| Heat-Up Time | 50 min (RT to 200℃) |
| Power Supply | AC380V ±10%, 50Hz, 3/N/PE |
| Test Space Dimension (W × D × H) | 600 × 500 × 900 mm |
| External Dimension (W × D × H) | 1000 × 780 × 1710 mm |
Features
- PID temperature control algorithm
- Component malfunction protection
- Modular, fashionable design
- Heat insulation structure
- Unique operation mode
Applications
- High-temperature Aging Chamber FM-TAC-A100 simulates accelerated aging and is widely used in the electronics industry, automotive industry, aerospace and defense, rubber and plastics industry, medical devices, and materials research.
Accessories
1 Entry port Φ50mm
1 Silicon stopper for entry port
2 Stainless steel shelves
