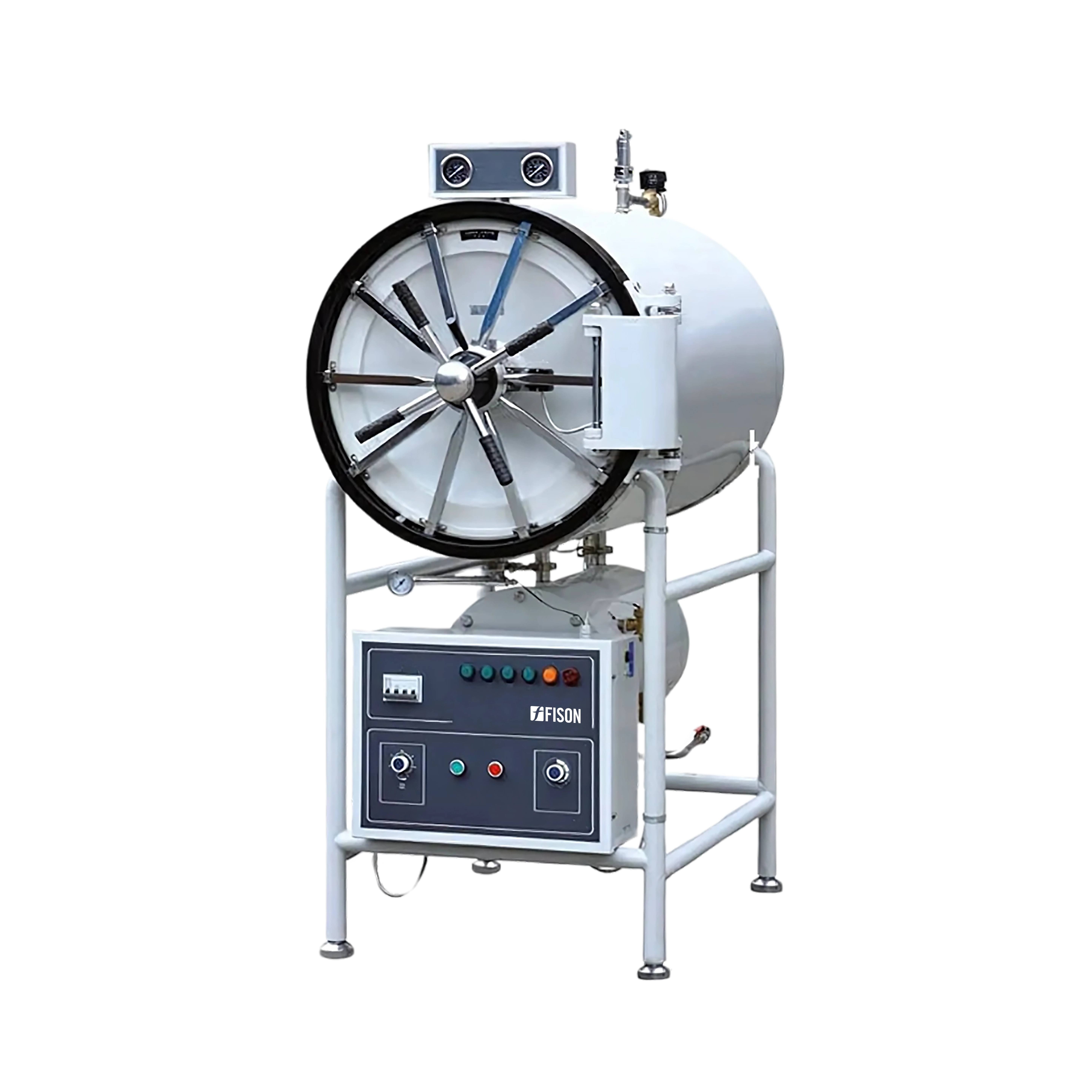

Horizontal Autoclave FM-HA-A101 is a cylindrical oriented autoclave with internal tank capacity of 200 L. Fully automatic computer controlled process with 134°C sterilizing temperature and 0.22 MPa hydraulic pressure. Equipped with vacuum breaker, water level indicator, steam trap and automatic pressure control switch for safe operation. Device comes with high grade durable stainless steel construction and multiport valve for controlling sterilization cycle effectively.
$5,112.00
| Chamber capacity | 200 L |
| Inner tank dimension | 515×1000 mm |
| Design | Cylindrical orientation |
| Working pressure | 0.22 MPa |
| Working temperature | 134℃ |
| Adjustment of temperature | 105℃ to 134℃ |
| Chamber construction | Corrosion resistant 304 grade stainless steel |
| Chamber tray | 1 perforated stainless steel tray |
| Timer range | 0 to 60 min |
| Control Precision: Temperature | ≤ ±1℃ |
| Maximum power consumption | 9 kW |
| Power supply | 380 V/50 Hz |
| Dimension | 1400×670×1650 mm |
| Packaging dimension | 1560×820×1850 mm |
| Net weight | 260 kg |
| Gross weight | 350 kg |
Horizontal Autoclaves is ideal tool for Laboratories, Hospitals, Nursing Homes, Agricultural R&D; labs etc., Pharmaceutical, Food & Beverage Industries and Institutions. It is suitable for sterilizing hospital dressings, linen, rubber, plastic goods, surgical instruments, glassware and utensils.
Fison horizontal autoclave range designed for high-capacity steam sterilization in laboratory environments, suitable for sterilizing culture media, glassware, instruments and heat-resistant materials. The series includes front-loading cylindrical and rectangular chamber designs made from corrosion-resistant stainless steel, supporting working temperatures up to 150°C and working pressure up to 0.25 MPa. This horizontal sterilizer features advanced models with digital control systems, thermo-pressure controllers, safety alarms, automatic water cut-off and buzzer alerts for controlled operation. Capacity options range from 90 L to 1000 L, covering multiple chamber sizes for varied sterilization requirements.
