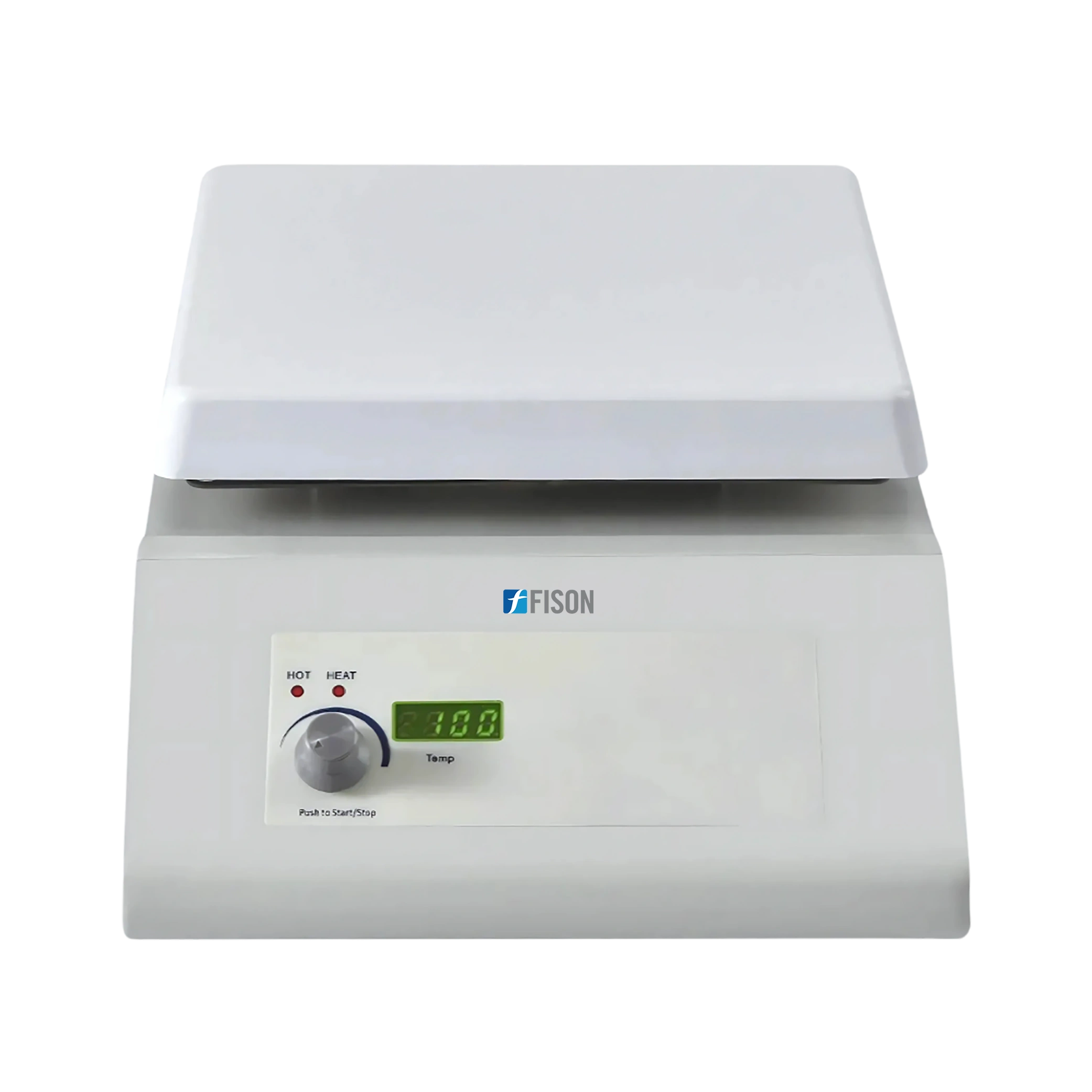

Hotplate Magnetic Stirrer FM-HMS-A106
Hotplate Magnetic Stirrer FM-HMS-A106 operates at ambient temperatures ranging from 5 to 40°C and supports up to 80% relative humidity, ensuring stable performance. It is equipped with a PT 1000 external temperature sensor, allowing precise control for enhanced accuracy. It offers a wide heating range, with the plate capable of reaching 35 to 400°C and the solution heating range extending from 35.0 to 200.0°C, ensuring versatility. It features a clear and bright LED display for easy monitoring and control.
Specifications
| Ambient Temperature | 5 to 40°C |
| Relative Humidity | 80% |
| Plate Dimensions | 7 |
| Hot Warning | Yes |
| Temperature Setting Range | 35 to 400°C |
| Heating Range for Plate | 35 to 400°C |
| Heating Range for Solution | 35.0 to 200.0°C |
| External Temperature Sensor | PT 1000 |
| Heating Setting Resolution (Plate) | 1°C |
| Heating Setting Resolution (Solution) | 0.1°C |
| Temperature Stability | 1°C |
| Heat Control Accuracy (with PT1000) | ±0.5°C |
| Capable Calibration on External Probe | Yes |
| Overheat Warning (Error 1 & Error 2) | Yes |
| Power Consumption | 900 W |
| Power Supply | 110 to 130V / 200 to 240V |
| Frequency | 50/60 Hz |
| Dimensions (W × D × H) | 190 × 290 × 100 mm |
| Weight | 3.5 kg |
Features
- Durable construction
- IP21 protection level
- Overheat protection
- Accurate calibration
- Portable and easy to handle
Applications
- Hotplate Magnetic Stirrer FM-HMS-A106 is widely used in chemistry laboratories to perform chemical experiments and synthesis by mixing two or more components.
Frequently Asked Question
1: What are the main applications of the Hotplate Magnetic Stirrer FM-HMS-A106?
The Hotplate Magnetic Stirrer FM-HMS-A106 is widely used for mixing and heating solutions during chemical experiments, synthesis, and sample preparation.
2: How accurate is the temperature control on the Hotplate Magnetic Stirrer FM-HMS-A106?
The Hotplate Magnetic Stirrer FM-HMS-A106 provides ±0.5°C heat control accuracy when used with the PT 1000 external sensor, ensuring precise results.
3: Does the Hotplate Magnetic Stirrer FM-HMS-A106 feature a hot surface warning?
Yes, the Hotplate Magnetic Stirrer FM-HMS-A106 includes a built-in “Hot Warning” indicator for user safety.
4: Who can benefit from using the Hotplate Magnetic Stirrer FM-HMS-A106?
Researchers, scientists, and lab technicians in academic, pharmaceutical, and chemical labs can benefit from the Hotplate Magnetic Stirrer FM-HMS-A106.
5: Can the Hotplate Magnetic Stirrer FM-HMS-A106 operate continuously?
Yes, the Hotplate Magnetic Stirrer FM-HMS-A106 is designed for stable, long-duration use in laboratory environments.
