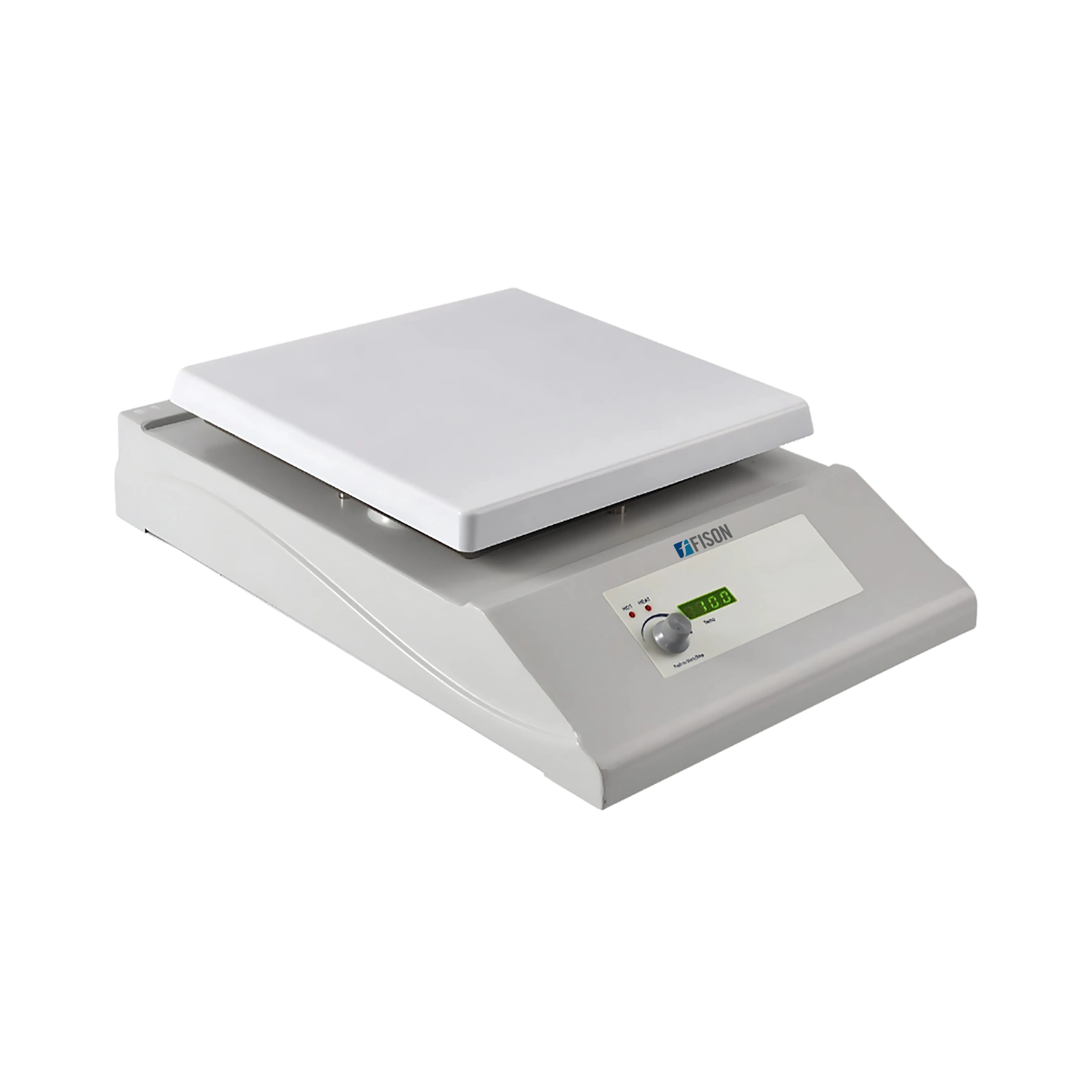

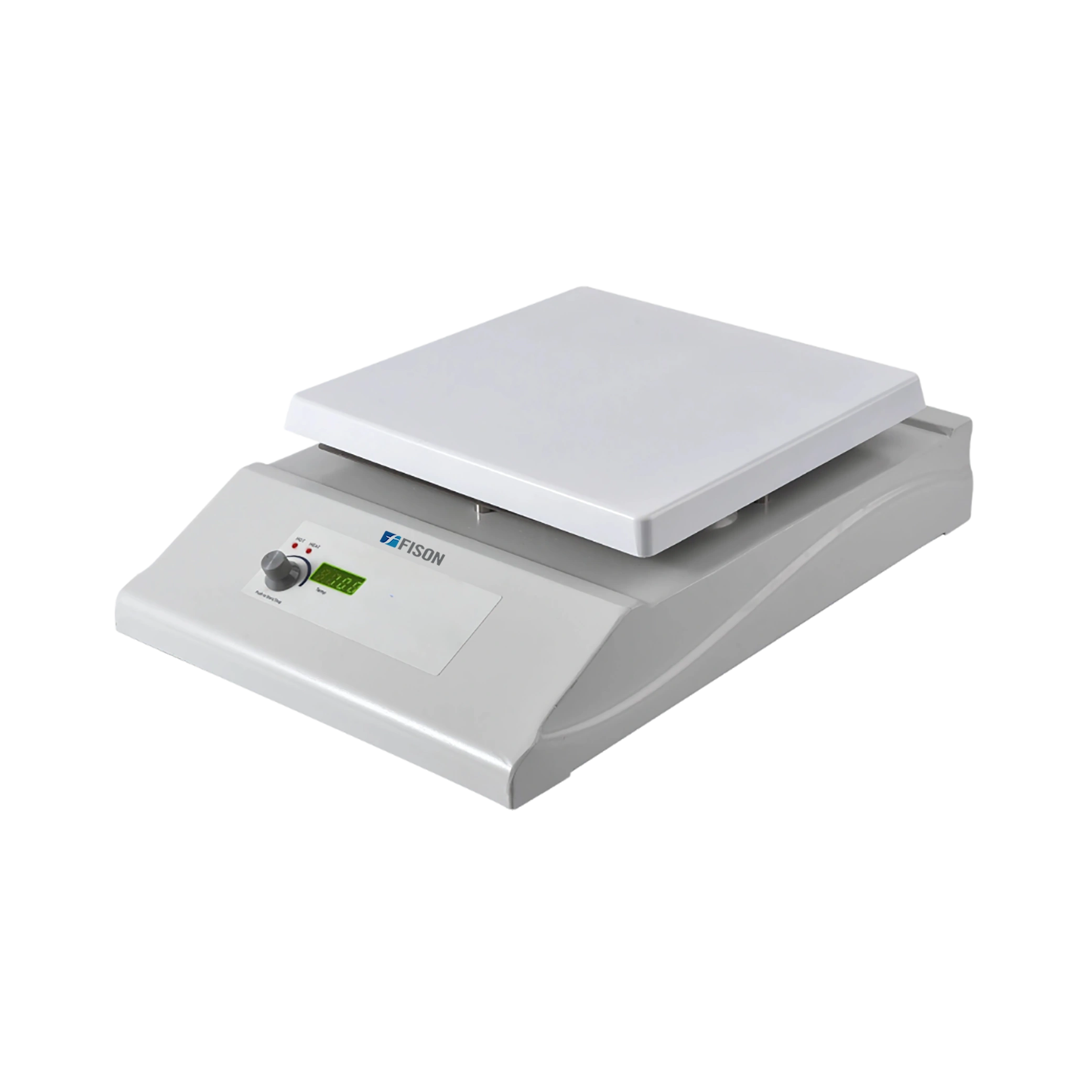

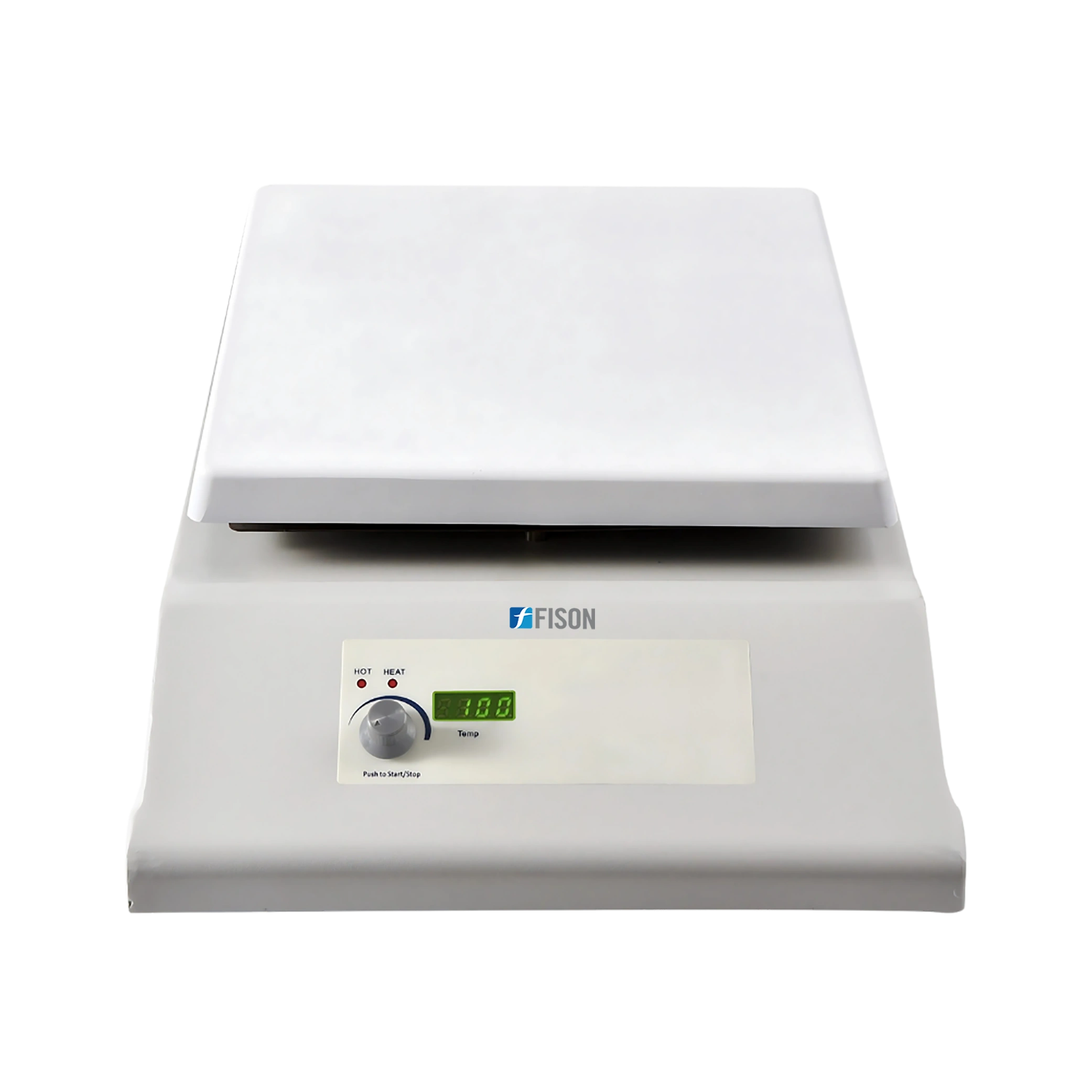

Hotplate Magnetic Stirrer FM-HMS-A107
Hotplate Magnetic Stirrer FM-HMS-A107 features a precise temperature setting range of 35 to 400°C, delivering reliable performance. It operates within an ambient temperature range of 5 to 40°C and up to 80% relative humidity, offering stable performance in different conditions. It features a magnetic stirrer designed to provide efficient and uniform mixing during operation. It is equipped with an LED display for real-time monitoring and operation.
Specifications
| Ambient Temperature | 5 to 40°C |
| Relative Humidity | 80% |
| Plate Dimensions | 10 |
| Hot Warning | Yes |
| Temperature Setting Range | 35 to 400°C |
| Heating Range for Plate | 35 to 400°C |
| Heating Range for Solution | 35.0 to 200.0°C |
| External Temperature Sensor | PT 1000 |
| Heating Setting Resolution (Plate) | 1°C |
| Heating Setting Resolution (Solution) | 0.1°C |
| Temperature Stability | 1°C |
| Heat Control Accuracy (with PT1000) | ±0.5°C |
| Capable Calibration on External Probe | Yes |
| Overheat Warning (Error 1 & Error 2) | Yes |
| Power Consumption | 1600 W |
| Power Supply | 110 to 130V / 200 to 240V |
| Frequency | 50/60 Hz |
| Dimensions (W × D × H) | 290 × 423 × 110 mm |
| Weight | 7.0 kg |
Features
- Aluminium plate coated with ceramic
- Robust construction
- IP21 protection rating
- PT1000 temperature sensor
- Overheat protection
- Portable and easy to use
Applications
- Hotplate Magnetic Stirrer FM-HMS-A107 is widely used in chemistry laboratories to perform chemical experiments and synthesis by mixing two or more components.
