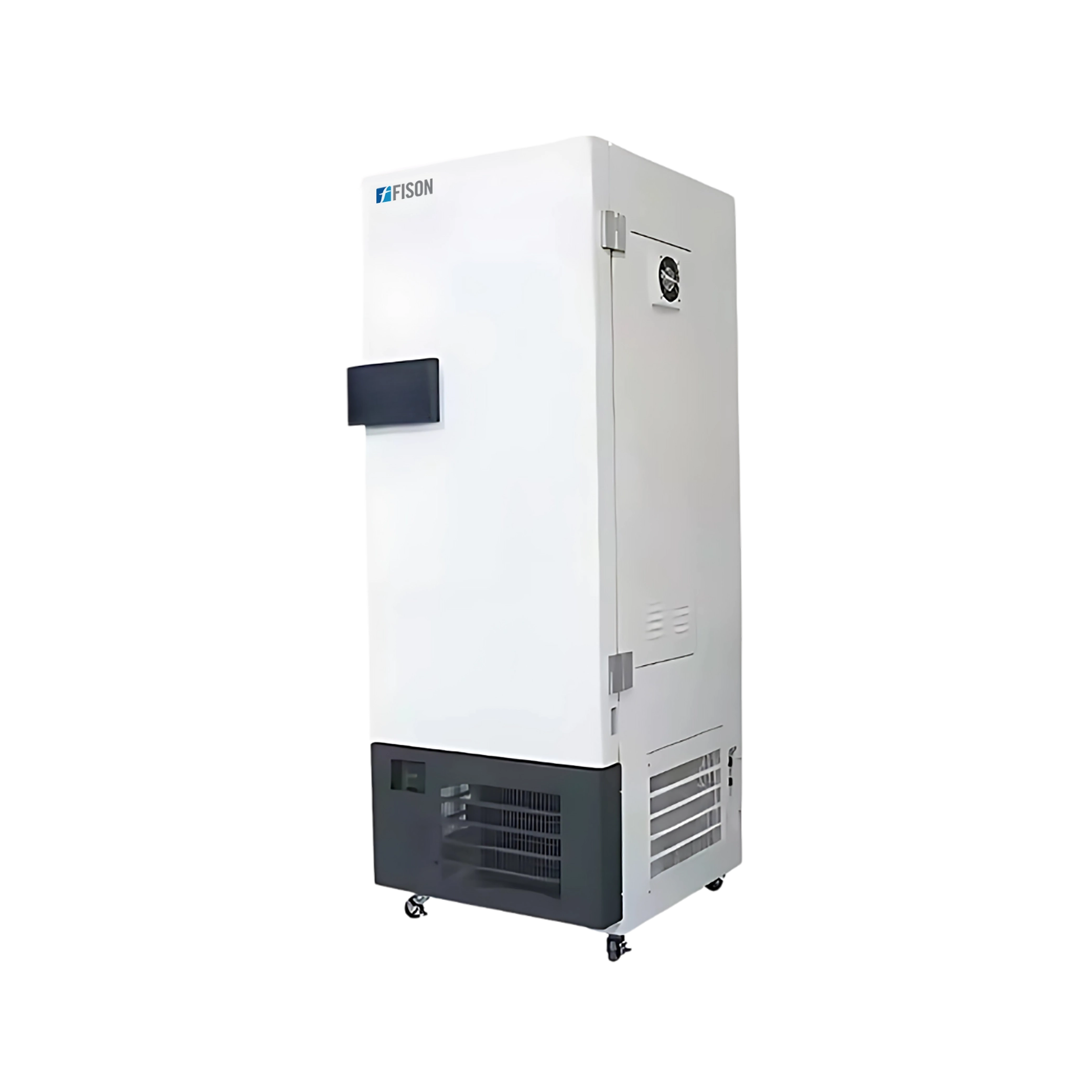

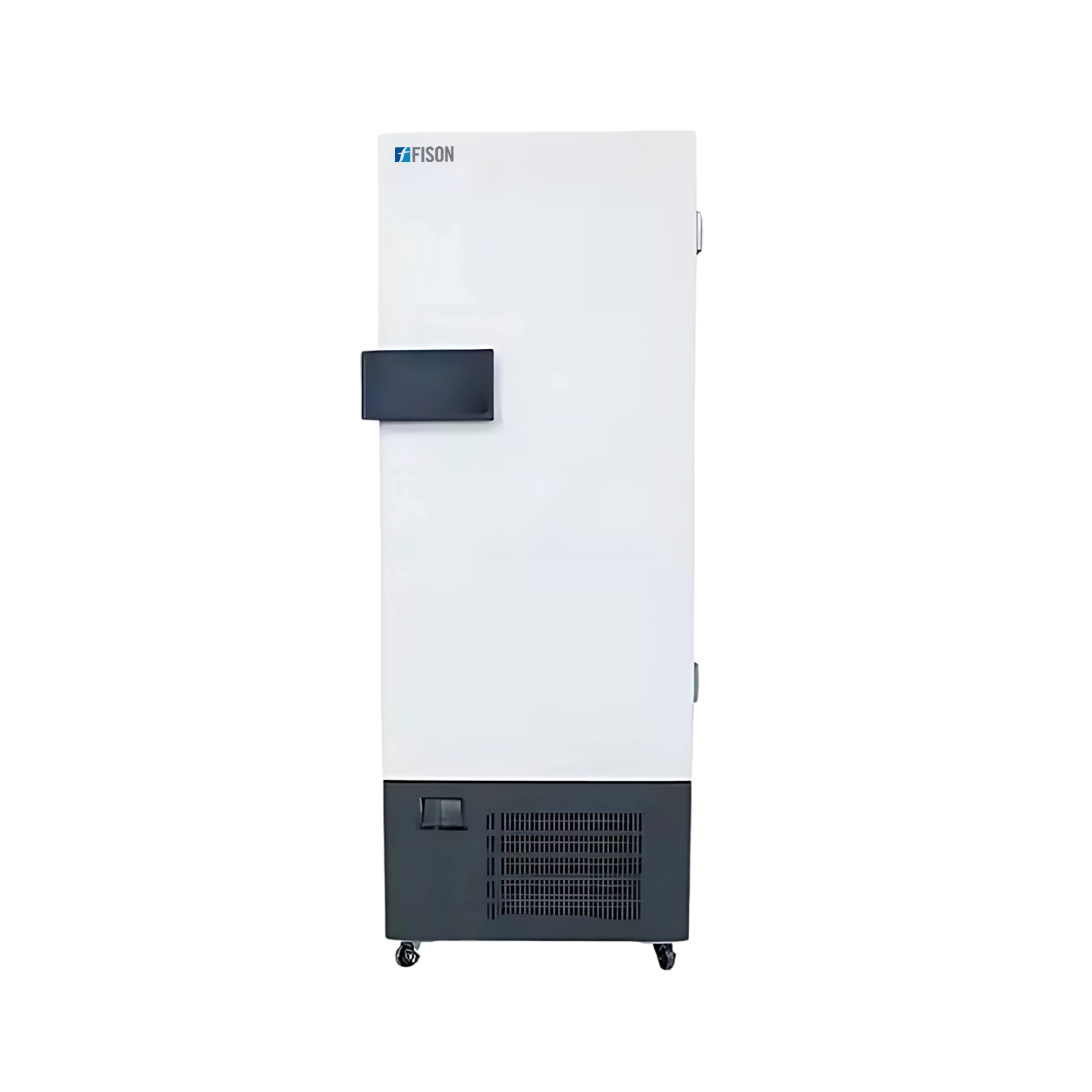

Lighting Incubator FM-LI-A101
Lighting Incubator FM-LI-A101 is comprised with 2-side illumination lighting of 0 to 12000 lx and adjustable 6° illumination control. Features 402 L capacity with dual type of temperature range i.e., 10 to 50°C with illumination and 5 to 50°C without illumination. Designed with R134a refrigerant and fluorescent lamp as light source, has magnetic door sealing, LED display and 3 adjustable shelves. Equipped with over temperature protection and temperature sensor, offers ≥ 180 h of continuous working time. With 5 to 35°C of ambient temperature and microprocessor PID control system, it is an optimal unit for incubation under defined temperature and light conditions.
Specifications
| Capacity | 402 L |
| Illumination type | 2-side illumination |
| Light source | Fluorescent lamp |
| Lighting illumination | 1 to 12000 lx |
| Illumination control | 6° adjustable |
| Temperature range | With illumination: 10 to 50°C Without illumination: 5 to 50°C |
| Temperature control | 0.1°C |
| Temperature accuracy | ± 0.5°C |
| Temperature uniformity | ± 2°C |
| Refrigerant | R134a |
| Ambient temperature | 6 to 35°C |
| Number of Shelves | 3 pcs |
| Continuous working time | ≥ 180 h |
| Display | LED |
| Controller | Microprocessor PID control system |
| Power | 2500 W |
| Power supply | AC 220 V ± 10 %, 50/60 Hz |
| Internal dimension (W×D×H) | 560 × 600 × 1198 mm |
| External dimension (W×D×H) | 755 × 905 × 1840 mm |
| Packaging dimension (W×D×H) | 870 × 1050 × 2040 mm |
| Net weight | 140 kg |
| Gross weight | 200 kg |
Features
- 2-side illumination lighting of 0 to 12000 lx with 6° adjustable illumination control
- 402 L capacity with dual type of temperature range i.e., 10 to 50°C with illumination and 5 to 50°C without illumination
- R134a refrigerant and fluorescent lamp as light source, high-efficient with long-lifespan
- Magnetic door sealing, efficient closing strength provides airtight seal around the cabinet
- LED display, convenient setting and monitoring of different parameters
- 3 adjustable shelves, organized and efficient storage of different incubating samples
- Over temperature protection and temperature sensor, ensures safe operation
- ≥ 180 h of continuous working time with 5 to 35°C of ambient temperature
- Microprocessor PID control system, ensures efficient regulation of different variables
- An optimal unit for incubation under defined temperature and light conditions
Applications
- Lighting Incubator is used for culturing plants, breeding, preservations, for different constant temperature and lighting experiments across pharmacy, chemical industry, environmental industry, agriculture industry, scientific research etc.
