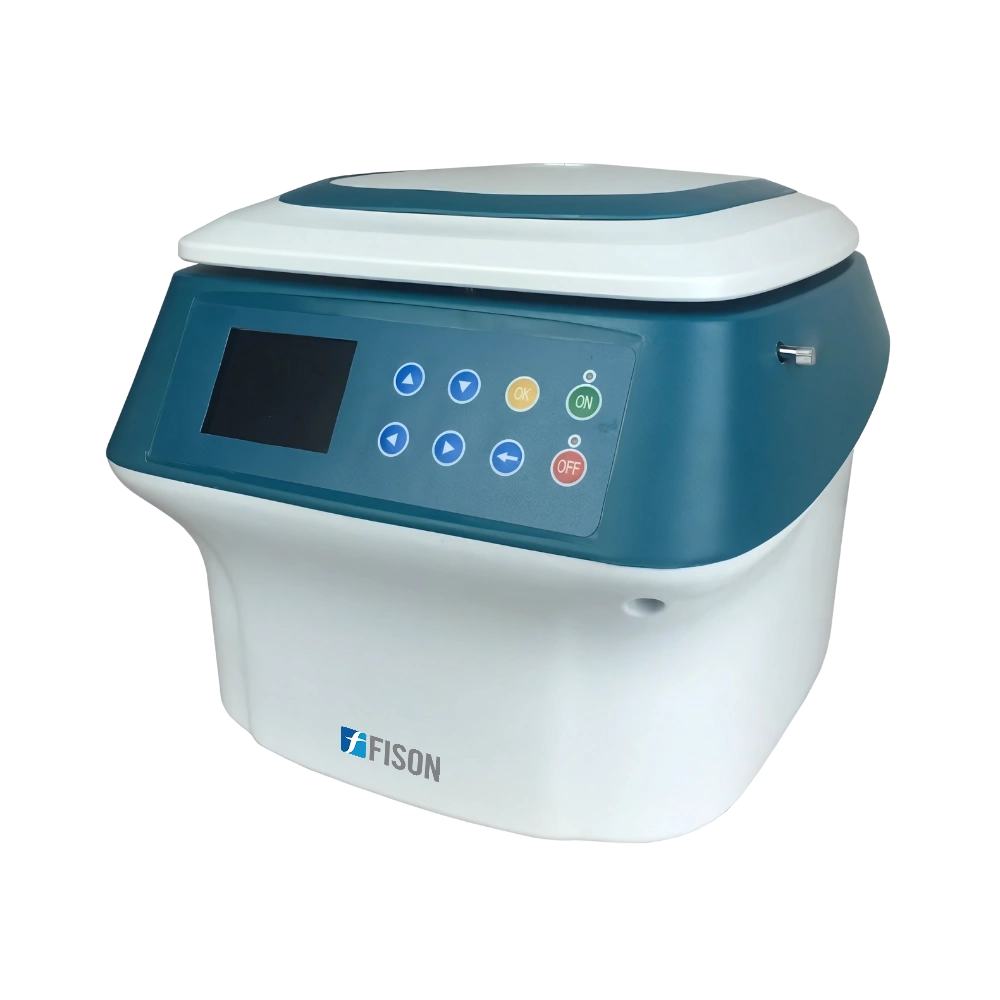

Low Speed Centrifuge FM-LSC-A509
Low Speed Centrifuge FM-LSC-A509 offers a maximum speed of 4000 rpm, making it ideal for routine separation tasks. It comes with a standard rotor capacity of 20 ml by 12 tubes, providing efficient sample processing for laboratories. It includes an automatic stop function that halts the unit immediately if the lid is opened during use. Our centrifuge features an LCD to clearly show speed, RCF, and timer settings for precise operation and monitoring.
Specifications
| Maximum Speed | 4000 rpm |
| Rotor Capacity | 20 ml × 12 (standard) |
| Maximum RCF | 2325 ×g |
| Timer | 0 to 99 min59s |
| Voltage | 110V 60/220V50Hz |
| Dimension | 320 × 340 × 280 mm |
| Packing Dimension | 410 × 430 × 350 mm |
| Net Weight | 10 kg |
| Gross Weight | 11 kg |
Features
- Brushless motor
- Touch panel control
- Open door status indicator
- Error code display
- Electronic door lock
- Program selection
Applications
- Low Speed Centrifuge FM-LSC-A509 separates substances and is widely used in clinical laboratories, research institutions, educational institutions, pharmaceutical labs, environmental labs, food and beverage industry.
Rotors Selection
Rotor No.
Rotor Capacity
Max RCF
Rotor No. 01
20 ml × 6
1790 ×g
Rotor No. 02
20 ml × 8
2325 ×g
Rotor No. 03
15 ml × 18
2325 ×g
Rotor No. 04
10 ml × 12
2325 ×g
Rotor No. 05
5 ml eppendrof tube × 12
1790 ×g
Frequently Asked Question
1: Why should I choose FM-LSC-A509 over other centrifuges?
It offers a brushless motor, touch panel control, LCD, and multiple safety features for efficient and reliable operation.
2: How does the FM-LSC-A509 ensure operator safety during use?
It includes an automatic stop when the lid opens, an electronic door lock, and an open-door status indicator.
3: When FM-LSC-A509 is not working, what should I check first?
Check the LCD for error codes, ensure the lid is securely closed, and confirm the power connection.
4: How do I monitor and adjust the FM-LSC-A509 centrifuge settings?
You can use the touch panel to set speed, RCF, and time, all clearly shown on the LCD screen.
5: Why is the FM-LSC-A509 not starting after the lid is closed?
Ensure the lid is fully locked and no error code is displayed, as the electronic lock must engage for operation.
