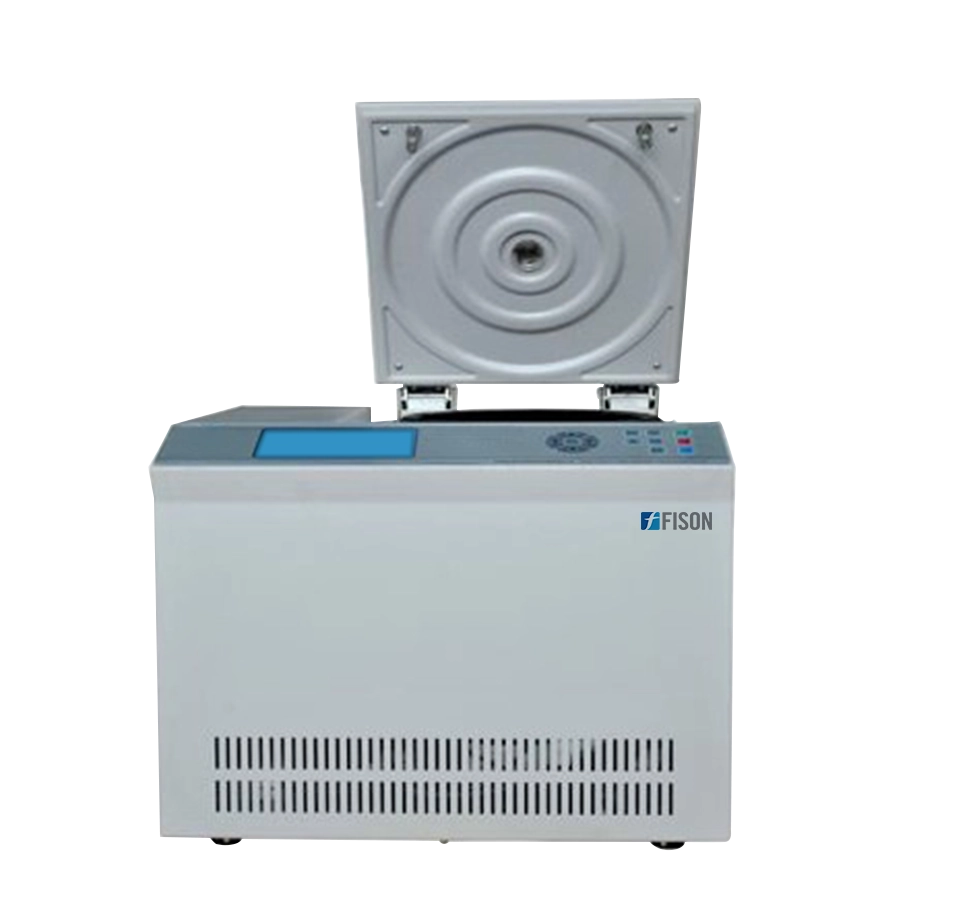

Low Speed Refrigerated Centrifuge FM-LRC-A103
Low Speed Refrigerated Centrifuge FM-LRC-A103 is a vertical floor type centrifuge with 4500 rpm maximum specimen spinning speed with 3524 ×g centrifugal force. Features swing rotor with maximum capacity of 4 × 300 ml and LCD digital display to set centrifugal time, rotational speed and centrifugal power. Integrated refrigeration system with temperature range of -20 to +40℃ make it ideal for wide range of low speed separations.
Specifications
| Maximum speed | 4500 rpm |
| Maximum RCF | 3524 ×g |
| Swing rotor capacity | 4 × 300 ml |
| Speed accuracy | ± 10 rpm |
| Temperature range | -20 to +40℃ |
| Temperature accuracy | ± 2℃ |
| Noise | ≤ 56 dB |
| Timer range | 1min to 99 min continuous |
| Power supply | AC 220V 50Hz |
| Power | 2.0 kVA |
| Weight | 80 kg |
| Dimension (L×W×H) | 680 × 710 × 525 mm |
Features
- Micro-computer control system with electronic lock design
- AC variable-conversion motor to deliver high torque
- Low temperature ranges of -20 to +40℃
- Maximum spin speed 4500 rpm with 3524 ×g RCF
- Equipped with refrigeration compressor for refrigerant and maintaining equilibrium temperature
- Compasses 9 different rate selection modes and 10 different operation modes for programming
- Operation data stored automatically
- LCD display and touching panel makes operation easy
- Real-time conversation of Speed and RCF is convenient for operation
- Self-locking device, over-speed safety device, over-temperature safety device, imbalance safety device and automatic alarm device
Applications
- It is the ideal instrument for mass blood centrifugation, protein precipitation and cell separation. The machine is widely used in blood bank, pharmaceutical factory, biochemistry, biological product, other research and manufacturing institutions.
Optional Rotor Selection
Name Capacity Maximum speed RCF Swing bucket rotor 1 4 × 300 ml (Round hanging cup） 4500 rpm 3524 × g Swing bucket rotor 2 148 × 5 ml 4500 rpm 3321 × g Enzymatic bacteria reaction plate Rotor 1 96 holes × 2 ml 4000 rpm 1932 × g Enzymatic bacteria reaction plate Rotor 2 96 holes × 4 ml (Honeycomb hanging cup） 4000 rpm 2403 × g
Optional Adapter Selection
Swing bucket rotor 1 Adapter no Volume No of tubes Adapter 1 50ml 8 （Bottom tip with cover） Adapter 2 5ml 76 Adapter 3 4 ml 56×Vacuum blood tube Adapter 4 100 ml 4 Adapter 5 15 ml 28 Adapter 6 10 ml 40
