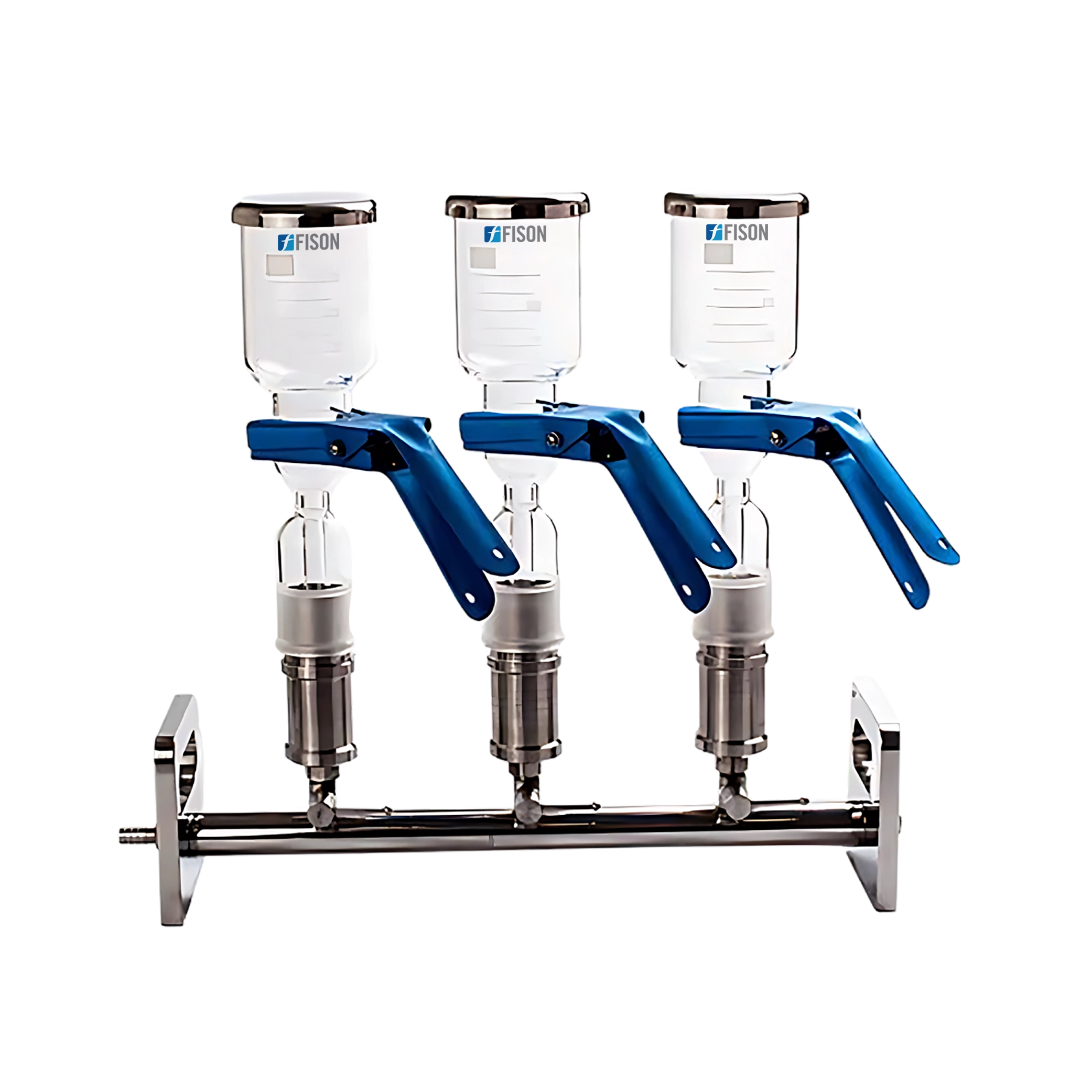

Manifold vacuum filtration apparatus FM-MVF-A101
Manifold Vacuum Filtration Apparatus FM-MVF-A101 comes with three branches, a 300 mL glass funnel, and a 1000 mL collection bottle for efficient filtration. Made from premium glass with uniform wall thickness, it offers durability and strong pressure resistance. The user-friendly design allows smooth operation and can endure high-temperature sterilization. Perfect for accurate solid-liquid separation, particle removal, and sample clarification in research and quality control applications.
$2,225.00
Specifications
| Branch | Three |
| Funnel Capacity | 300 ml |
| Funnel valve | Borosilicate glass |
| Support screen | PTFE |
| Membrane support | Borosilicate glass |
| Working Temperature | 180 to 200°C |
| Clamp | Anodized aluminum spring clamp |
| Storage bottle | Borosilicate glass |
| Screen pore size | 20µm |
| Receiving flask | 1000 ml |
| Membrane size | 47mm and 50mm |
| Connection | Ground Joint |
| Base holder | Stainless Steel 316 L |
| Packing dimension (W×D×H) | 55×46×28cm |
| Weight | 9.3kg |
Features
- High work efficiency
- No working medium
- long service life
- High corrosion resistance
- Sterilized at high temperature
Applications
- Manifold Vacuum Filtration Apparatus FM-MVF-A101 is used for intercepting microorganisms, bacteria, and particulate matter from liquid samples. Clarifies filtrates, sterilizes solutions, and removes impurities efficiently. Supports high purity testing across chemical, pharmaceutical, and food laboratories.
