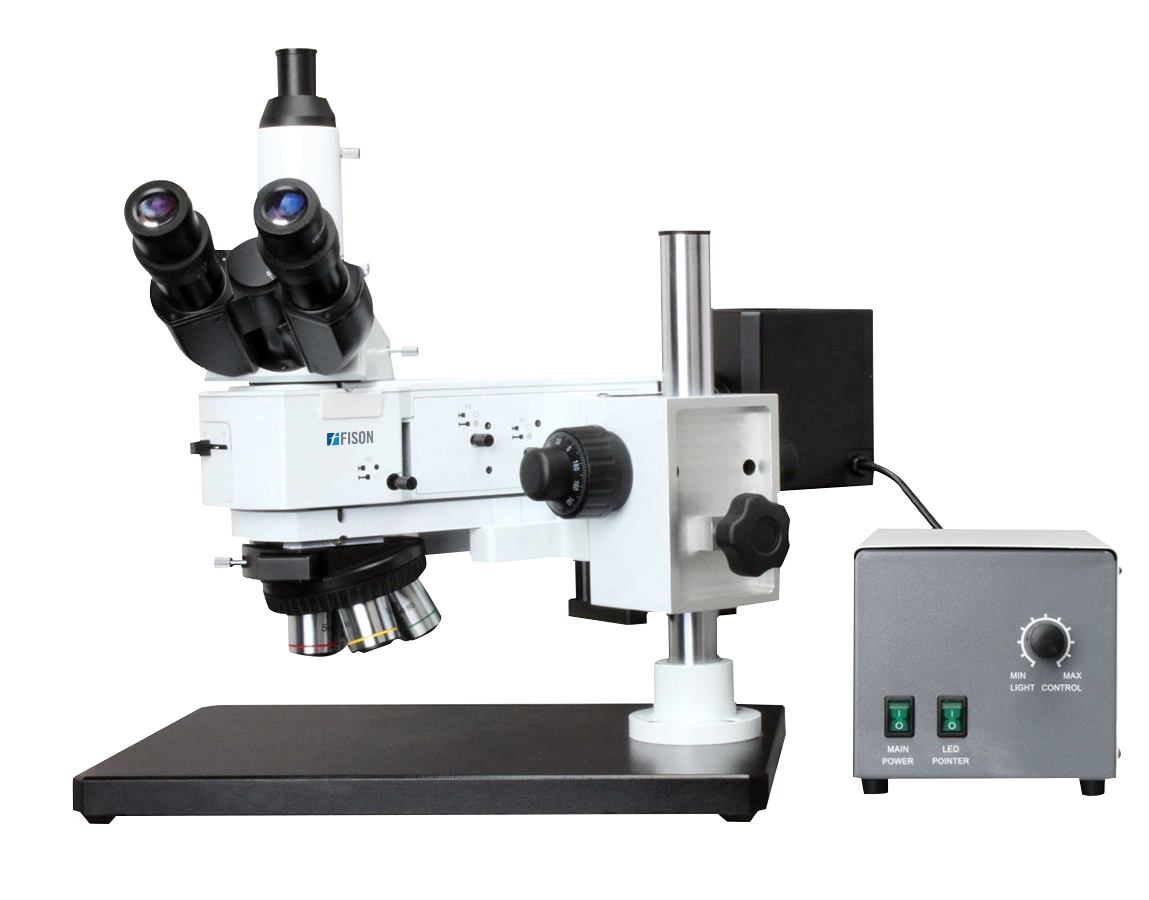

Metallurgical Microscope FM-MM-A401 comes with large base plate and long pole for convenient examination of large, thick, and opaque samples. In this upright microscope bright field, dark field, polarization effect can be achieved using respective objectives & attachments.
$4,925.00
Specifications
| Optical system | Infinite optical system | ||||||
| Viewing head | Siedentopf type trinocular viewing head, inclined at 30° interpupillary 48 to 75 mm adjustable distance | ||||||
| Objective |
|
||||||
| Eyepiece | Extra wide field eyepiece EX10X/ 22 mm | ||||||
| Stage | Size of the soleplate 396 × 276 × 22 mm, height of the post 300 mm, diameter of the post 30 mm | ||||||
| Illumination | 24 V/ 100W Halogen light, adjustable brightness | ||||||
| Nosepiece | Backward quintuple nosepiece | ||||||
| Focusing | Coaxial coarse and fine adjustment, fine division 1µm, moving range 32 mm | ||||||
| Filter | Blue, Green, Yellow and Ground glass | ||||||
| Dimension (L×W×H) | 489 × 437 × 325 mm | ||||||
| Net Weight | About 3 kg |
Features
Applications
Accessories Optional
| Accessories No. | Name |
| 1 | Video Attachment C Mount 1X |
| 2 | Photo attachment: 1X photo adapter |
| 3 | Photo attachment: 1X photo adapter to connect to Nikon SLR Camera |
| 4 | Polarizer and analyzer |
Fison Metallurgical Microscopes employ dual transmitted and reflected light for sample illumination. They are equipped with multiple objective lenses with different magnification levels from 4x to 100x. Heavy base and robust frame for vibration-resistant observations. We offer you both upright and inverted designs suiting to your research needs. Our Metallurgical microscopes are versatile tools featuring brightfield, darkfield, phase contrast and polarisation to visualize microstructure of metals and alloys.
