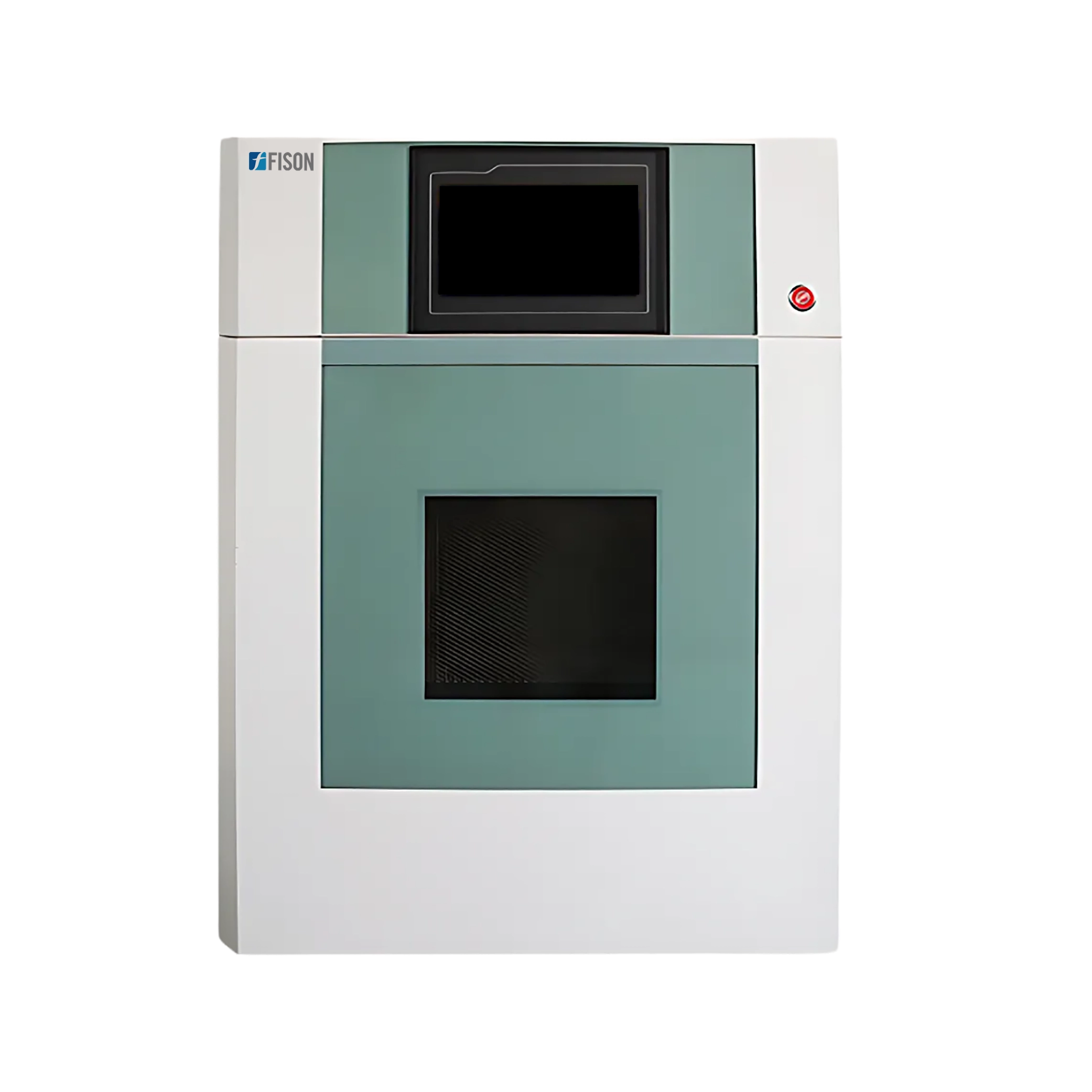

Microwave Digestion System FM-MDS-A102 operates within a wide temperature range of –40 to 500 ℃, ensuring precise and efficient sample preparation. It offers 50L capacity for safe multi-sample processing. A durable PEEK outer tank and TFM1700 inner tank provide chemical resistance and safety. Our advanced digestive system adopts PID frequency conversion heating ensures stability. Its high-resolution LCD displays temperature, pressure, and operational status in real time.
$16,787.00
| Oven Chamber | 50L |
| Temperature Measurement Range | -40 to 500 ℃ |
| Temperature Control Range | 0-300 ℃ |
| Ambient Temperature | 0-50 ℃ |
| Operating Temperature | 250 ℃ |
| Temperature Resistance | 600 ℃ |
| Pressure Resistance | 85mpa |
| Control Pressure Range | 0-6Mpa |
| Control Pressure Accuracy | 0.01Mpa |
| Pressure Control range | 0-10mpa |
| Temperature accuracy | 0.1 ℃ |
| Control accuracy | ±0.1 ℃ |
| Display accuracy | ±1 ℃ |
| Vessel Holding Capacity | 12 Vessels |
| Vessel Volume | 100ml |
| Warming slope | 1-50 ℃/min |
| Microwave leakage | ≤0.3mW/cm2 |
| Cooling time | ≤25 min |
| Protective spraying | PFA |
| Heating mode | PID frequency conversion technology |
| Outer tank material | PEEK |
| Inner tank material | TFM1700 |
| Microwave Frequency | 2450(MHz) |
| Microwave Power | 1500W |
| Power Supply | AC220V / 50Hz |
| Dimension (L×B×H) | 770 × 620 × 840 mm |
| Packaging Dimension 1 (L × W × H) | 630 × 640 × 865 mm |
| Packaging Dimension 2 (L × W × H) | 600 × 600 × 650 mm |
| Net Weight | 77 Kg |
| Gross Weight 1 | 70 Kg |
| Gross Weight 2 | 90 Kg |
Accessories | Quantity |
Rotor SVT Holder | 1 |
SVT Vessels | 1 |
Handling Tools | 1 |
High pressure digestion reaction tank rack | 1 |
High precision platinum resistance temperature sensor | 1 |
Anticorrosive telescopic ventilation pipe for exhaust cooling system | 1 |
High strength HP sample holder | 3 |
two-way ratchet wrench | 1 |
Lock wrench for air release valve | 1 |
Sealed cup lid expander | 1 |
Explosion proof membrane | 500 |
stainless steel tweezers | 1 |
3.5A Spare fuse | 1 |
10A Spare fuse | 1 |
