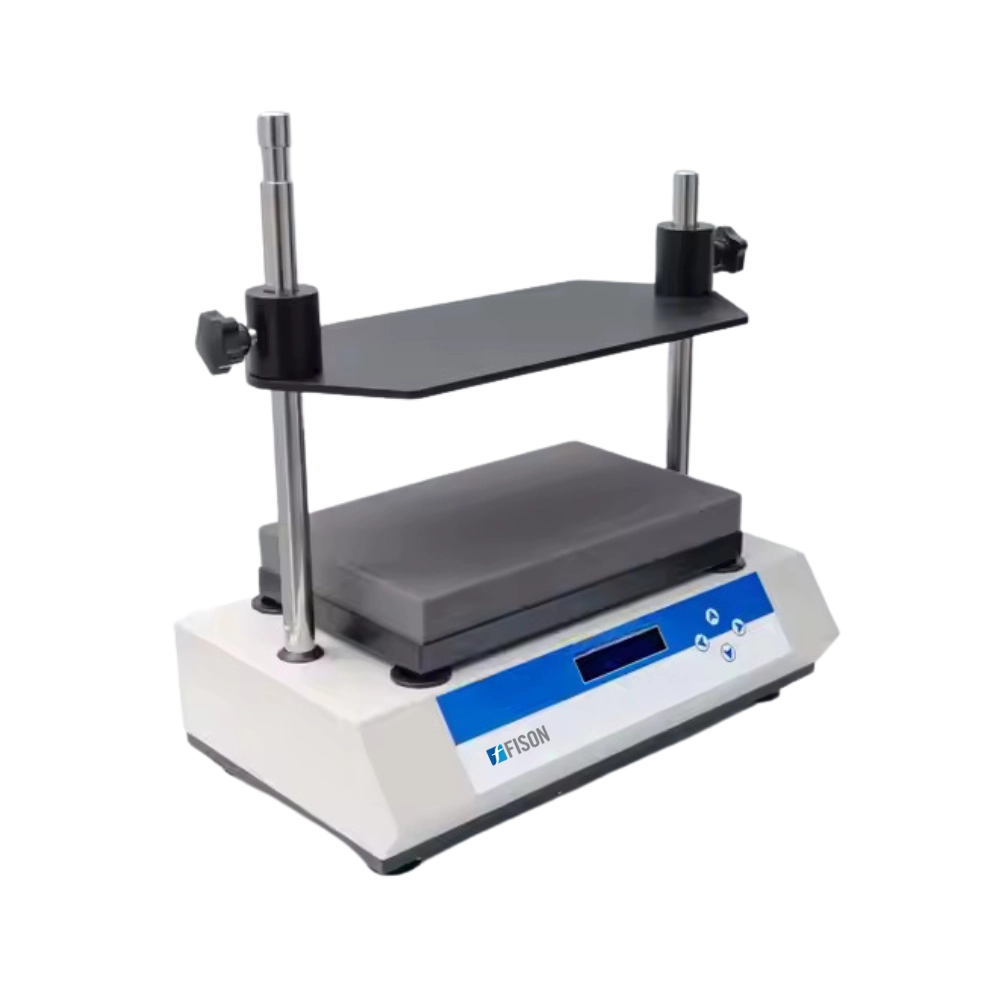

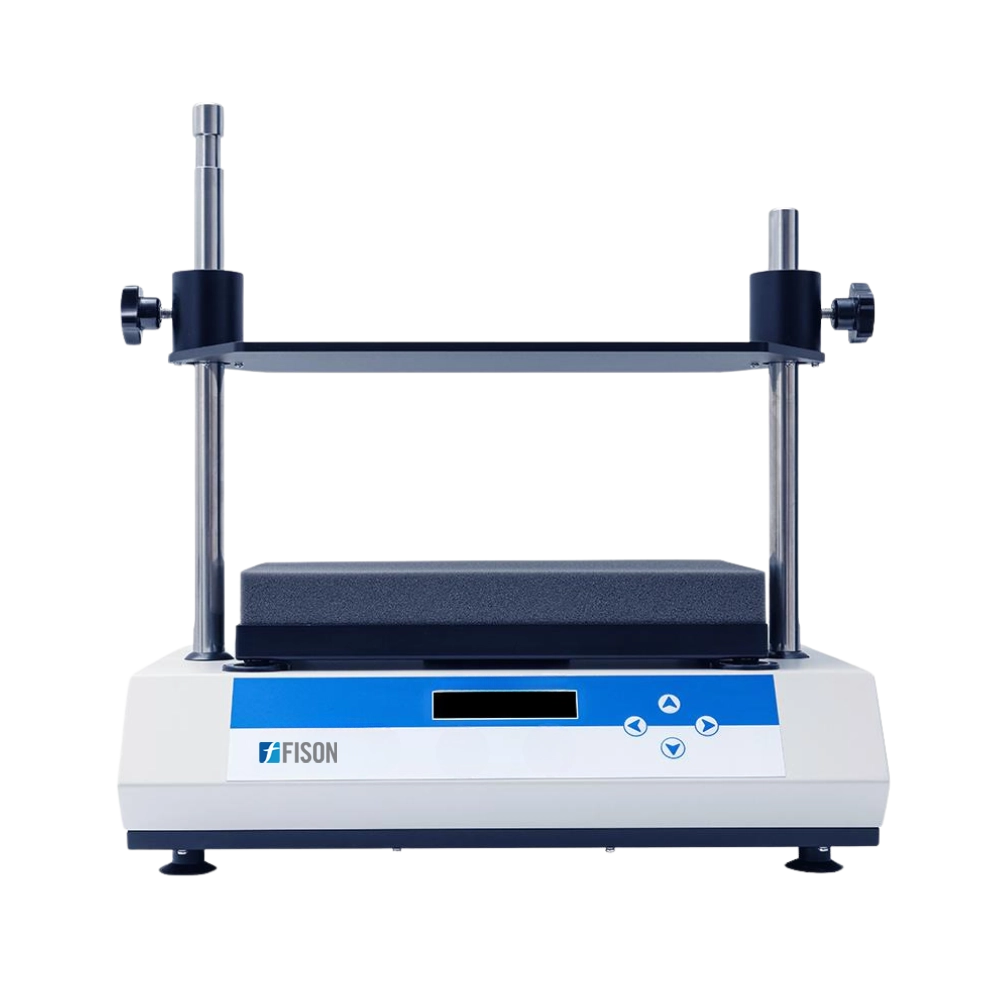

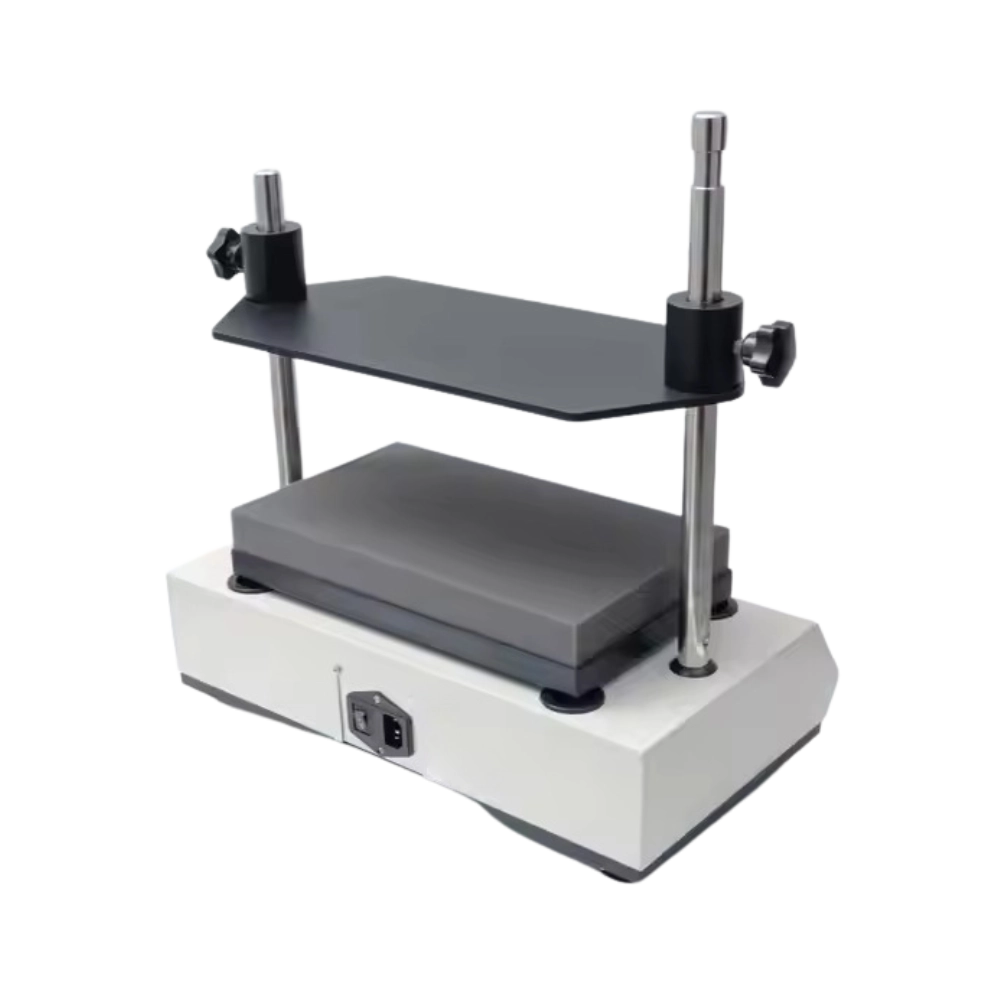

Multi-tube Vortex Mixer FM-MTVM-B100
Multi-tube Vortex Mixer FM-MTVM-B100 offers a versatile speed range of 500 to 2500 rpm, making it suitable for gentle mixing and agitation for laboratory requirements. Its advanced brushless motor ensures quiet, efficient, and reliable operation. This includes a pulse mode crafted for quick, intermittent bursts of mixing, allowing sample processing. Our Vortex Mixer uses microprocessor control for precise adjustment of speed, time, and mixing modes.
Specifications
| Speed | 500rpm to 2500rpm |
| Speed Control Accuracy | ±1rpm |
| Timer | 1min to 99h59m/0: infinite time |
| Intermittent Interval Timer | 1 to 99S |
| Intermittent Running Timer | 1 to 999S |
| Amplitude | 3.6mm |
| Maximum Load | 4.5kg |
| Top Fixing Panel Size (W×D) | 310×205 mm |
| Power Supply | AC 100 to 230V, 50/60Hz |
| Power Consumption | 75W |
| Dimension (W×D×H) | 426 × 246 × 474 mm |
| Weight | 17kg |
Features
- Vibration-free operation
- Enhanced user control settings
- Integrated cable management
- Advanced overload detection
- Programmable mixing cycles
Applications
- Multi-Tube Vortex Mixer FM-MTVM-B100 is ideal for high-throughput laboratories in fields like molecular biology, clinical diagnostics, and chemistry. It efficiently mixes multiple samples simultaneously, enhancing productivity and precision in sample preparation.
Accessories Optional
- For tubes 50 × Φ10 to 12mm
For tubes 50 × Φ11 to 13mm
For tubes 50 × Φ14 to 17mm (15ml Centrifuge Tube)
For tubes 15 × Φ22 to 26mm
For tubes 15 × Φ25 to 29mm (50ml Centrifuge Tube)
Replaceable tray (Upper)
Replaceable tray (Lower)
For tubes 10 × Φ36 to 40mm
Φ17mm plastic tube rack (For 96*10ml Virus sampling tube)
Φ26mm plastic tube rack
