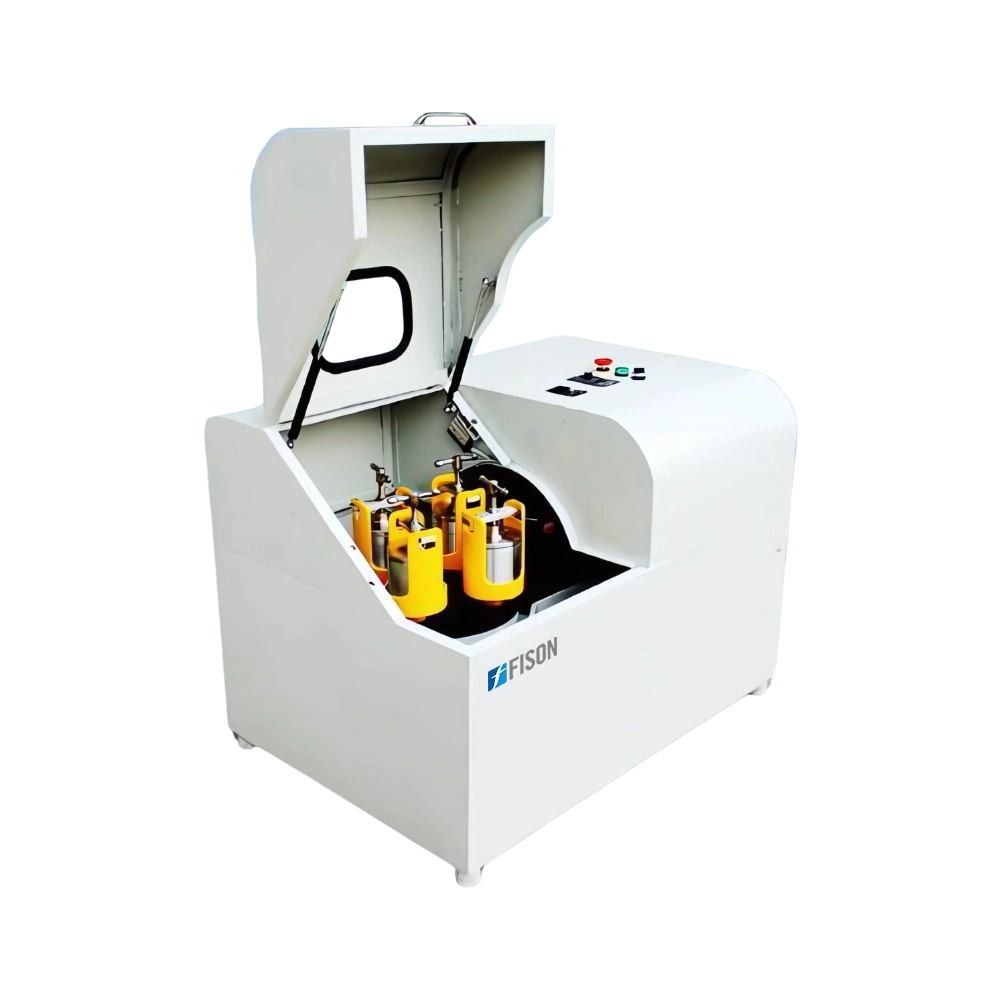

Fison Planetary Ball Mill FM-PBM-A125 is designed for high-efficiency grinding with an 8 L capacity and a jar rotational speed of 850 rpm, delivering particle sizes down to 0.1 μm. Operating through impact and friction forces, it ensures effective sample processing across a wide range of materials. The mill features simultaneous revolution and rotation, adjustable directional settings, user-friendly controls, and power-off protection for safe and convenient operation. Its low-noise, wear-resistant design supports continuous use, while the gear and belt drive system provides stable performance, high grinding efficiency, and uniform particle size reduction for demanding laboratory and research applications..
$6,562.00
| Capacity | 8L |
| Jar Rotational Speed | 850rpm |
| Turning Speed | 12rpm |
| Working Principle | Impact and friction force |
| Discharging Granularity | Down to 0.1μm |
| Rotational Speed Ratio | 1: 2 |
| Drive Mode | Gear drive and Belt drive |
| Power | 220VAC, 50Hz, 0.75KW |
| Dimension (L×W×H) | 1040×730×720mm |
| Weight | 170 Kg |
Planetary Ball Mill FM-PBM-A125 is widely used in nanotechnology and materials science, pharmaceuticals and biotechnology, chemistry and chemical engineering, ceramics and metallurgy, environmental science, and electronics and battery research.
