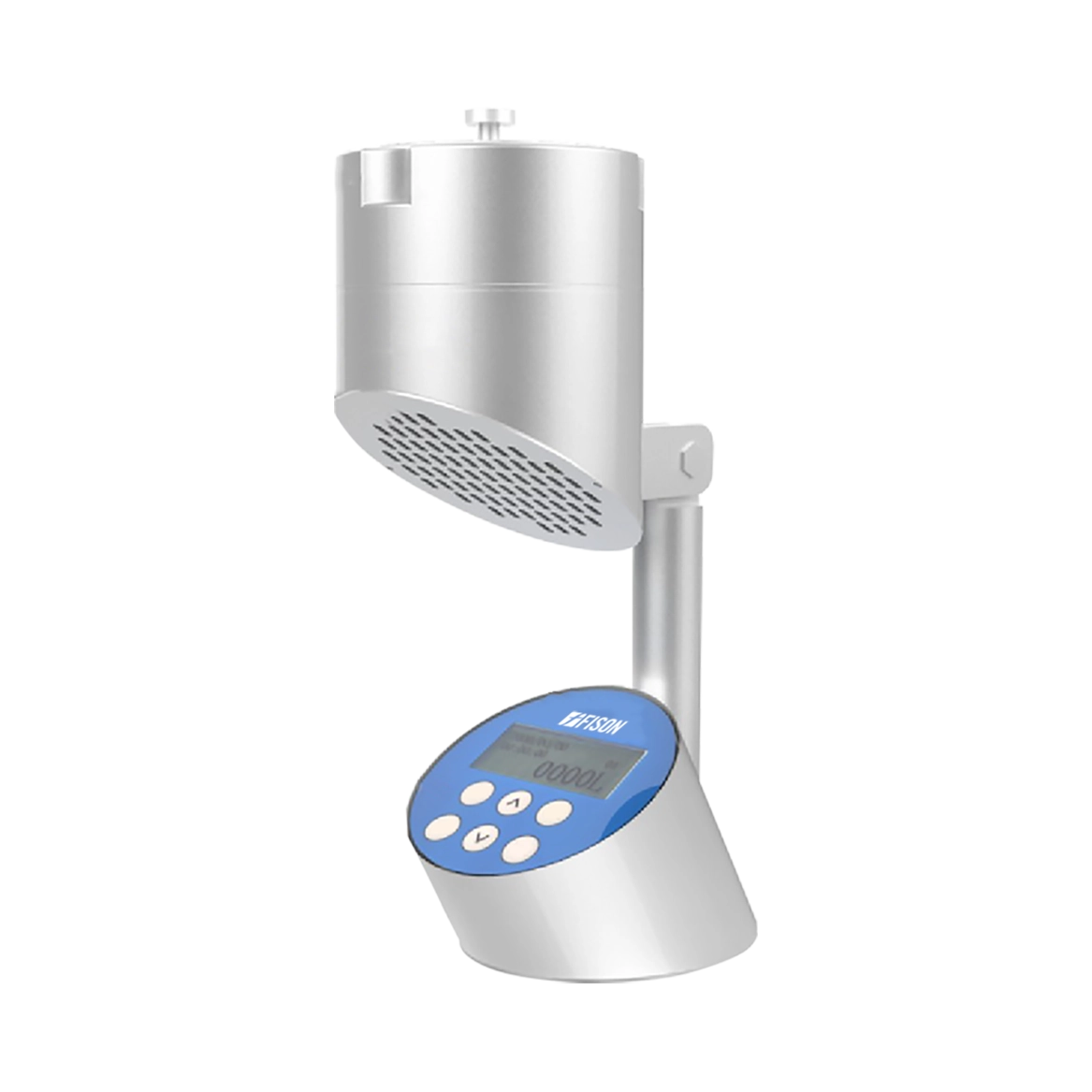

Portable Air Sampler FM-PAS-A101 offers a flow rate of 100 L/min and a sampling range of 0.01 to 6.0 m³ for air collection. It uses the isokinetic sampling method to ensure accurate representation of ambient air conditions during collection. The unit features a clear LCD for real-time monitoring, adjustable control volume, and data storage capability, along with alarm indicators for low battery and process status. It is built with aviation aluminum and operates with a rechargeable DC 7.4V / 6800 mAh battery providing 6 to 8 hours of runtime.
$2,555.00
| Flow Rate | 100 L/min |
| Sampling Quantity | 0.01 to 6.0 m³ |
| Flow Velocity of Sampling Holes | 0.4 m/s |
| Ambient temperature | 10 °C to 35 °C |
| Material | Aviation aluminum |
| Structure | PC board control, low noise pump sampling |
| Rechargeable Battery | DC 7.4V / 6800 mAh |
| Operating Time on Battery | 6 to 8 hours |
| Sterile petri dishes | 90 mm diameter |
| Power Supply | AC 110V/220V ±10%, 50Hz/60Hz |
| External Dimension (L × W × H) | 120 × 195 × 300 mm |
| Packing Dimension (L × W × H) | 190 × 380 × 420 mm |
| Net Weight | 2.5 kg |
| Gross Weight | 6.0 kg |
Portable Air Sampler FM-PAS-A101 is used for air quality monitoring and detection of airborne contaminants in medical and healthcare environments, chemical and pharmaceutical industries, aerospace, electro-optics, cosmetics production units, and food processing facilities.
Power cable
Two Petri dishes
1: What is the flow rate of the Portable Air Sampler FM-PAS-A101?
Portable Air Sampler FM-PAS-A101 operates at a flow rate of 100 L/min for fast and efficient air sampling.
2: What sampling quantity can the Portable Air Sampler FM-PAS-A101 handle?
Portable Air Sampler FM-PAS-A101 accommodates a sampling range of 0.01 to 6.0 m³.
3: How does the Portable Air Sampler FM-PAS-A101 ensure accurate sampling?
Portable Air Sampler FM-PAS-A101 uses the isokinetic sampling method to ensure that collected air samples accurately reflect ambient conditions.
4: What materials and construction are used in the Portable Air Sampler FM-PAS-A101?
Portable Air Sampler FM-PAS-A101 is made of aviation aluminum and features a PC board control with a low-noise pump.
5: Does the Portable Air Sampler FM-PAS-A101 have data monitoring capabilities?
Yes, the Portable Air Sampler FM-PAS-A101 has a clear LCD that provides real-time monitoring of essential data.
6: What accessories are included with the Portable Air Sampler FM-PAS-A101?
Portable Air Sampler FM-PAS-A101 comes with a multi-hole collection port, sterile petri dishes, sampling pumps, and a large data storage capacity.
Fison Portable Air Sampler enables controlled collection of airborne particles and microbial contamination monitoring in various environments. The range offers a sample volume of 100 L/min ±5%, a flow rate of 100 L/min, an adjustable sample volume range from 1 to 6000 L, and a sampling quantity from 0.01 to 6.0 m³. Additional parameters include flow velocity of sampling holes at 0.4 m/s and impact speed of 10.8 m/s based on the Anderson impact principle, ensuring consistent sampling performance for laboratory, cleanroom, and field applications.
