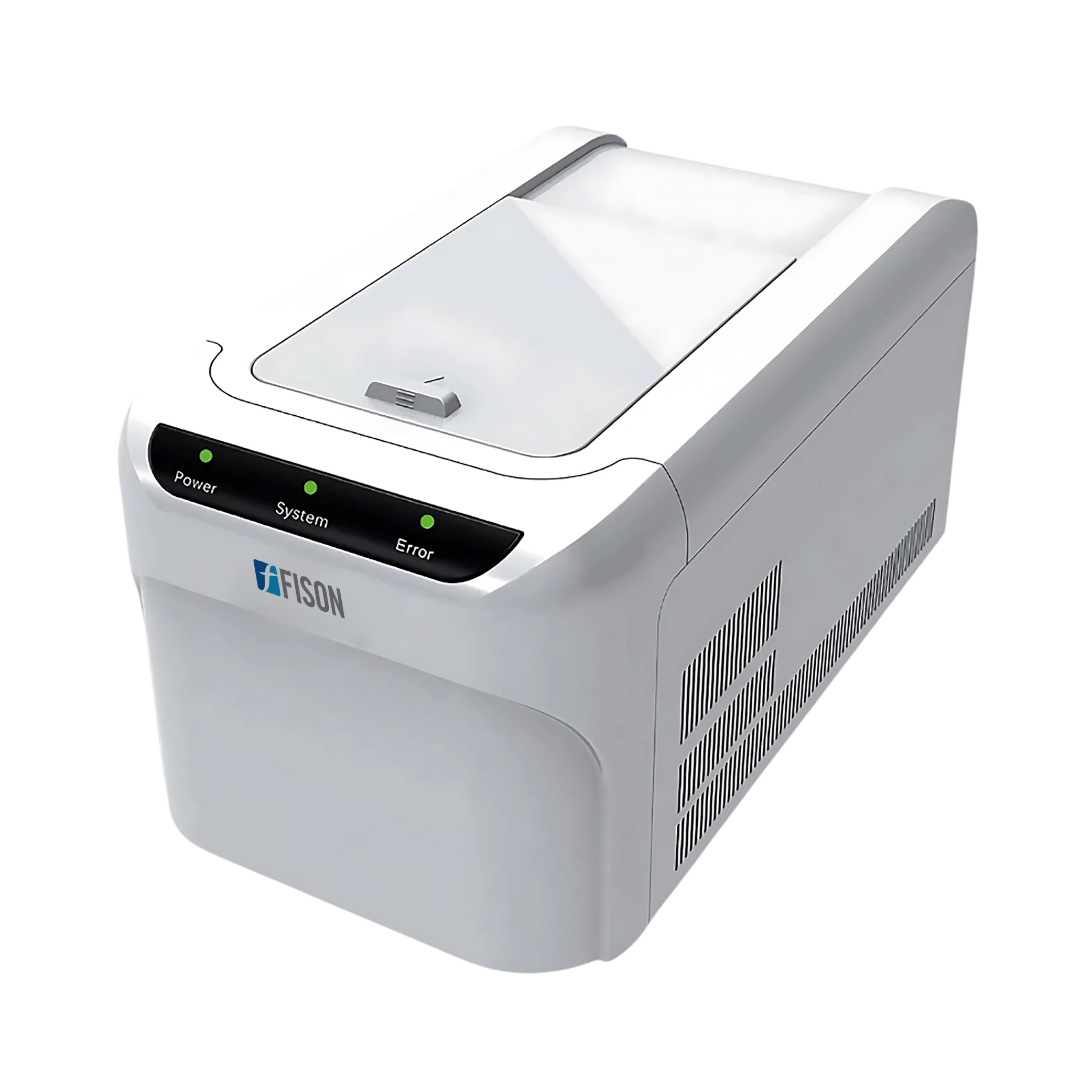

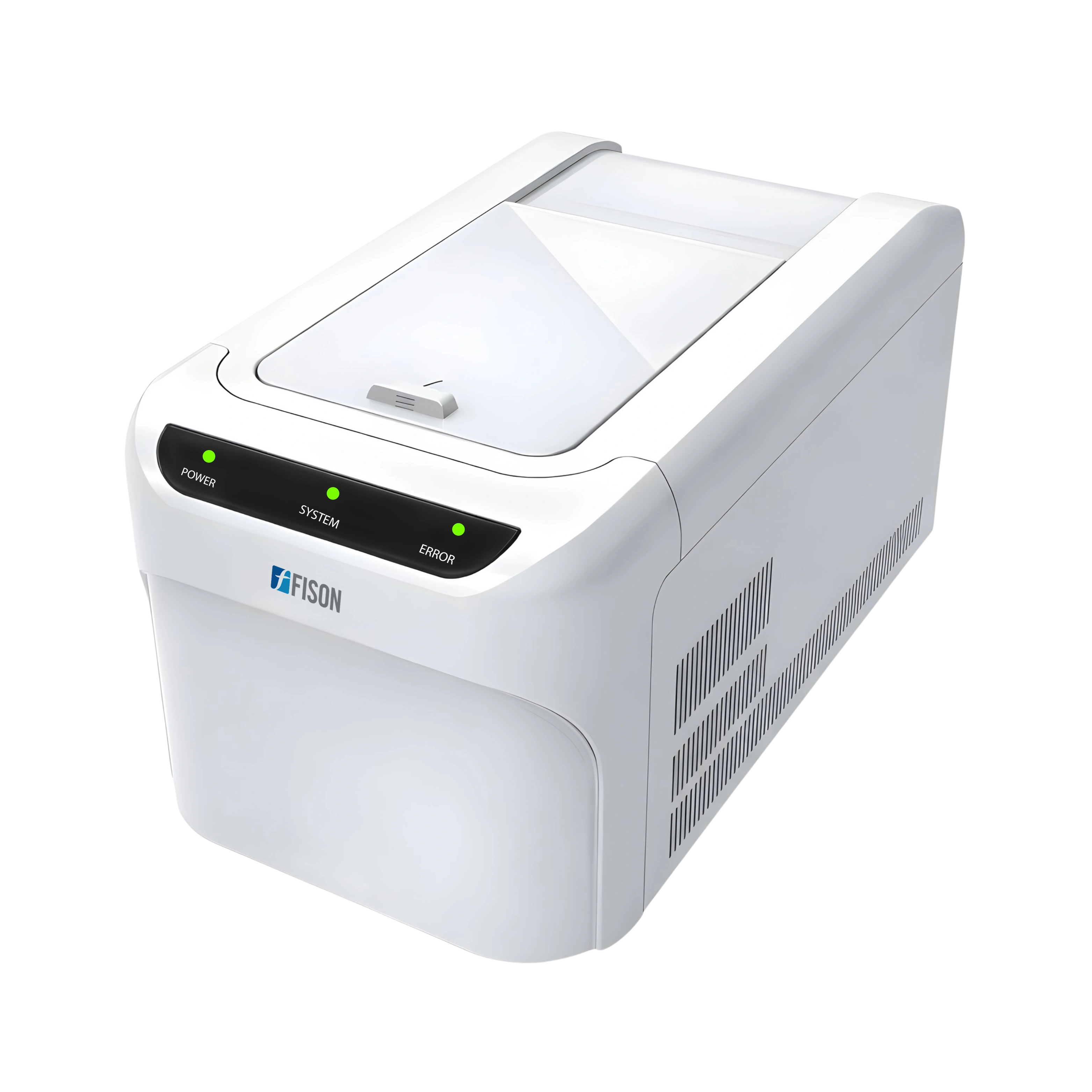

Real-Time PCR FM-RTP-A100 is designed to identify and quantify DNA during the amplification process. Our system accommodates up to 48 samples across 4 channels, operating within a temperature range of 4 to 100°C. Built-in fluorescence detection system, ensure convenient operation. Employed with high-brightness LED light, PD detector, and high-temperature-resistant fiber for precise excitation and detection of DNA.
$12,100.00
| Sample capacity | 48 wells | ||||||||
| Reaction volume | 20 to 120 ul | ||||||||
| Consumables | 0.2 ml PCR tube | ||||||||
| Working temperature | 4 to 99 ℃ | ||||||||
| Accuracy | ≤ 0.1 ℃ | ||||||||
| Type of mode | Semiconductor mode | ||||||||
| Heating performance | 4.5℃ | ||||||||
| Cooling performance | 3.0 °C/s | ||||||||
| Temperature uniformity | ≤± 0.25 ℃ | ||||||||
| Hot cover | Electric heat cover | ||||||||
| Environment temperature | 18 to 30℃ | ||||||||
| Humidity | ≤85 % | ||||||||
| Transportation and storage temperature | 20 to 55℃ | ||||||||
| Transportation and storage humidity | ≤ 85 % | ||||||||
| Type of Detector | PD | ||||||||
| Light source | High brightness | ||||||||
| Display | LED | ||||||||
| Mode of detection media | High temperature resistant professional fiber | ||||||||
| Communication | USB | ||||||||
| Linear range of samples | 10° to 10⁹ | ||||||||
| Sample linearity | R ≥ 0.99 | ||||||||
| Sample repeatability | CV <1.00 % | ||||||||
| Excitation wavelength |
|
||||||||
| Detection wavelength |
|
||||||||
| Power supply | 110 V to 240 V, 50 60 Hz | ||||||||
| Dimension (W×D×H) | 466 × 310 × 273 mm | ||||||||
| Weight | 18 Kg |
