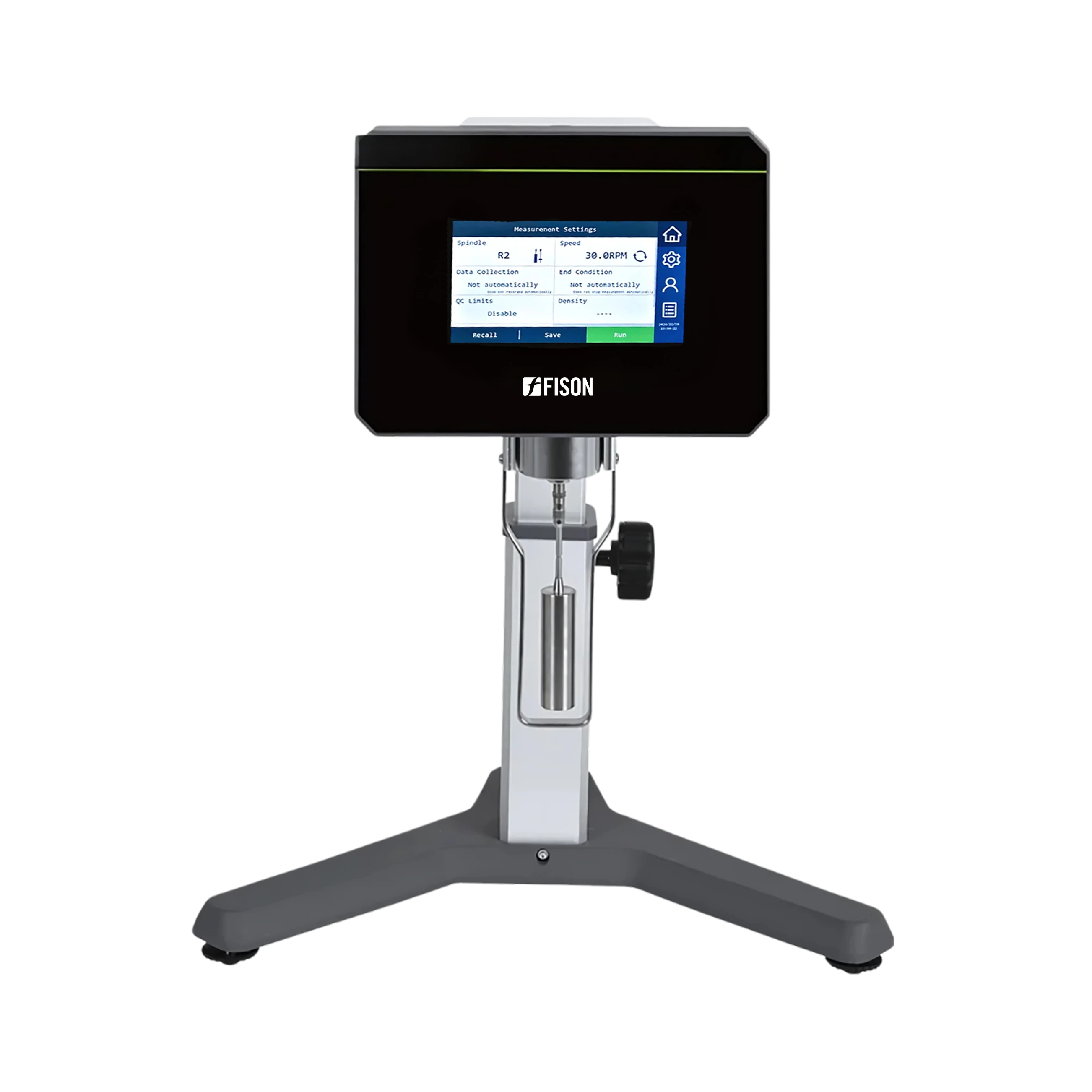

Rotational Viscometer FM-RV-B105
Rotational Viscometer FM-RV-B105 features a spindle speed range of 0.1 to 200 rpm, allowing precise control over rotational testing. It offers a wide measurement range from 40 to 4 × 10⁷ MPa•s, making it suitable for a variety of low to high-viscosity fluids. It is equipped with a synchronous damping system that enhances stability during operation. It includes a shock absorption mechanism to reduce vibration and ensure accurate readings. It comes with a high-resolution TFT display screen that provides clear, easy-to-read data output.
$2,800.00
Specifications
| Spindle Speed | 0.1 to 200rpm |
| Measure Range | 40 to 4 × 10⁷ MPa•s |
| Temperature Measure Range | 0 to 60 ˚C |
| Standard Spindle | No.R2 to R7 Optional No.0 spindle and small sample spindle |
| Measurement Accuracy | ± 1% (Newtonian liquid) |
| Temperature Measurement Accuracy | 0 to 60 ˚C |
| Repeatability Error | ± 0.5% (Newtonian liquid) |
| Display Mode | TFT color LCD display |
| Power Supply | AC110 to 240 12V 1A ; 50 to 60 Hz |
| Dimension (L×B×H) | 370 ×325 ×500 mm |
| Net Weight | 7KG |
Features
- User-friendly interface
- Reliable performance
- Precision control
- Noise reduction system
- Durable construction
Applications
- Rotational Viscometer FM-RV-B105 is ideally designed for measuring the viscosity of liquids in diverse industries such as pharmaceuticals, chemicals, food, and cosmetics. It ensures accurate and reliable results, making it highly suitable for both research applications and quality assurance processes.
Frequently Asked Question
1: What type of fluids can the Rotational Viscometer FM-RV-B105 measure?
The Rotational Viscometer FM-RV-B105 offers a wide measurement range from 40 to 4 × 10? MPa•s, making it suitable for both low and high-viscosity fluids. It can handle everything from thin liquids to thick substances with precision. This makes it versatile for various laboratory and industrial applications.
2: How does the Rotational Viscometer FM-RV-B105 ensure stable and accurate readings?
The Rotational Viscometer FM-RV-B105 is equipped with a synchronous damping system and a shock absorption mechanism. These features minimize vibration and enhance stability during testing. As a result, customers can trust it for reliable and consistent measurements.
3: Is the Rotational Viscometer FM-RV-B105 easy to operate and monitor?
Yes, the Rotational Viscometer FM-RV-B105 comes with a high-resolution TFT color LCD display. This clear interface makes it simple to read and adjust data settings. Users can monitor viscosity measurements in real time with ease.
4: What is the accuracy level of the Rotational Viscometer FM-RV-B105?
The Rotational Viscometer FM-RV-B105 provides ±1% measurement accuracy for Newtonian liquids and a repeatability error of only ±0.5%. This high precision ensures dependable testing results. Customers can confidently use it for applications requiring strict accuracy.
5: What spindles are included with the Rotational Viscometer FM-RV-B105?
The Rotational Viscometer FM-RV-B105 comes with standard spindles No. R2 to R7. Optional spindles such as No.0 and a small sample spindle are also available. This gives customers flexibility to measure a wide range of sample volumes and viscosities.
