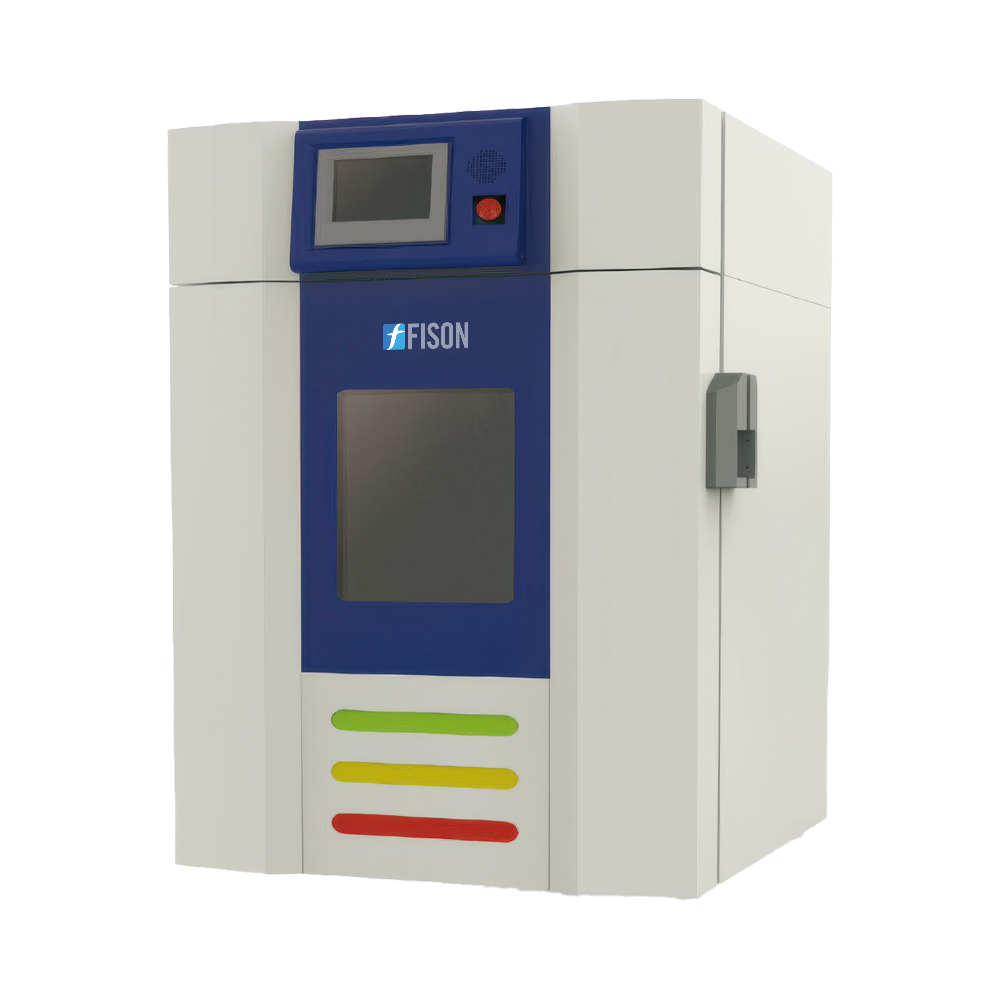

Sand and Dust Chamber FM-SDC-A102
Sand and Dust Chamber FM-SDC-A102 is designed with a 1500-liter test volume for testing large or multiple samples. It has an adjustable temperature range from RT +20°C to +80°C for reliable performance evaluation under varying thermal conditions. Its anti-backflow mechanism ensures dust particles do not re-enter the system, maintaining test integrity and protecting internal components. Our test chamber features a 7-inch touchscreen providing intuitive control and real-time test monitoring.
Specifications
| Test Volume | 1500 L |
| Temperature Range | RT + 20 to +80 ℃ adjustable |
| Selective Dustproof | IP5X (Dustproof Test, increase or no negative pressure) IP6X (Seal Test, increase negative pressure) |
| Standard | IEC60529:2001 |
| Power | AC230V ±10%, 50Hz, 3/N/PE |
| Sample Holder Dimension | 980 × 1480 mm |
| Test Space Dimension (W × D × H) | 1000 × 1500 × 1000 mm |
Features
- Customizable design architecture
- Independent regulation of temperature and humidity
- Modular construction
- Real-time observation window
- Automated control of dust/sand flow and wind speed
Applications
- Sand and Dust Chamber FM-SDC-A102 is widely used in sectors like military, automotive, electronics, and industrial manufacturing for ingress protection testing and durability assessment.
Accessories
1 Stainless steel shelve
1 Screen sieve
