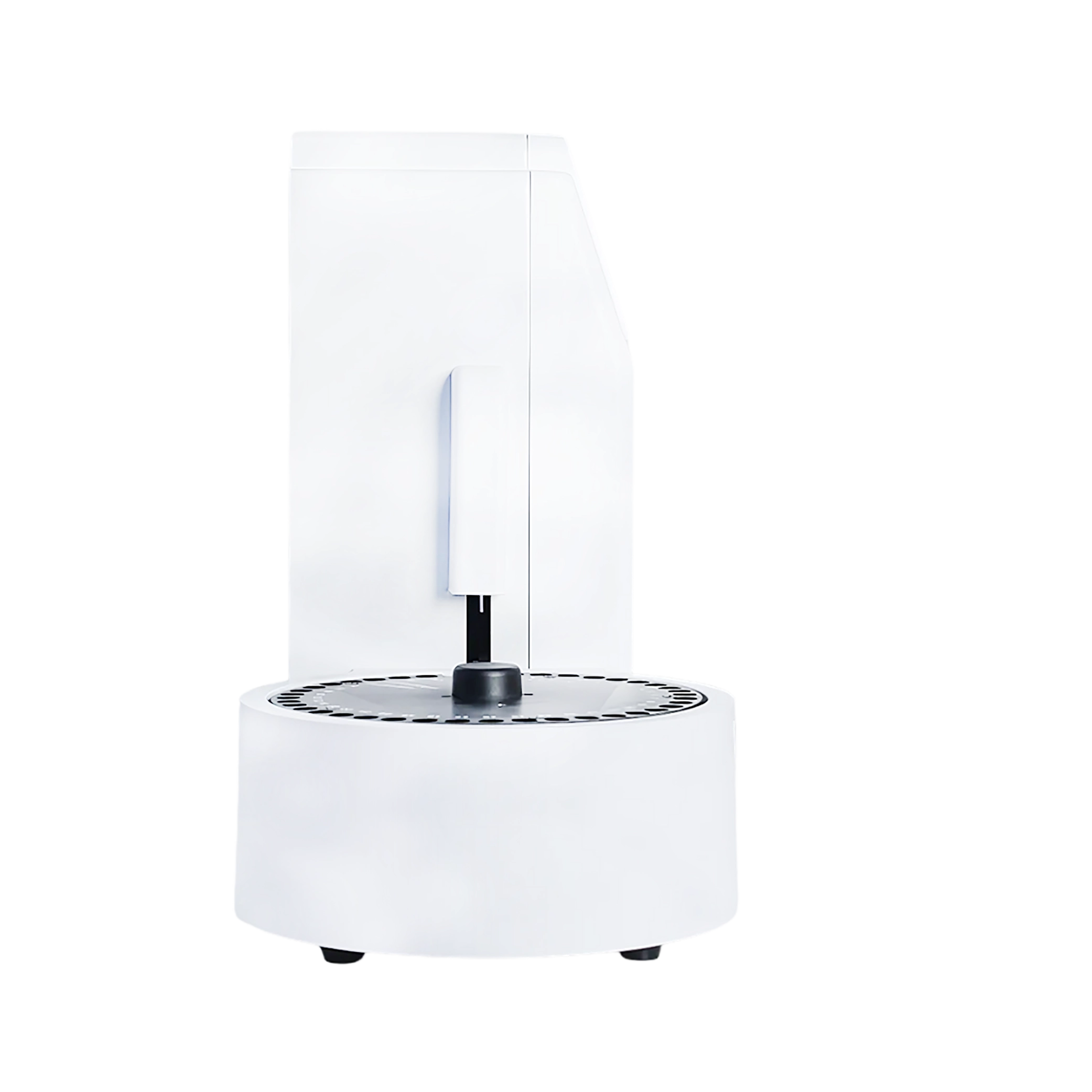

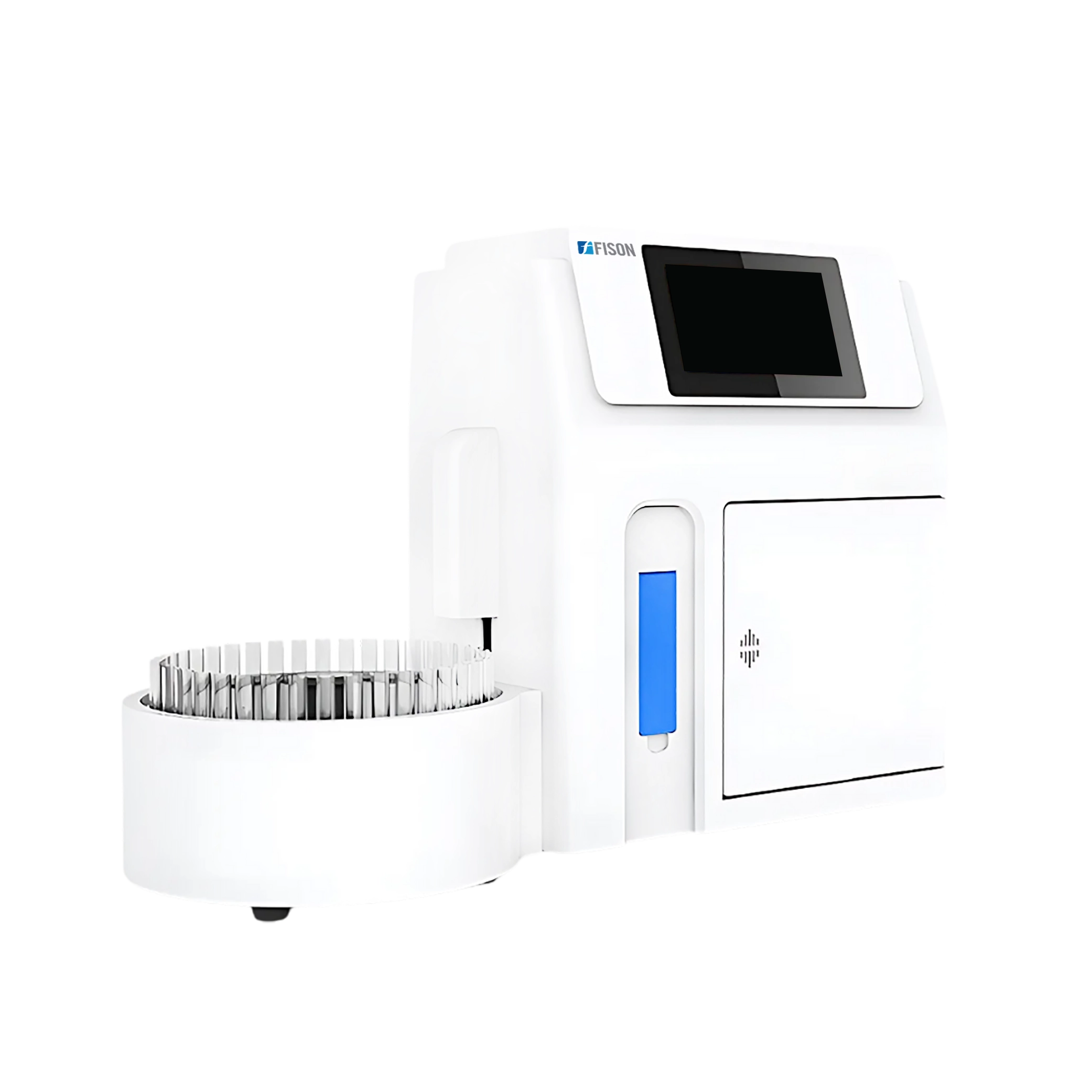

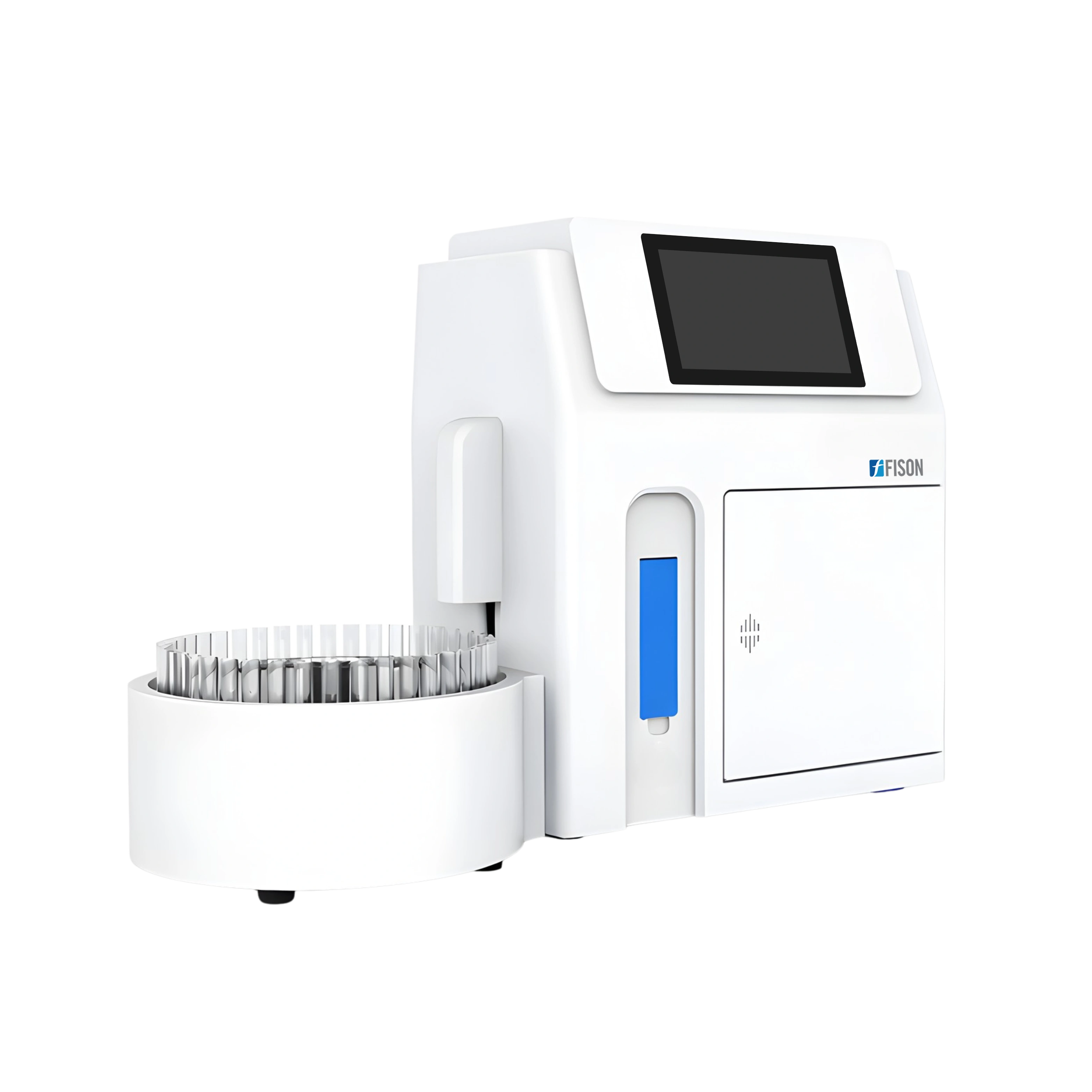

Semi-auto Electrolyte Analyzer FM-SAE-A100
Semi-auto Electrolyte Analyzer FM-SAE-A100 determines ion concentrations in 200 μL sample volume within 25 seconds. Incorporated with latest ion selective electrode technology for reliable analysis. Designed with automatic monitoring and filtering of air bubbles to improve accuracy. Features wave and pipeline flushing to prevent cross-contamination. Our Semi-auto Electrolyte Analyzer facilitates quantitative diagnosis of electrolyte disorders.
Specifications
| Sample Type | Whole blood, serum, plasma, cerebrospinal fluid, dilute urine |
| Sample Volume | 200 μL |
| Measuring Time | ≤ 25s |
| Analysis Method | Ion selective electrode (ISE) |
| Measuring Parameters | K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, TCO2, pH, AG |
| Measuring Range | K+ 0.5 to 20 mmol/L Na+ 15 to 200 mmol/L Cl- 15 to 200 mmol/L Ca2+ 0.1 to 6 mmol/L TCO2 2 to 70 mmol/L pH 4 to 9 |
| Resolution | K+ 0.01 mmol/L Na+ 0.01 mmol/L Cl- 0.01 mmol/L Ca2+ 0.01 mmol/L TCO2 0.1 mmol/L pH 0.01 |
| Working Temperature | 10 to 40 ℃ |
| Relative Humidity | ≤ 80% |
| Atmospheric Pressure | 86 to 106 kPa |
| Number Of Sample Positions | 30 |
| Injection Mode | Manual |
| Calibration | Automatic and Manual calibration |
| Display | 7-inch HD touch screen |
| Language | Customizable |
| Storage | Up to 50,000 test results |
| Printer | Built-in thermal printer |
| Interface | RS232 port |
| Power Supply | AC 110 to 240 V, 50 to 60 Hz, 70VA |
| Dimensions (W × D × H) | 405 × 214 × 471 |
| Packaging Dimensions (W × D × H) | 500 × 390 × 530 |
| Net Weight | 13.13 kg |
| Gross Weight | 16.73 kg |
Features
- Sample volume detection
- Automatic potential tracking correction
- 7-inch high-definition touch screen
- Easy integration with Laboratory Information System
- Auto power shut off protection
- Fault warning alarm
Applications
- Semi-auto Electrolyte Analyzer helps in clinical routine diagnostics and emergency assessment of ion concentrations during electrolyte imbalances.
