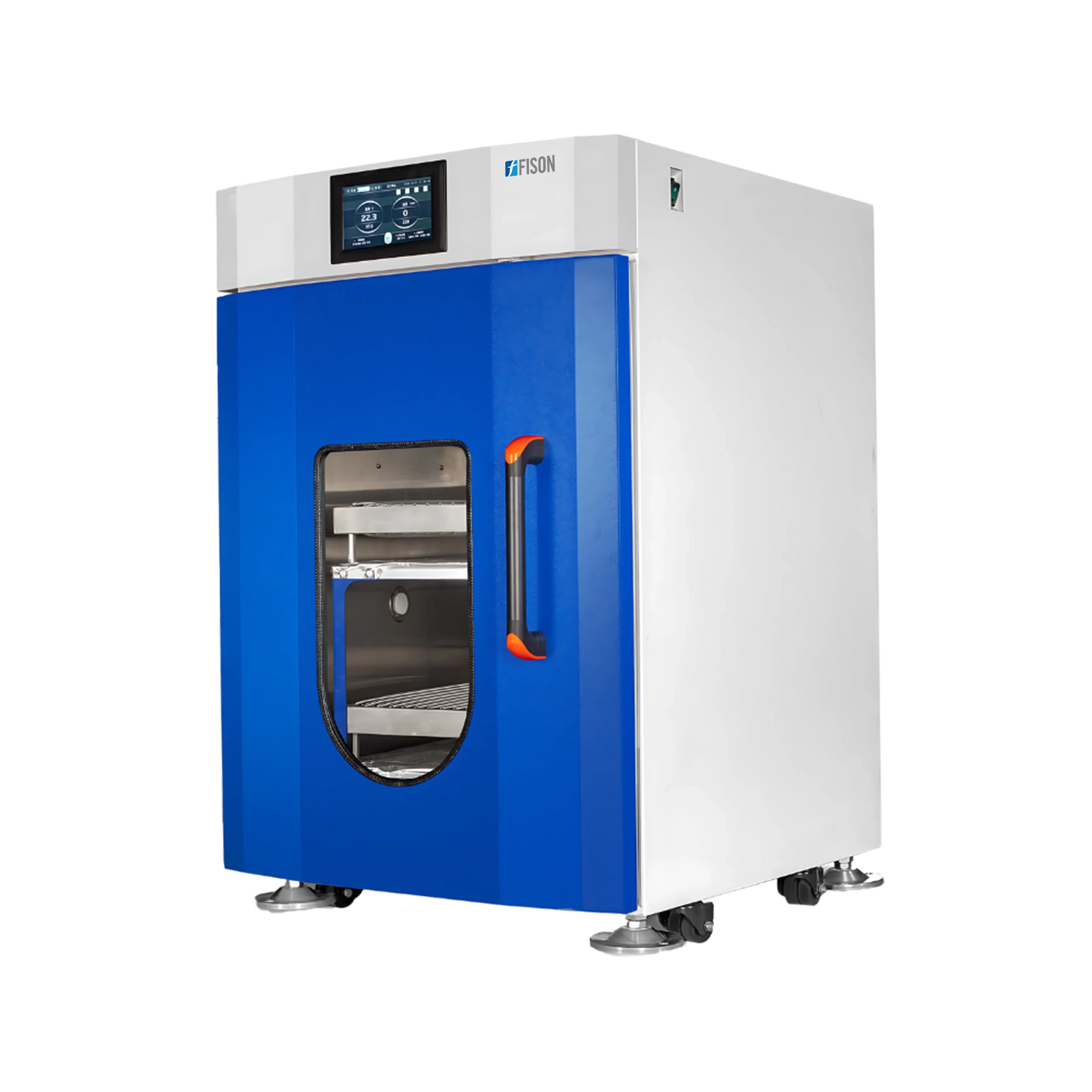

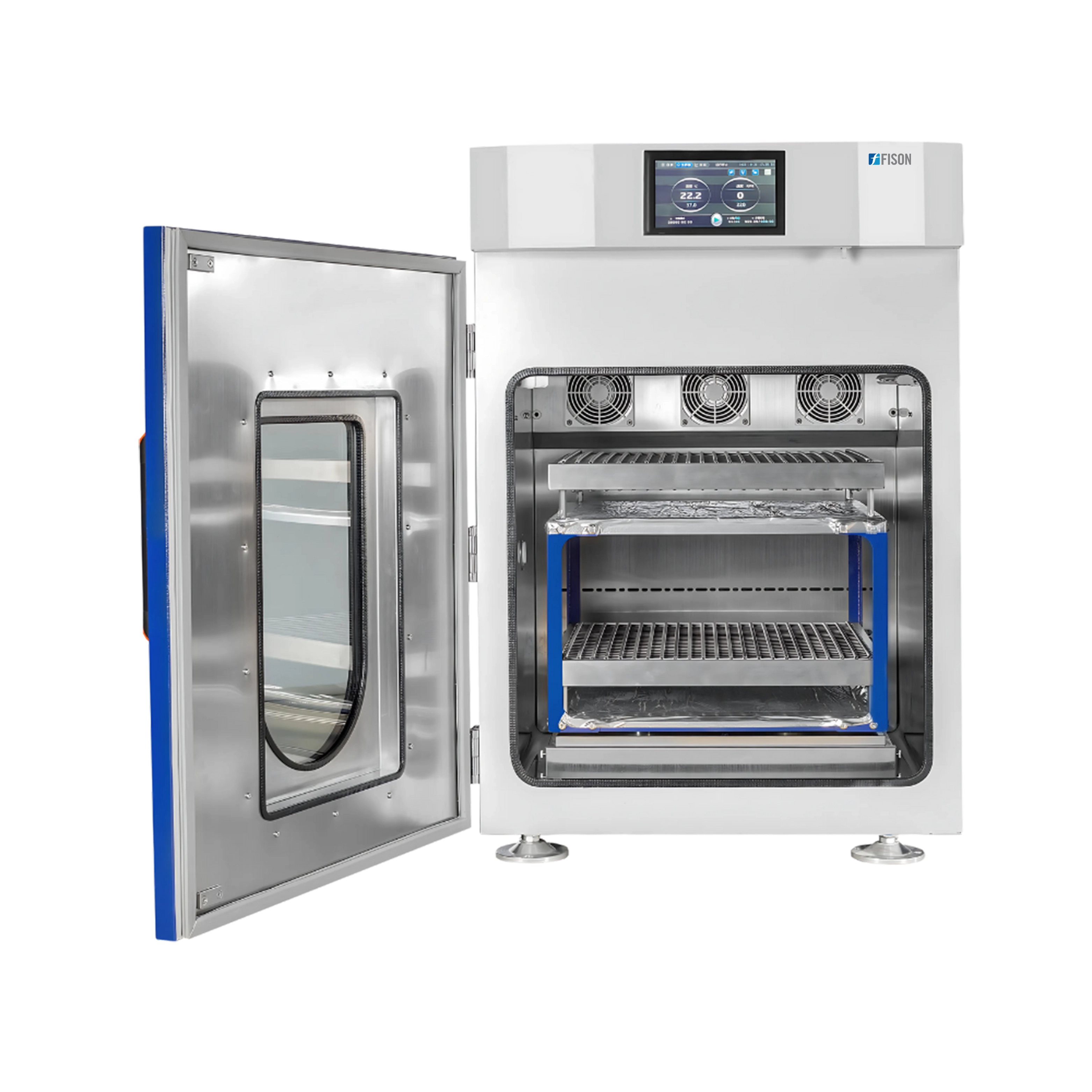

Shaking Incubator FM-IS-A105 Shaking Incubator FM-IS-A105

Shaking Incubator FM-IS-A105

Shaking Incubator FM-IS-A105 is equipped with a 7.0-inch LED touch operation screen, providing control of temperature, speed, and settings. The unit features a heatless fan to provide efficient airflow while maintaining a safe, controlled environment for sensitive samples. The energy-saving incubator minimizes power consumption while ensuring optimal performance. Our shaker has uniform temperature control and even heat throughout the chamber.

Download Catalog

Specifications

Total Volume 310 L
Temperature Range 4 to 60°C
Rotation Speed 2 to 300 rpm
Speed Control Accuracy ± 1 rpm
Temperature Display Resolution 0.1°C
Temperature Distribution ± 0.5°C at 37°C
Ambient Temperature Range 5 to 35°C
Sterilization Method UV sterilization
Shaking Throw 26 mm
Shaking Motion Orbital
Temperature Sensor Pt-100
Maximum Loading Capacity 35 kg
Temperature Control Mode PID control
Maximum Working Height 340 mm
Control Interface Push-button operation panel
Timer 0~999 hours
Maximum Stackable Units Up to 3 units
Maximum Power Consumption 1300 W
Power Supply 115/230 V ± 10%, 50/60 Hz
Tray Size 520 × 880 mm
Tray Capacity for Shake Flasks 25 × 250 ml or 16 × 500 ml or 9 × 1000 ml
Dimensions (W × D × H) 710 × 776 × 1080 mm
Internal Dimensions (W × D × H) 680 × 640 × 692 mm
Weight 160 kg

Features

  1. Optimized PID settings
  2. High culture throughput
  3. Independent unit operation
  4. Balanced oscillation system
  5. Temperature overshoot protection

Applications

  • Shaking Incubator FM-IS-A105 offers precise temperature and speed control with built-in UV sterilization, ensuring contamination-free incubation and shaking. Its stackable design saves space and is ideal for lab cell culture, microbial fermentation, and molecular biology.

Accessories Optional

  • Removable Shake Tray
    125 mL Flask Clamp
    250 mL Flask Clamp
    500 mL Flask Clamp
    1000 mL Flask Clamp
    2000 mL Flask Clamp
    Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28)
    Adjustable Angle Test Tube Rack (15 mL×60)
    Adjustable Angle Test Tube Rack (50 mL×30)

Alternative Models Of Shaking Incubator

Fison Shaking Incubator has an integrated digital speed monitor that allows precise control over shaking speeds and consistent sample agitation. The incubator optimizes dark culture capabilities for sensitive biological cultures that require low-light exposure. The incubator's vibration-free stacking feature enables the stacking of multiple units without disrupting the shaking or incubation process. They feature a balanced oscillation system that requires uniform and consistent shaking, essential for optimal sample mixing and culture growth. Our shaking incubator protects photosensitive media from degradation, ensuring accurate and reliable results.
