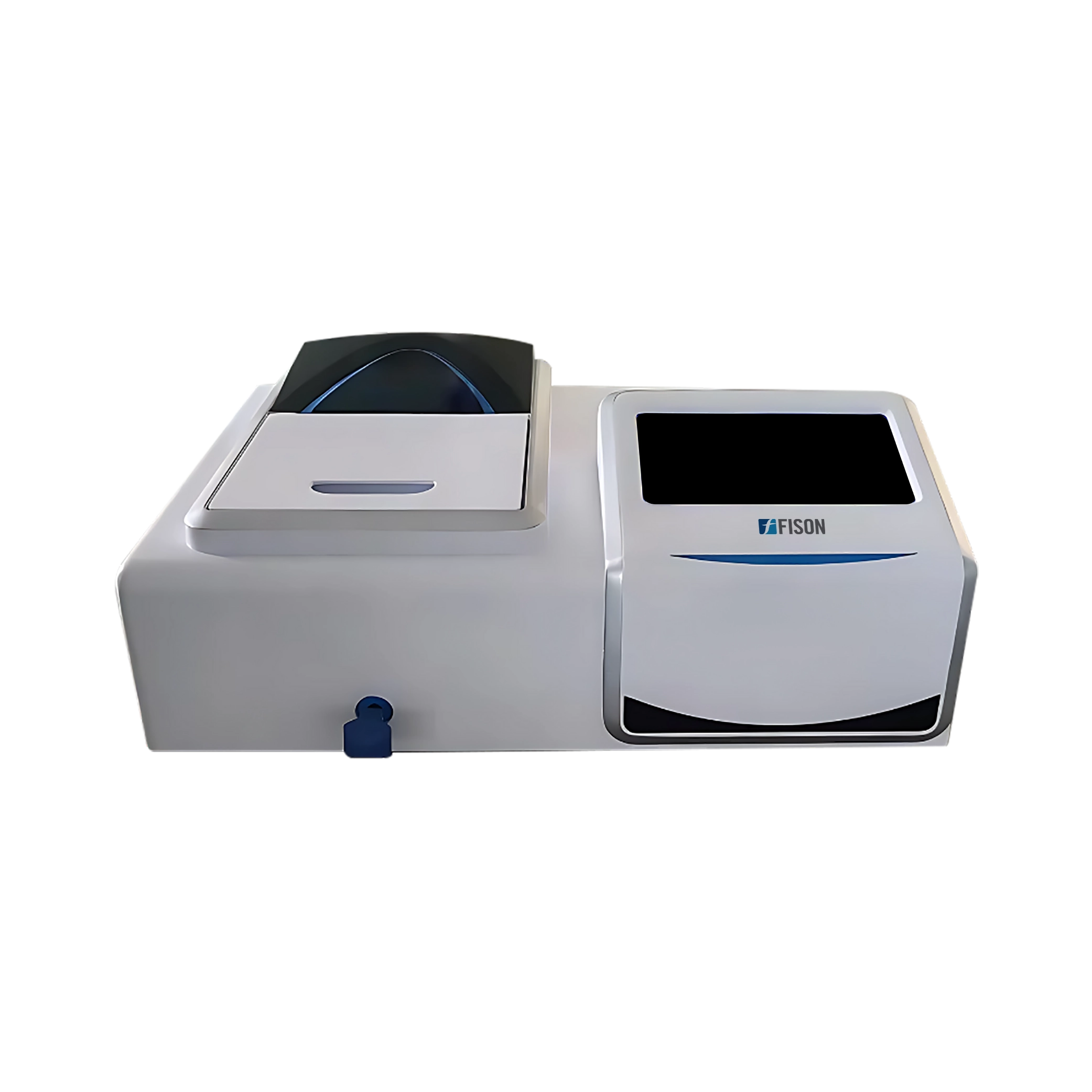

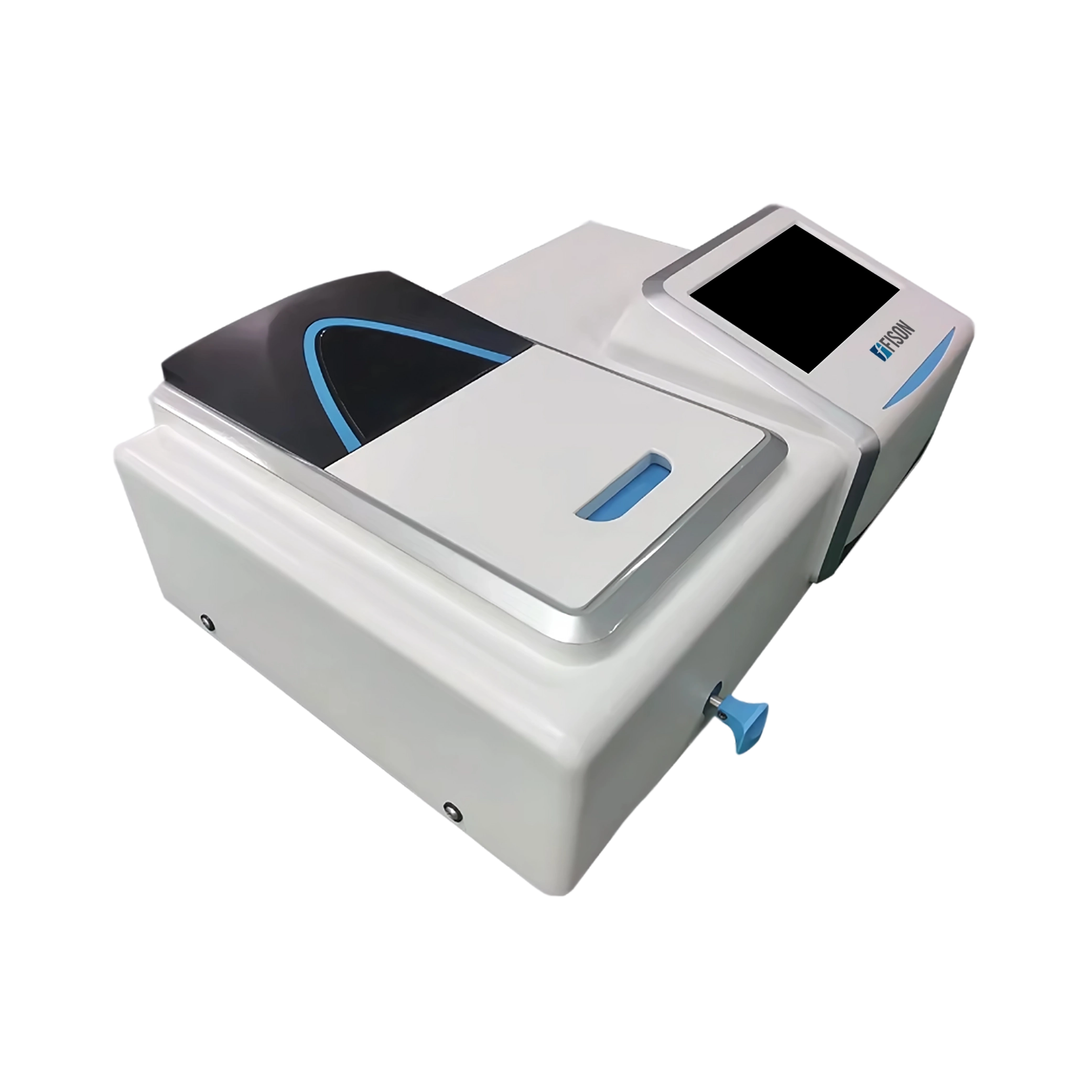

Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B200
Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B200 offers wide wavelength range of 190 to 1100 nm, catering to diverse analytical needs. It supports various measurement modes including T, A, C, E and derivative methods for versatile analysis. Its advanced grating monochromator ensures high wavelength accuracy. Built with premium optics, it combines reliability and adaptability for demanding laboratory works.
Specifications
| Wavelength range | 190 to 1100 nm |
| Spectral bandwidth | 2 nm |
| Wavelength accuracy | ±0.5 nm |
| Wavelength reproducibility | ≤0.2 nm |
| Monochromator | Single beam, plane grating of 1200L/mm |
| Photometric accuracy | ±0.3%T (0 to 100%T) |
| Photometric reproducibility | ≤0.2%T |
| Working mode | T, A (-0.301 -3A) C, E |
| Stray light | ≤0.1%T (Nal, 220 nm; NaNO2, 340 nm) |
| Baseline flatness | ±0.003A |
| Stability | ≤0.002A/h (at 500 nm, after warming up) |
| Noise | ≤0.2%T/3min (0% line) |
| Detector | Silicon photodiode |
| Display | 7-inch colourful touchscreen |
| Power supply | AC: 90 to 250 V, 50 V/60 Hz |
| Dimension (L×B×H) | 470×325×220 mm |
| Weight | 9 kg |
Features
- PC connectivity via USB
- Automatic data saving
- Multiple measurement methods
- Tungsten halogen lamp
Applications
- Our Spectrophotometer is essential in laboratories for spectroscopic analysis across various fields such as pharmaceutical, environmental monitoring and academic research.
Accessories
4 position 0. To 5 cm manual cell holder
4 glass cells (1 cm)
2 quartz cells (1 cm)
