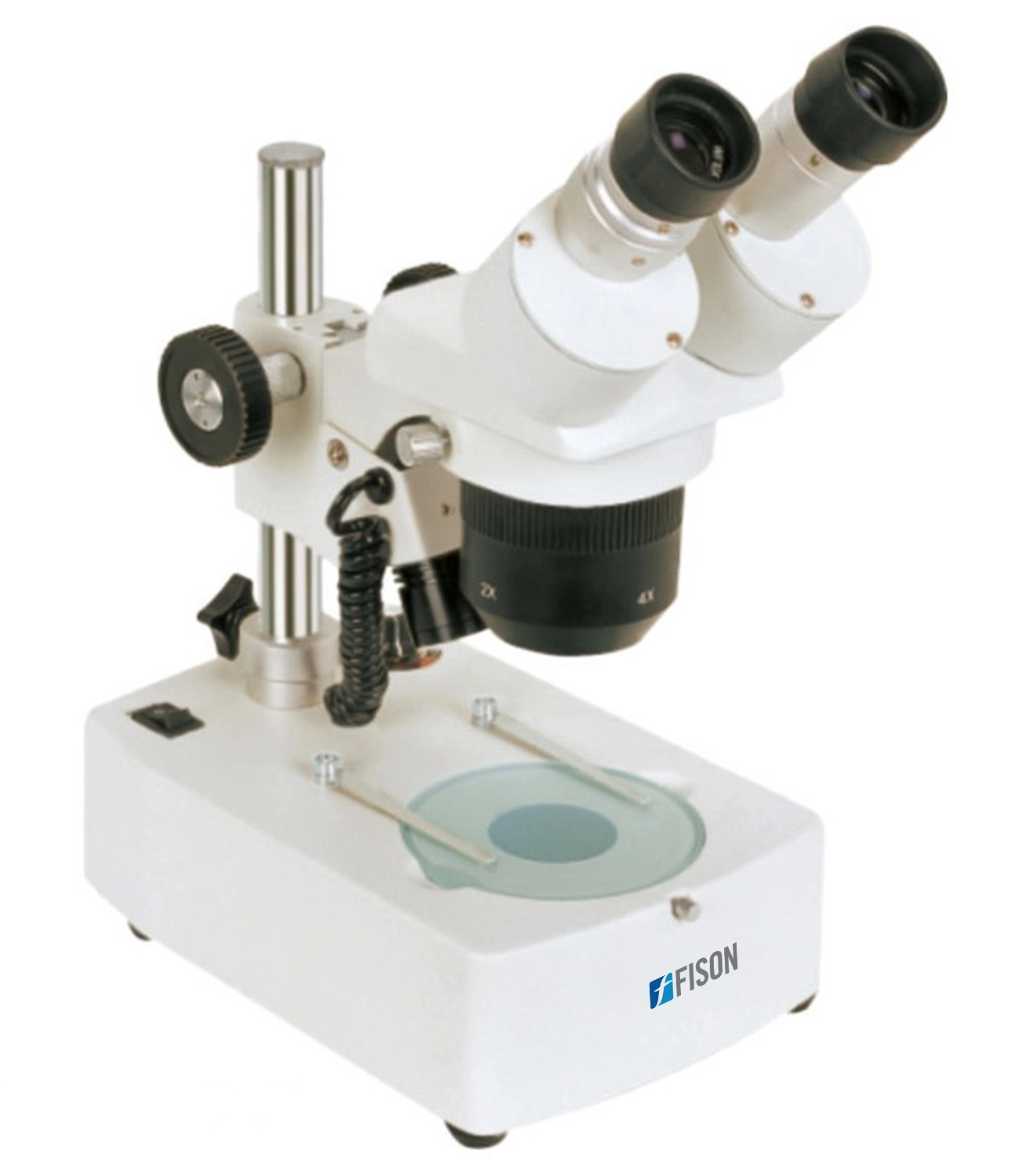

Stereo Microscope FM-SM-A201
Stereo Microscope FM-SM-A201 is an extremely robust, student forward facing binocular stereo microscope. Armed with variable LED upper and lower illumination, rugged design and generous working distance. Features convenient magnification at WF 10 X, it presents sharp, clear images across wide field of view. Inclined 45° binocular head ensures an easy observation and rubber eye-guards provide further comfort. Clean design facilitates its dependable use in classrooms and laboratories.
Specifications
| Main body | Sharp stereo erect image over wide field view |
| Optical system | Greenough system |
| Viewing head | 45° inclined binocular head and unrotable body with locked-in eyepiece |
| Widefield eyepiece | WF 10X / 20 mm |
| Objective | Standard 2 X and 4 X objective |
| Working distance | 72 mm |
| Working board material | Glass board |
| Base size | 115 × 170 mm |
| Stand style | Pillar style stand |
| Plate | Frosted glass |
| Focusing | Coarse focusing knob |
| Illumination | LED with transmitted and incident light |
| Dimension (W × L × H) | 115 × 170 × 230 |
| Net weight | 4 kg |
| Gross weight | 6 kg |
Features
- Forward widefield binocular head
- 45° ocular angle body and locked-in eyepieces
- Dual, variable LED illumination
- Generous 72 mm working distance
- Durable all metal framework pillar stand
- Rechargeable batteries for cordless operation
- Locked on stage clips for specimen holding
Applications
- It is suitable for exploring surface details and fine structures of various materials like wood, metal, solder, semiconductor and stone. Ideal for examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components or virtually any three dimensional objects.
Accessories Optional
Accessories no. Name 1. Eyepiece WF 5 X/ 22 mm 2. Eyepiece WF 15 X / 15 mm 3. Eyepiece WF 20 X / 10 mm 4. Objective 2X and 4X with 72 mm working distance 5. Objective 1X and 2X with 72 mm working distance 6. Objective 1X and 3X with 72 mm working distance 7. Auxiliary plan objective of 0.5X, 0.75X, 1.5X and 2X
