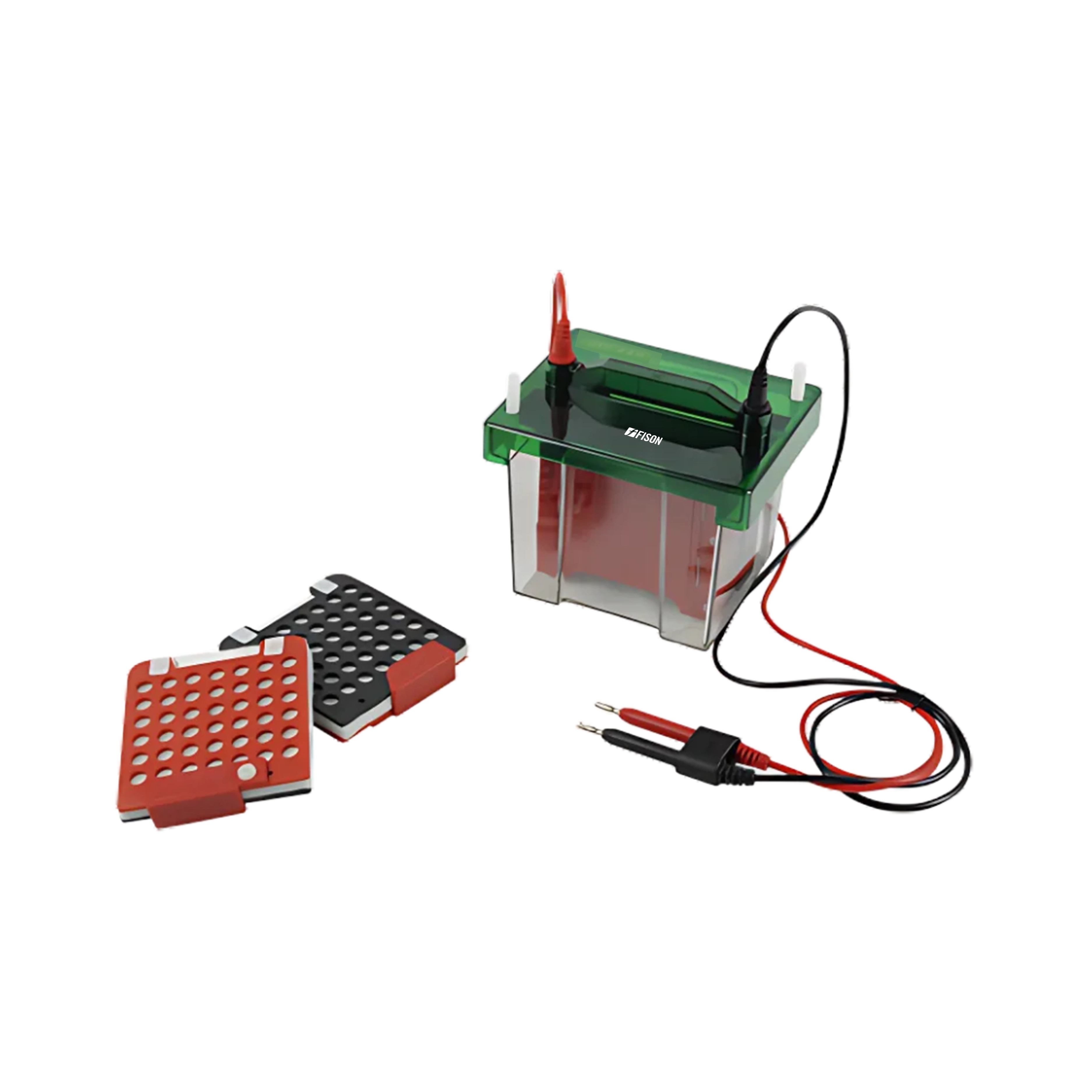

Tank Transfer Protein Blotting System FM-TPB-A101

Tank Transfer Protein Blotting System FM-TPB-A101

Tank Transfer Protein Blotting System FM-TPB-A101 ensures rapid and reliable protein transfer with minimal buffer usage. Its spring-loaded flat anode automatically adjusts to varying gel thicknesses, improving convenience and efficiency. The system’s intuitive hanging buckle keeps gel stacks stable, and multiple gels can be processed simultaneously. Built-in auto shut off and quick transfer times ensures safety. Ideal for western blotting, academic research, and proteomics-based diagnostics applications.

Download Catalog

Specifications

Trans Size (W×L) 100×100mm
Total Buffer Volume 750ml
Dimension (L×W×H) 150×120×115 mm
Net weight 0.8 kg

Features

  1. Robust housing frame
  2. Safe-lock mechanism
  3. Energy-efficient design
  4. Lightweight structure

Applications

  • Tank Transfer Protein Blotting System FM-TPB-A101 can be used in molecular biology and biochemistry laboratories for transferring proteins from gels to membranes. It is especially suitable for western blotting, rapid diagnostics, and high-throughput research environments.

Accessories

  • AccessoriesQuantity
    Lid with cables 1
    Body tank 1
    Core with electrodes 1
    Transfer splint 2
    Fibre pads4

Alternative Models Of Tank Transfer Protein Blotting System

Our Tank Transfer Protein Blotting Systems are engineered for high efficiency electro transfer of proteins and nucleic acids from gel to membrane. It employs a vertical tank-style design, ensuring uniform transfer across the entire membrane surface. With its durable electrode assembly and optimized buffer flow, the system ensures low heat generation and consistent blotting performance. The transparent tank allows easy visual monitoring, while secure latches and easy-to-handle components enhance lab safety and convenience. Ideal for research, academic and diagnostic labs.
