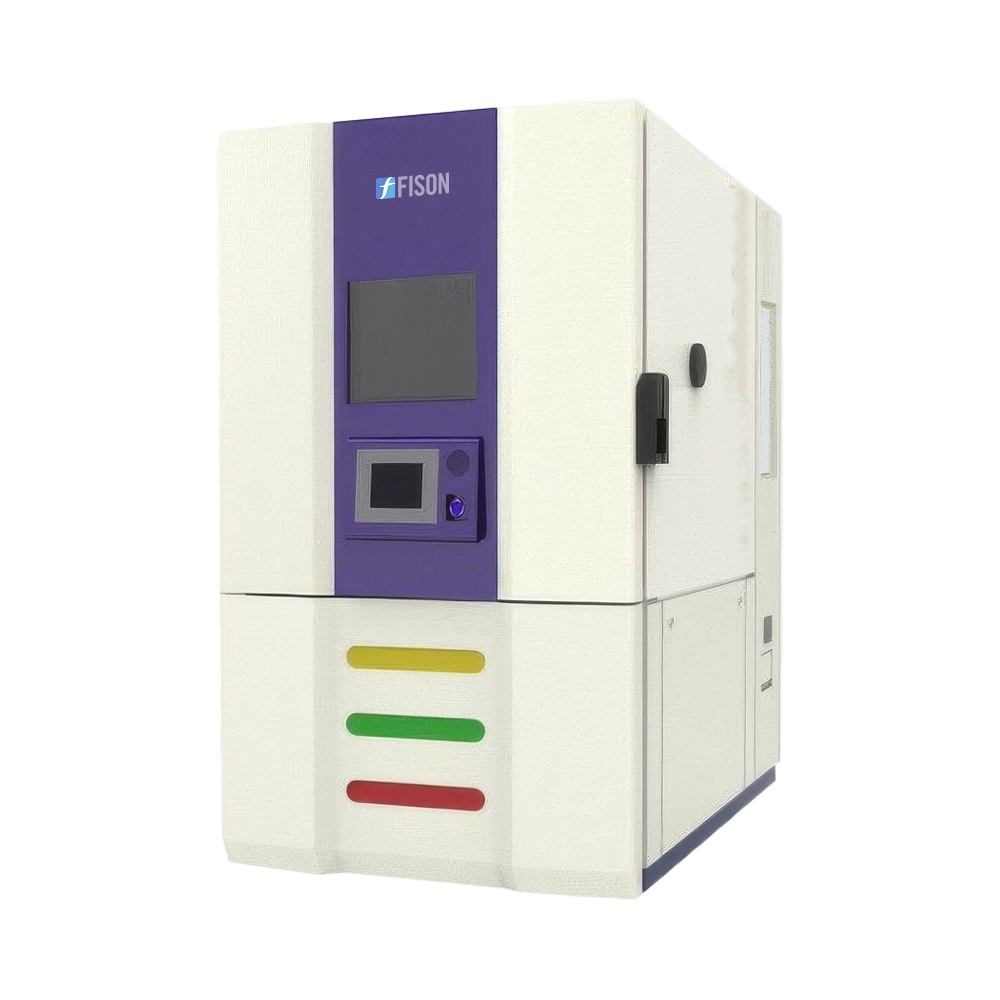

Fison Temperature Test Chamber FM-TTC-A101 offers a 190L capacity for specimens up to 20 kg, operating across a -40 to 180°C range. Heating and cooling rates reach 4.1°C/min and 3.5°C/min, with a no-defrosting design for continuous low-temperature testing. Temperature constancy of 0.1 to 0.5°C and homogeneity of 0.5 to 2.0°C ensure consistent conditions. A 32-bit controller with a 7-inch touchscreen manages control and monitoring, featuring auto return to room temperature and built-in maintenance reminders that help reduce downtime and simplify long-term chamber upkeep.
$18,323.00
| Capacity | 190L |
| Temperature Range | -40 to +180 °C |
| Max. Specimen Weight | 20 kg |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Heating Rate | 4.1 °C/min |
| Cooling Rate | 3.5 °C/min |
| Cooling Methods | Air-cooled/Water-cooled |
| Test Space Dimension (W × D × H) | 580 × 450 × 750 mm |
| External Dimension (W × D × H) | 870 × 1550 × 1800 mm |
Temperature Test Chamber FM-TTC-A101 is used for controlled temperature testing of materials, components, and finished products. It is widely used in pharmaceutical and biotechnology laboratories, materials science, aerospace, automotive, electronics, and semiconductor industries for quality control, product development, and performance evaluation under varying temperature conditions.
2 Silicon stoppers for entry ports
2 Stainless steel shelves
3 Power outlets for specimens
Left and right entry ports Φ50mm
Fison Temperature Test Chambers provide controlled temperature testing from -40°C to +180°C for product evaluation and quality testing applications. Available in capacities from 80 L to 1000 L, they accommodate specimen loads up to 100 kg and maintain temperature constancy of ±0.1 to ±0.5°C for consistent results. The chambers feature rapid heating and cooling, uniform temperature distribution, a touchscreen controller, Ethernet and USB connectivity, and programmable power outlets for convenient operation and monitoring.
