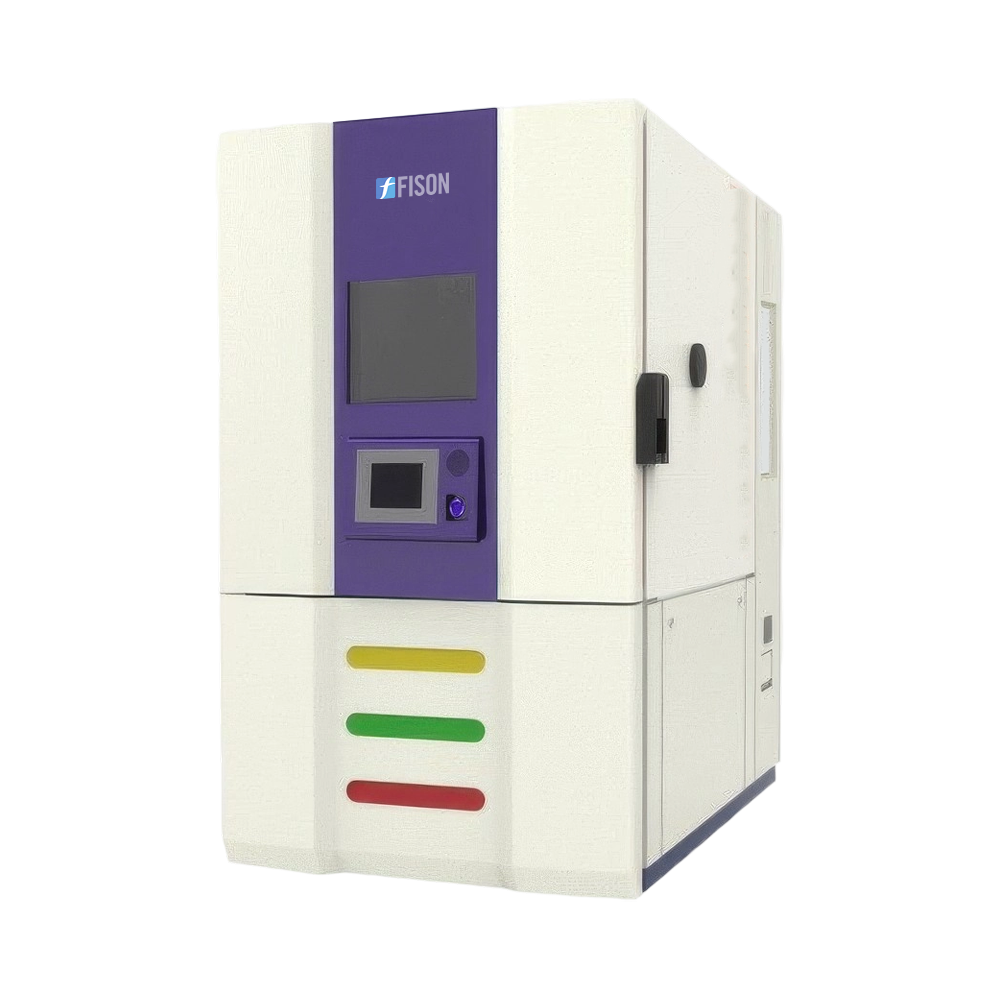

Temperature Test Chamber FM-TTC-A102
Temperature Test Chamber FM-TTC-A102 operates within a wide range of -40 to +180 °C, ensuring versatility for various testing conditions. It supports specimens up to 50 kg, making it ideal for both lightweight and heavy-duty applications. Its sensor system protects specimens from dew, overheating, and poor airflow. Our chamber has a 7-inch touchscreen and a 32-bit control system for easy, real-time operation.
Specifications
| Capacity | 335L |
| Temperature Range | -40 to +180 °C |
| Max. Specimen Weight | 50 kg |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Heating Rate | 3.5 °C/min |
| Cooling Rate | 3.0 °C/min |
| Cooling Methods | Air-cooled/Water-cooled |
| Test Space Dimension (W × D × H) | 580 × 765 × 750 mm |
| External Dimension (W × D × H) | 870 × 1860 × 1800 mm |
Features
- Patented internal air circulation system
- Optional mobile app control
- Intelligent temperature reset mode
- Frost-free operation
- Automatic maintenance alerts
Applications
- Temperature Test Chamber FM-TTC-A102 simulates extreme environmental conditions and is widely used in pharmaceuticals and biotechnology, materials science, aerospace industry, automotive industry, electronics, and semiconductor industry.
Accessories
2 Silicon stoppers for entry ports
2 Stainless steel shelves
3 Power outlets for specimens
Left and right entry ports Φ50mm
