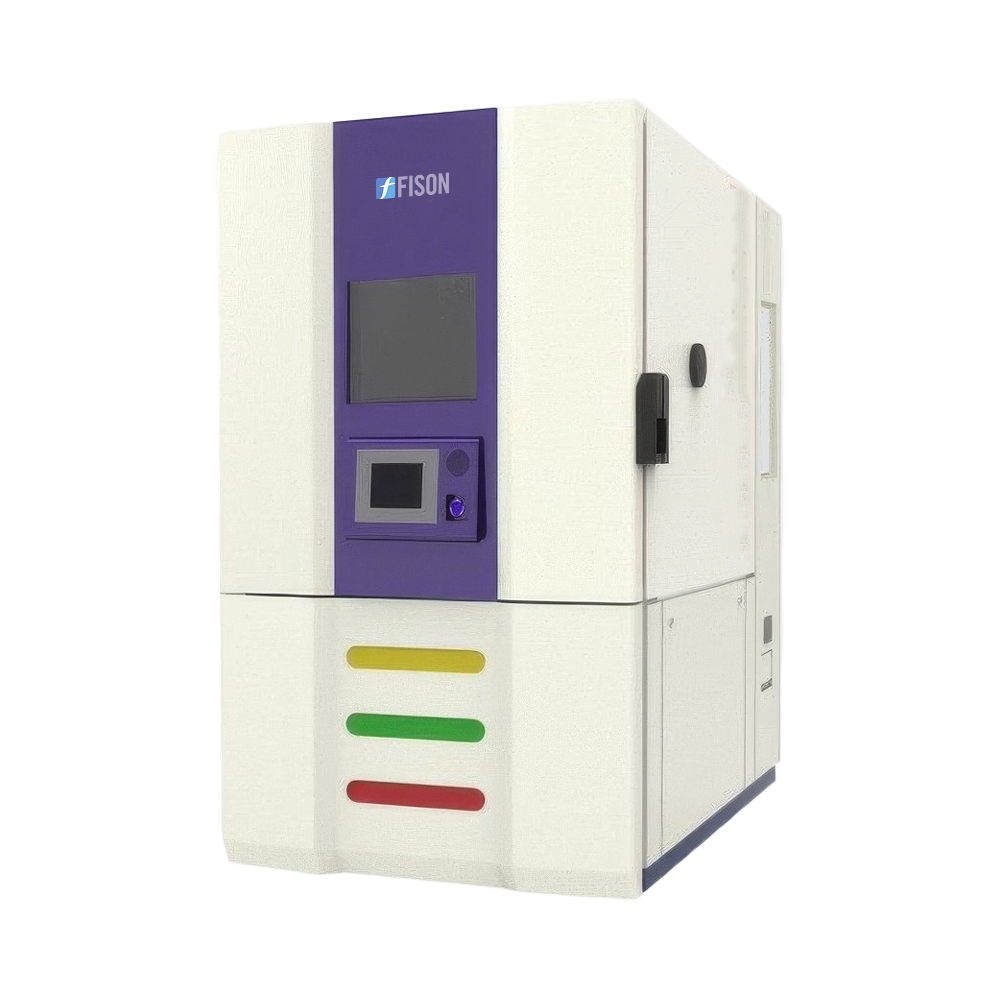

Temperature Test Chamber FM-TTC-A103
Temperature Test Chamber FM-TTC-A103 offers a spacious 600L capacity, ideal for accommodating large or multiple test samples. It operates within a wide temperature range of -40 to +180 °C, making it suitable for rigorous thermal testing. It features eco-friendly refrigeration technology for energy-efficient performance and reduced environmental impact. Our chamber also includes a 7-inch full-color touchscreen display for intuitive control and real-time monitoring.
Specifications
| Capacity | 600L |
| Temperature Range | -40 to +180 °C |
| Max. Specimen Weight | 70 kg |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Heating Rate | 4.0 °C/min |
| Cooling Rate | 2.5 °C/min |
| Cooling Methods | Air-cooled/Water-cooled |
| Test Space Dimension (W × D × H) | 800 × 800 × 950 mm |
| External Dimension (W × D × H) | 1090 × 1960 × 1995 mm |
Features
- Stylish Modular Design
- Dedicated Sensor System
- Rapid heating/cooling rates
- Ethernet/USB Interface
- 4 Programmable Load Power Outlets
Applications
- Temperature Test Chamber FM-TTC-A103 simulates extreme environmental conditions and is widely used in pharmaceuticals and biotechnology, materials science, aerospace industry, automotive industry, electronics, and semiconductor industry.
Accessories
2 Silicon stoppers for entry ports
2 Stainless steel shelves
3 Power outlets for specimens
Left and right entry ports Φ50mm
