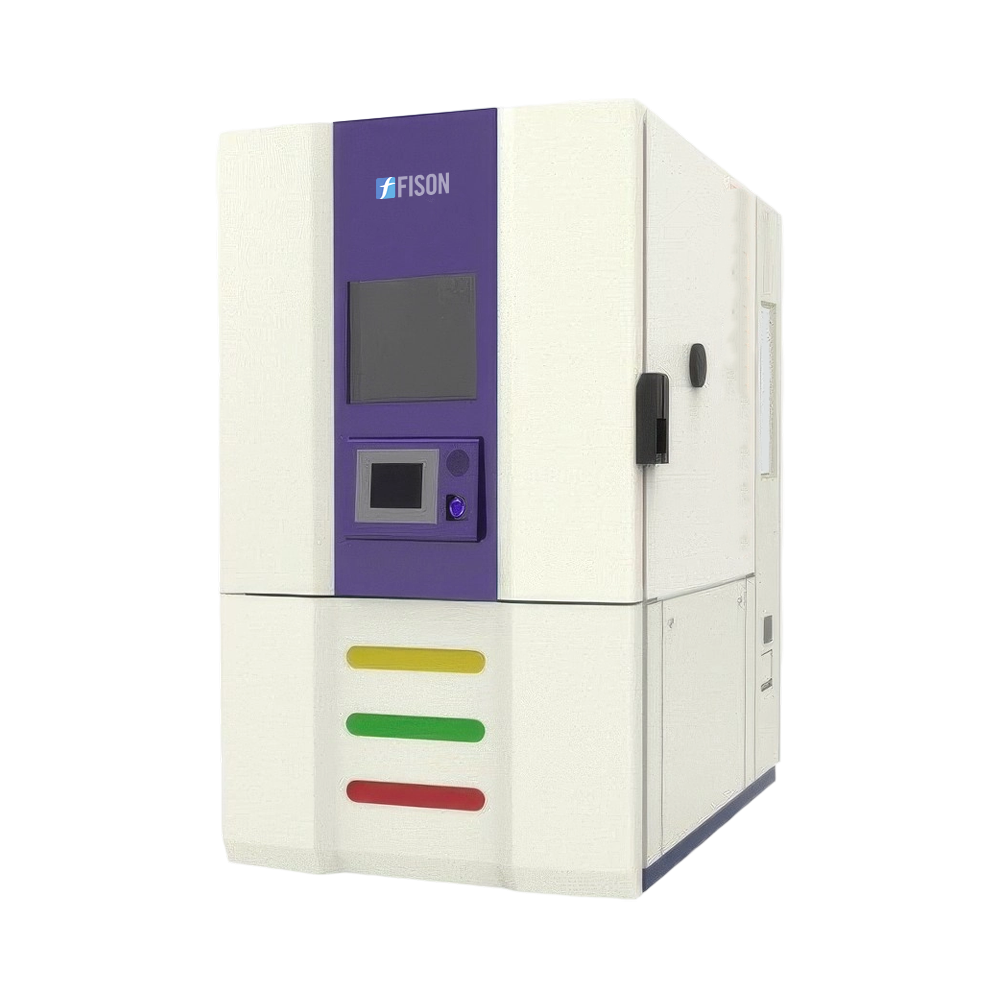

Fison Temperature Test Chamber FM-TTC-A104 offers a 1000L capacity for specimens up to 100 kg, operating across a -40 to 180°C range. Heating and cooling rates reach 3.2°C/min and 2.5°C/min, with no-defrost operation and auto return to room temperature. Temperature constancy of 0.1 to 0.5°C and homogeneity of 0.5 to 2.0°C are maintained via a patented air circulation system. Maintenance reminders and malfunction logging support reliable, low-downtime performance. A 32-bit control system with a 7-inch touchscreen manages control and monitoring, with Ethernet and USB interfaces for connecting external devices.
$30,236.00
| Capacity | 1000L |
| Temperature Range | -40 to +180 °C |
| Max. Specimen Weight | 100 kg |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Heating Rate | 3.2 °C/min |
| Cooling Rate | 2.5 °C/min |
| Cooling Methods | Air-cooled/Water-cooled |
| Test Space Dimension (W × D × H) | 1100 × 950 × 950 mm |
| External Dimension (W × D × H) | 1390 × 2155 × 1995 mm |
Temperature Test Chamber FM-TTC-A104 is used for controlled temperature testing and evaluation of materials, components, and finished products. It is widely used in pharmaceutical and biotechnology laboratories, materials science, aerospace, automotive, electronics, and semiconductor industries.
2 Silicon stoppers for entry ports
2 Stainless steel shelves
3 Power outlets for specimens
Left and right entry ports Φ50mm
Fison Temperature Test Chambers provide controlled temperature testing from -40°C to +180°C for product evaluation and quality testing applications. Available in capacities from 80 L to 1000 L, they accommodate specimen loads up to 100 kg and maintain temperature constancy of ±0.1 to ±0.5°C for consistent results. The chambers feature rapid heating and cooling, uniform temperature distribution, a touchscreen controller, Ethernet and USB connectivity, and programmable power outlets for convenient operation and monitoring.
