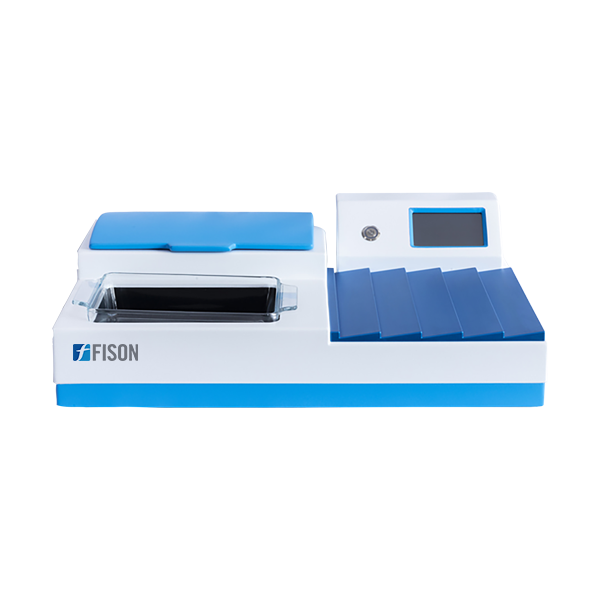

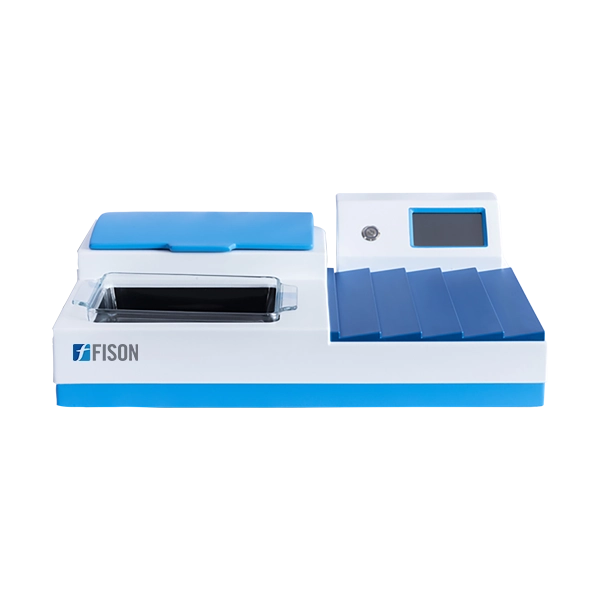

Tissue Floatation Workstation FM-TFW-A100

Name: Tissue Floatation Workstation FM-TFW-A100
Brand: Fison
SKU: FM-TFW-A100
Rating: 4.6 (240 reviews)

Tissue Floatation Workstation FM-TFW-A100 is an integrated unit comprised with floating water bath, slide dryer and oven, comes with 0 to 99°C of temperature range for each part. Features 2 L capacity of floating bath, 64 pcs slide capacity of slide dryer and 3 staining racks for oven. Designed with tempered glass floating water bath with double LED headlight and backlight, curved shaped dryer working area and oven, each part can be operated individually. Equipped with fast and stable heating system, has timing switch on and off function with alarm system and over heat protection function. Incorporated with 4.3 inch touch screen display and dual temperature protection system, prevents tissue damage, over-baking, drying and undermining of tissue slides.

Catalog Buy Now

✔ An integrated unit with floating water bath, slide dryer and oven
✔ 0 to 99°C of temperature range for each part
✔ 2 L capacity of floating bath, high thermal conductivity
✔ 64 pcs slide capacity of slide dryer, large working area
✔ 3 staining racks for oven, hold multiple microscopic slides
✔ Tempered glass floating water bath with double LED headlight and backlight
✔ Curve shaped dryer working area, large drying platform
✔ Fast and stable heating system, efficient and time-saving
✔ Timing switch on and off function with alarm system and over heat protection function
✔ 4.3 inch touch screen display, easy setting and monitoring of parameters
✔ Dual temperature protection system, reliable and consistent results
✔ Prevents tissue damage, over-baking, drying and undermining of tissue slides
✔ High-efficient, stable and reliable unit with convenient operation

Parts	Floatation water bath, Slide dryer and Oven
Floatation water bath capacity	2 L
Slide dryer capacity	64 pcs
Oven capacity	3 staining racks
Temperature range	0 to 99°C
Floating water bath illumination	Double LED headlight and backlight
Display	4.3 inch touch screen display
Temperature protection	Dual temperature protection system
Alarm system	Timing alarm system
Power supply	AC 100 to 240 V ± 10%, 50 ± 1 Hz
Power	600 VA
Floatation water bath dimension ((L×W×H)	212×168×55 mm
Dryer dimension (L×W×H)	206×170×55 mm
Oven dimension (L×W×H)	235×95×92 mm
External dimension (L×W×H)	540×360×180 mm
Packaging dimension (L×W×H)	620×450×270 mm
Net weight	17 kg
Gross weight	20 kg

Tissue Floatation Workstation is used for stretching, drying and baking of tissues for easy preparation across histological, chemical, clinical, bacteriological laboratories etc.
