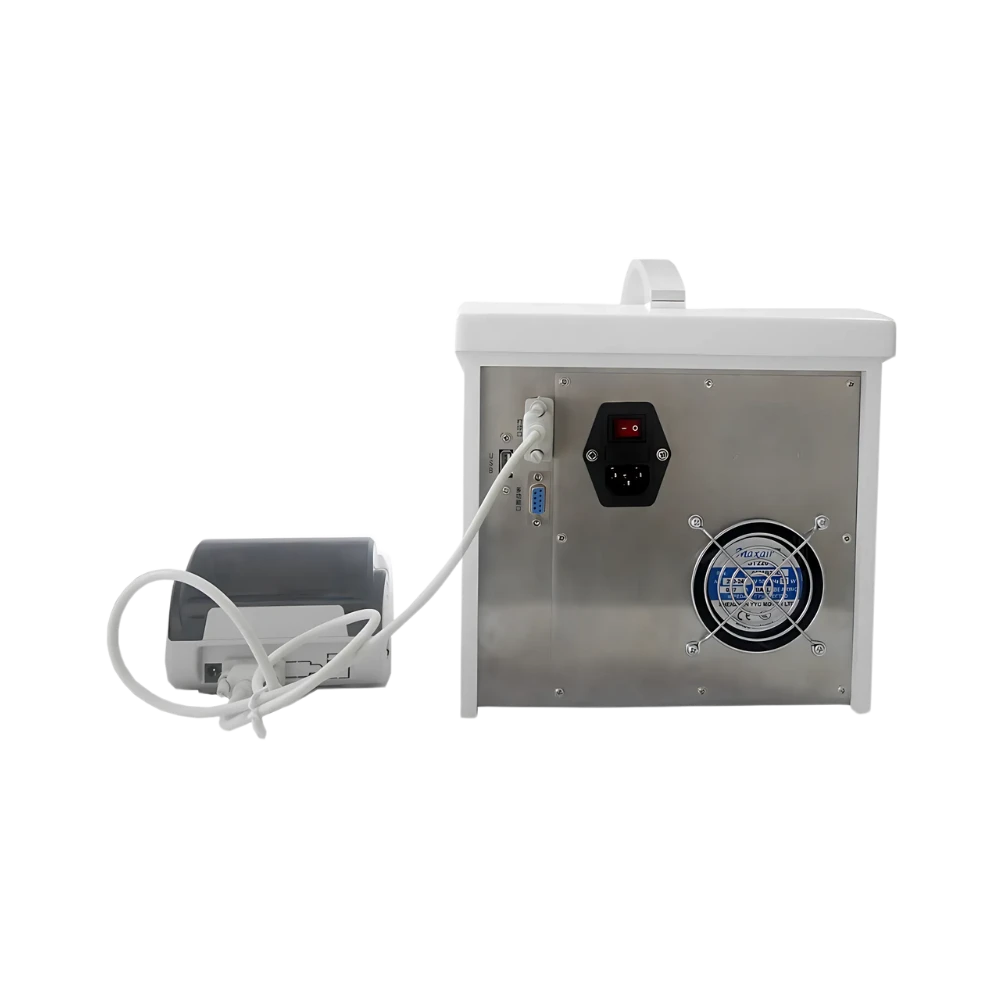

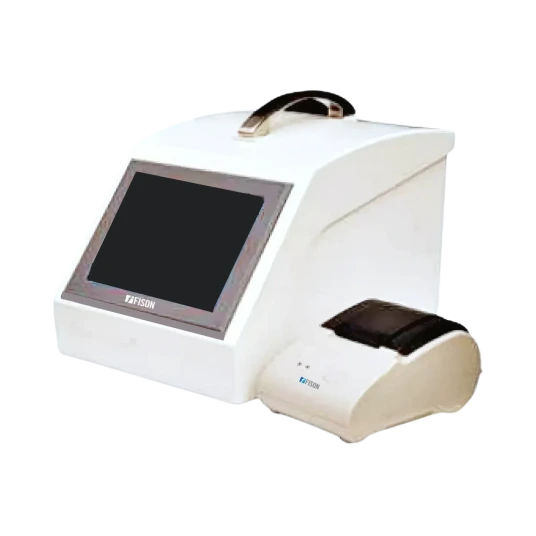

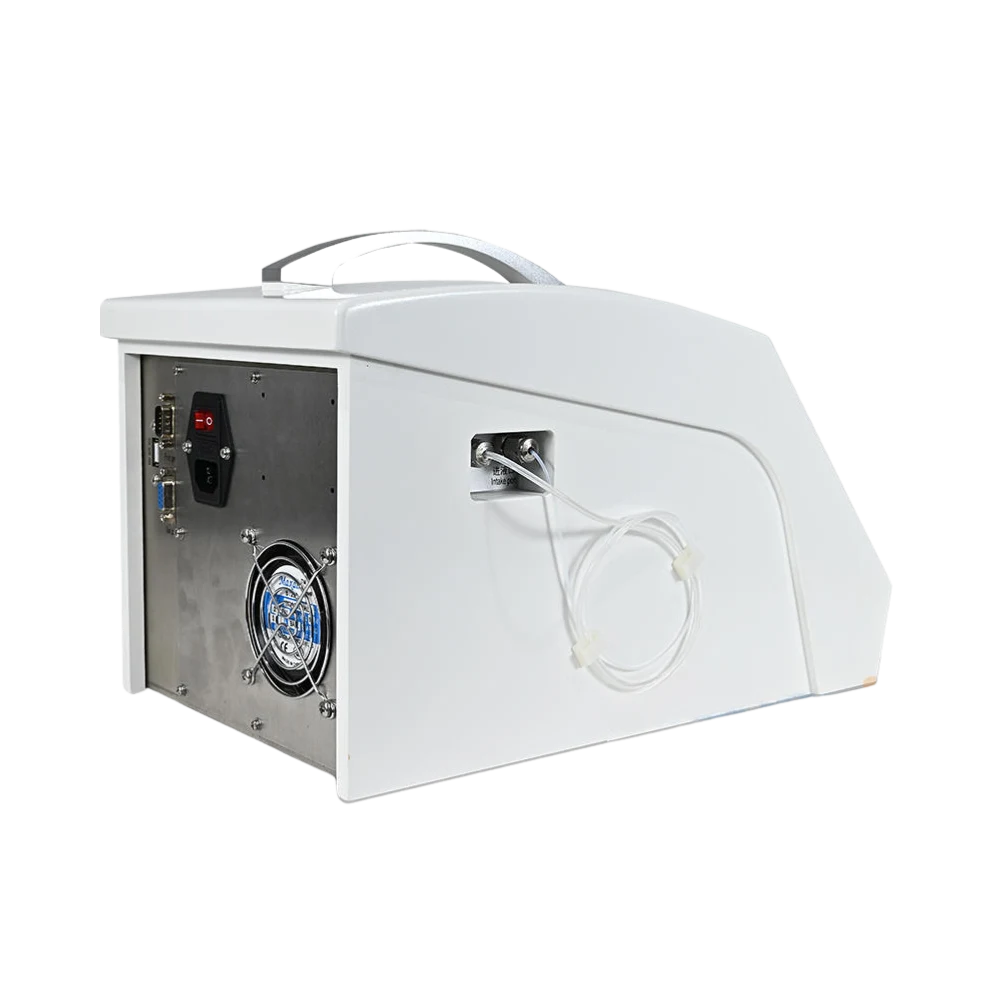

TOC Analyzer FM-TOC-B105
TOC Analyzer FM-TOC-B105 measures total organic carbon from 0.001 mg/L to 1 mg/L. It offers ±3% accuracy and a rapid 5-minute response time. It requires no reagents like nitrogen or oxidants, making it cost-effective and simple to operate. Equipped with an automatic sampler, limit alarm, and FDA 21CFR Part 11 compliance, it ensures reliable and secure data management. Ideal for offline monitoring of pharmaceutical water and cleaning validation in labs and industries.
Specifications
| Type | Offline |
| Measurement Range | 0.001mg/L to 1mg/L (1 to 1000ppb) |
| Conductivity Detection Range | 0.055 µs/cm to 8.000 µs/cm |
| Applied Range | Offline in the Laboratory, Cleaning Validation |
| Response Time | 5 mins |
| Sample Temperature | 1 to 99℃ |
| Accuracy | ±3% |
| Resolution | 0.001mg/L |
| Measuring Limit | 0.001mg/L |
| Interface | USB Disk |
| Storage | ≥3 years storage |
| Audit trail | Customization |
| Authority Management | Username and password login , to meet FDA 21CFR PART11 requirements |
| Print Function | External Printer |
| Display Screen | Color Touch Screen |
| RSD | Repeatability ≤3% |
| Power | 120 W |
| Power Supply | 100 to 260 V AC 50 HZ |
| Dimension | 400 × 240 × 270 mm |
| Weight | 8.5 KG |
Features
- High resolution detection
- Wide conductivity range
- External print function
- Custom audit trail
- Touch screen display
- USB data export
Applications
- TOC Analyzer FM-TOC-B105 is ideal for offline monitoring and validation of pharmaceutical water systems, including purified water and injection water. It is also essential in cleaning validation processes and quality control in industries like electronics, food, and biotechnology
