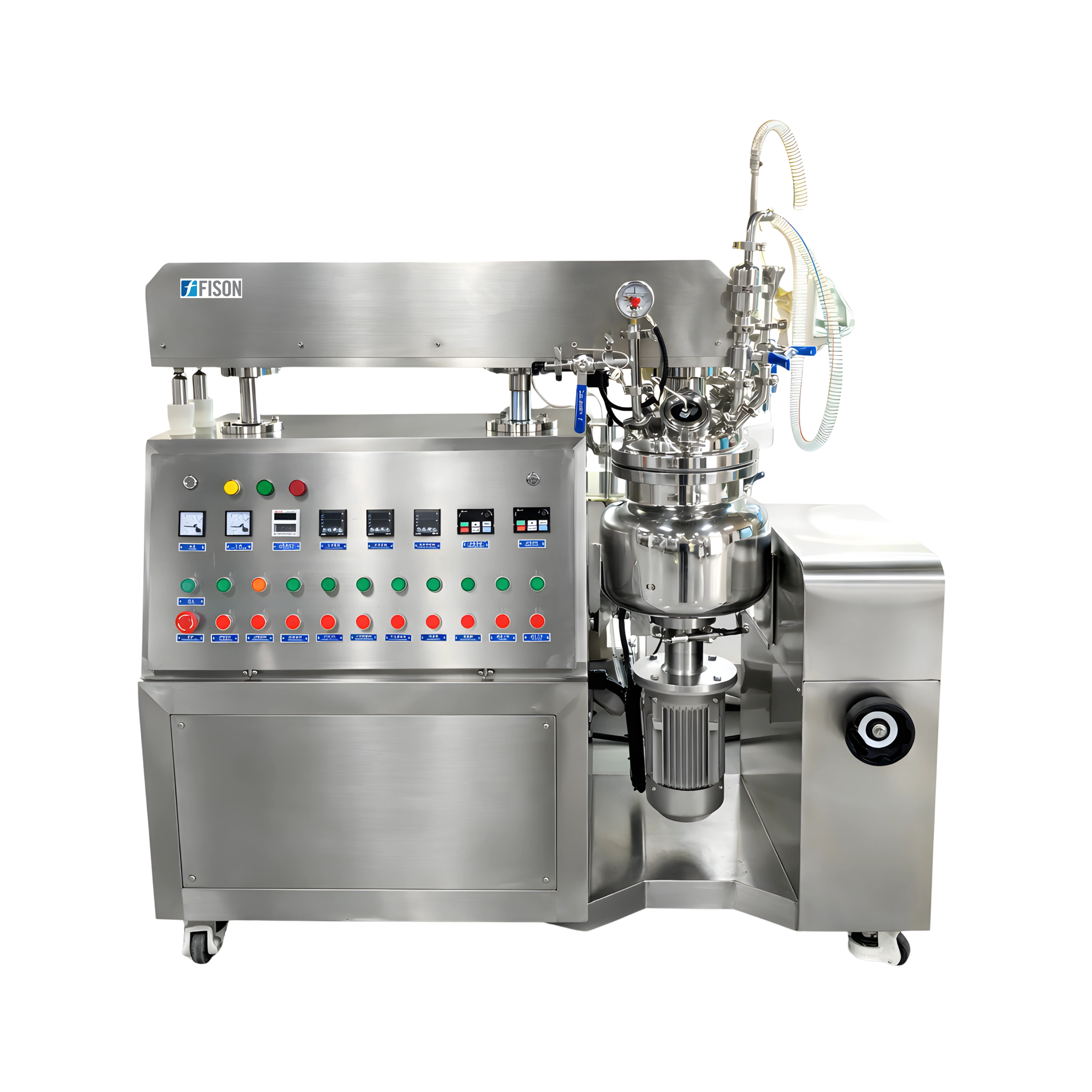

Vacuum Emulsifying Homogenizer FM-VEH-A100 offers a 6L design capacity with 2 to 5L working volume delivers compact, precise processing control. Mirror-finished multi-layer stainless construction ensures durable, hygienic performance. Variable-speed mixers with PTFE scrapers create uniform movement and consistent blending results. High-speed homogenization supported by German rotor-stator engineering achieves ultra-fine dispersion. Integrated structural stability guarantees dependable operation for demanding production needs.
$14,375.00
| Design volume | 6L |
| working volume | 2 to 5L |
| Mixing and Homogenizing | 0.35Kw Upper mixing, 0 to 63 RPM with food grade Teflon wall scrapper 0.55KW bottom homogenizer, 0 to 3000 RPM |
| Thickness | Tank body made by 3layers: 3mm SS316L inner layer; 3mm SS304 middle layer; 2mm SS304 outer layer |
| Heating/cooling | electric heating 90-95 °C tap water cooling cooling/heating water inlet from tank bottom |
| Vacuum | Water cycle type vacuum pump, max pressure ≤-0.095mpa jacket pressure: ≤0.6MPa |
| Discharge | Handle tilt the tank or bottom |
| Product inlet/outlet | vacuum suck material from inlet valve of top lid, Ф38 product outlet from bottom or tilt the tank outlet |
| Stirrer type | PTFE scraper mixer |
| Power supply | 380 V, 50Hz, 3 phase 220V/50Hz 1 phase |
| Dimension (L×B×H) | 1450×660×1360 mm |
| Weight | 200 kg |
Accessory name | Quantity |
Solenoid valve | 1 pc |
Heating rod | 1 pc |
Mechanical seal | 1 pc |
Temperature sensor/probe | 1 pc |
Clamp | 10 sets |
Sealing rings, O-rings | 10 sets |
Our Vacuum Emulsifying Homogenizer integrate controlled mixing with advanced homogenizing efficiency. Multi-layer stainless frameworks enhance durability and sanitary performance. Adjustable speed systems promote optimized shearing and uniform texture formation. Intelligent temperature and pressure regulation supports consistent operational stability. Seamless structural engineering ensures high reliability across diverse formulation needs.
