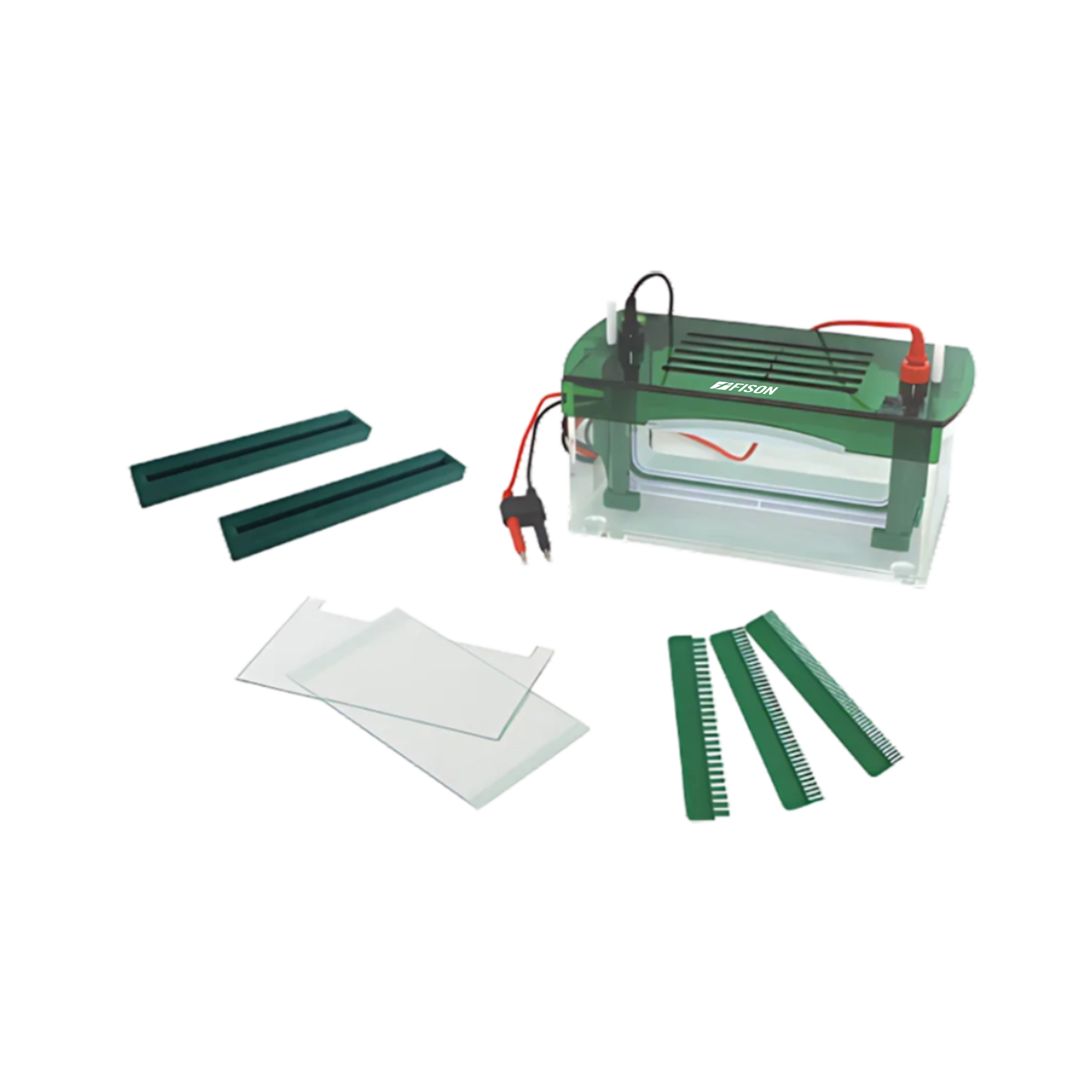

Vertical Electrophoresis System FM-VES-A103
Vertical Electrophoresis System FM-VES-A103 Offers glass plates installation under 15 seconds, ensuring quick setup. It supports casting and running of multiple gels simultaneously, making it ideal for high-throughput labs. Dual viewing sides with a coloured background allow easy monitoring of gel loading and separation. It includes features like buffer stability, protective electrodes, and auto shut off for safety. Ideal for protein and nucleic acid separation in research and diagnostics.
Specifications
| Glass plate size (W×L) | 216×110 mm |
| Gel size (W×L) | 101 × 73 mm |
| Gel thickness | 1.0 mm |
| Number of gels | 1 to 4 pcs |
| Number of samples | 11 to 60 |
| Total buffer volume | 1200 ml |
| Dimension (L×B×H) | 175 × 175 × 100 mm |
| Net weight | 2.5 kg |
Features
- Stable buffer system
- Integrated safety mechanism
- Quick gel casting
- Compact Footprint
- Multi-comb Compatibility
Accessories
Accessories Quantity Lid with cables 1 Body tank 1 Gel casting core with electrodes 1 Gel casting modular 2 Notched glass plates 4 Spacer plate with 1.00 mm glass spacer 4 1.0 mm thickness 40-well comb 2 1.0 mm thickness 25-well comb 2 1.0 mm thickness 52-well comb 2 Dropper 1
