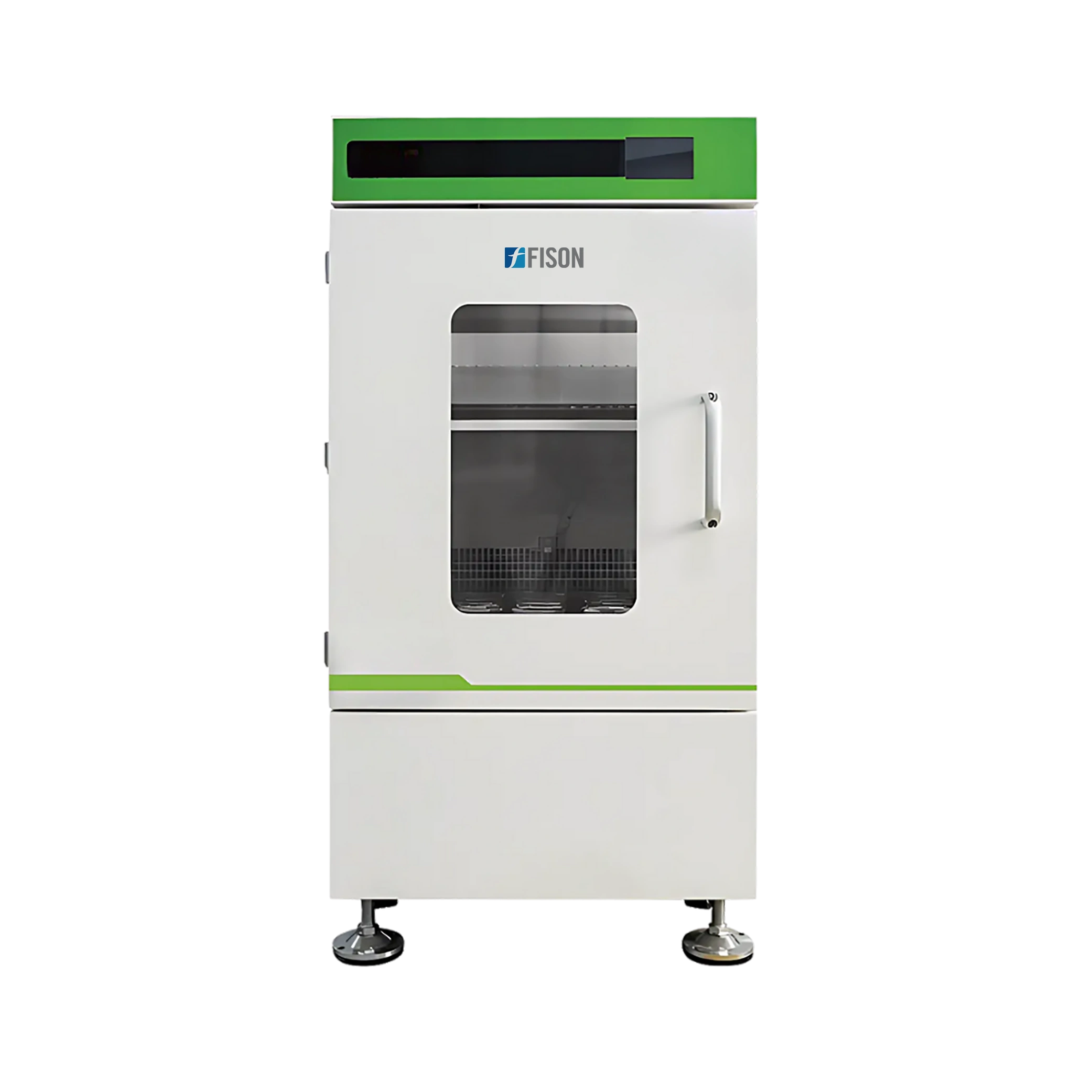

Vertical Shaking Incubator FM-SI-C200
Vertical Shaking Incubator FM-SI-C200 offers a wide speed range of 0 or 5 rpm to 320 rpm (no load), ensuring flexible results. It operates at a temperature range of 4℃ to 60℃, providing reliable incubation performance. It provides a CO₂ control range of 0 to 20%, ensuring precise environmental conditions for sensitive cell culture and incubation processes. It features an LCD for precise monitoring and functions.
$10,920.00
Specifications
| Speed (No Load) | 0 or 5 rpm to 320 rpm |
| Speed Accuracy | ±1 rpm |
| Shaking Amplitude | Φ26 mm |
| Temperature Range | 4℃ to 60℃ (under room temperature of 23℃ to 25℃) |
| Temperature Adjustment Accuracy | ±0.1℃ |
| Max Capacity (Spring Clamps) | 250 ml × 25, 500 ml × 16, 1000 ml × 9 (One Plate) |
| Temperature Uniformity | ±0.6℃ (@ 37℃) |
| CO₂ Control Range | 0 to 20% |
| CO₂ Control Accuracy | 0.1% |
| Display | LCD Touch Screen |
| Convection Type | Forced-convection heat transfer |
| Temperature Control Method | PID |
| Timer | 1 min to 999 h |
| Interchangeable Platform Size | 480 mm × 480 mm |
| Noise Level | ≤55 dB |
| Loading Height | 667 mm |
| Fuse | 10A and 15A |
| Power Supply | AC 220 V ±10%, 50 Hz / 60 Hz |
| Power Consumption | 800 W |
| Dimensions (L × W × H) | 688 × 688 × 1280 mm |
| Weight | 190 kg |
Features
- Over-temperature protection
- Double-glazed security door
- Dual USB ports
- Data storage interface
- High-density polyurethane insulation
- Anti-fog heating film
Applications
- Vertical Shaking Incubator FM-SI-C200 is used for cultivating cells, particularly in cell culture, fermentation, and various research applications. It is widely used in microbiology, biochemistry, drug discovery, and development.
