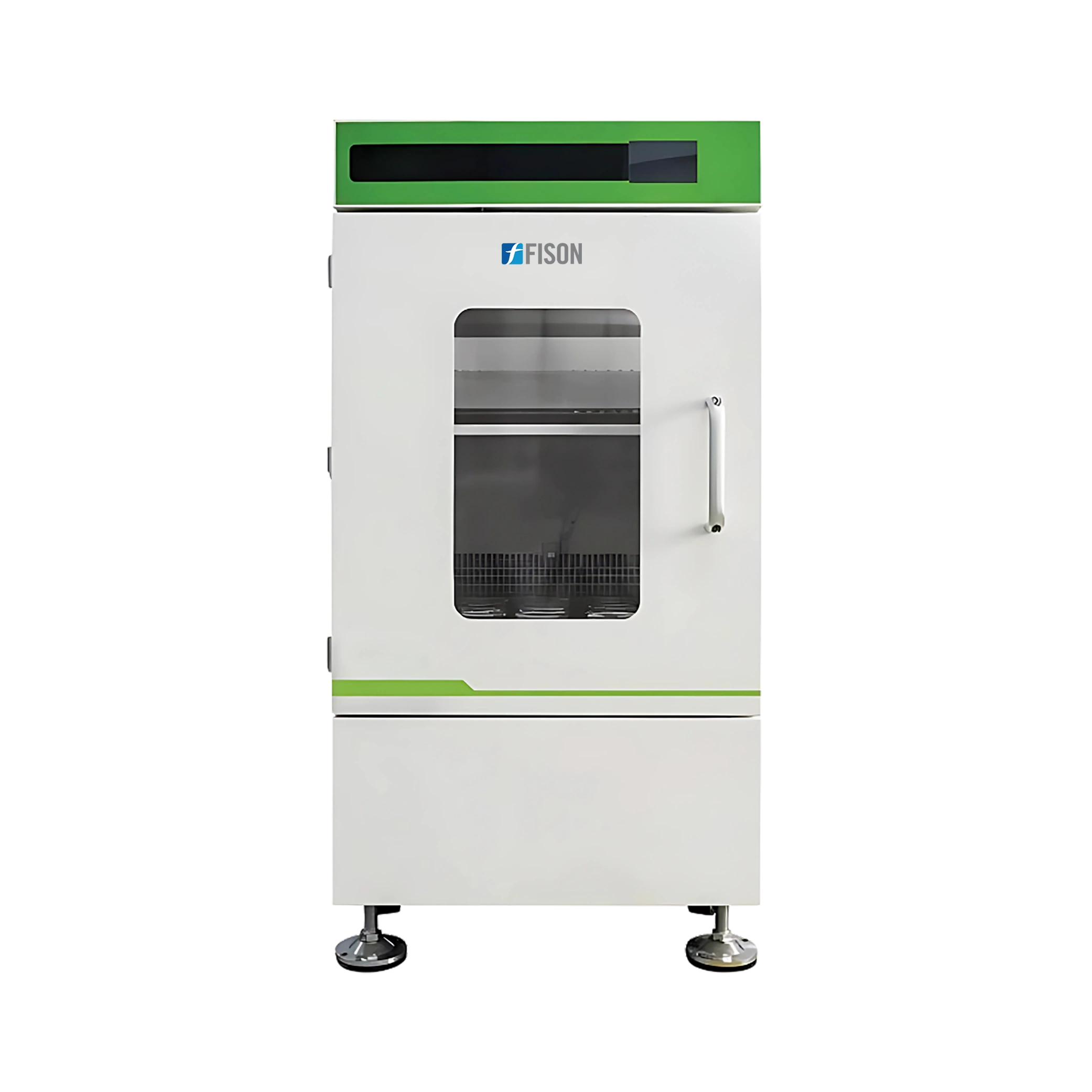

Vertical Shaking Incubator FM-SI-C201
Vertical Shaking Incubator FM-SI-C201 features a variable speed range of 0 or 5 rpm to 320 rpm, enabling precise and consistent shaking performance. It offers a temperature range of 4°C to 60°C, maintained accurately under ambient conditions of 23°C to 25°C, ensuring optimal thermal control. It utilizes forced-convection heat transfer to ensure rapid and uniform temperature distribution, providing consistent results. Our shaking incubator features an LCD for real-time monitoring and operation.
$5,040.00
Specifications
| Speed (No Load) | 0 or 5 rpm to 320 rpm |
| Speed Accuracy | ±1 rpm |
| Shaking Amplitude | Ø26 mm (orbital motion) |
| Temperature Range | 4°C to 60°C (under room temperature of 23°C to 25°C) |
| Temperature Adjustment Accuracy | ±0.1°C |
| Temperature Uniformity | ±0.8°C (at 37°C) |
| Temperature Control | PID (Proportional-Integral-Derivative) |
| Convection Type | Forced-convection heat transfer |
| Timer Range | 1 minute to 999 hours |
| Display | LCD Touchscreen |
| Interchangeable Platform Size | 480 mm × 480 mm |
| Loading Height | 667 mm |
| Max Capacity (Spring Clamp Plate) | 250 mL × 25, 500 mL × 16, 1000 mL × 9 |
| Power Supply | AC 220 V ±10%, 50/60 Hz |
| Power Consumption | 800 W |
| Fuse | 10 A and 15 A |
| Noise Level | ≤ 55 dB |
| Dimensions (L × W × H) | 688 mm × 688 mm × 1280 mm |
| Weight | 190 kg |
Features
- Over-temperature alarm
- High-density polyurethane insulation
- Dual USB data logging
- 5-eccentric shaft linkage design
- Durable framework structure
Applications
- Vertical Shaking Incubator FM-SI-C201 is used in several applications for various medical and pharmaceutical industries. It is used in tissue engineering, in vitro fertilization, medical research, diagnostics, and developing biosensors.
