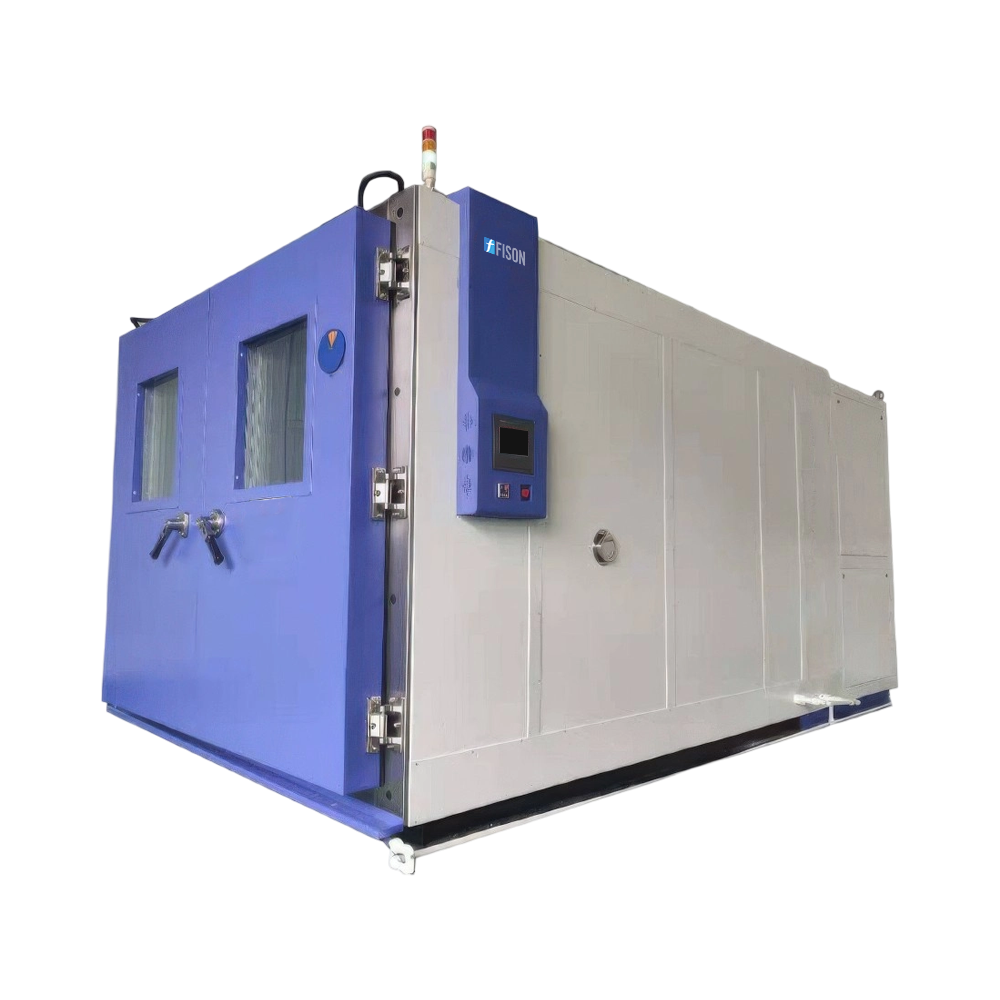

Walk-in Climatic Chamber FM-WIC-A104 offers a spacious 28 m³ test volume, ideal for large-scale environmental simulations. It operates from -40°C to +100°C with 15–95% RH for versatile testing in extreme conditions. Its integrated anti-condensation shield and intuitive touchscreen interface ensure precise control and optimal specimen safety. Our chamber features a modular design with scalable, future-ready architecture for diverse testing needs.
$134,900.00
| Test Space Volume | 28 m³ |
| Temperature Range | -40 to +100 °C |
| Floor Load | 30,000 N/m³ |
| Humidity Range | 15 to 95 %RH |
| Humidity Fluctuation | ±1.0 to ±5.0%RH |
| Dew Point Temp. Range | +4 to +59 / +4 to +95 °C |
| Heating/Cooling Rate | 1 to 5℃/min |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Temperature Homogeneity | ±0.5 to ±3.0 °C |
| Cooling Method | Air-cooled/Water-cooled |
| Power Supply | AC380V ±10%, 50Hz, 3/N/PE |
| Door Dimensions W × H | 900 × 1900 mm (Single door) |
| Test Space Dimension (W × D × H) | 2250 × 2500 × 5000 mm |
| External Dimension (W × D × H) | 2490 × 2740 × 6860 mm |
1 Entry port Φ 100mm
1 Silicon stopper for entry port
Automatic water supply
1 Water tank with 20L
1 Water filter
Fison Walk-in Climatic Chambers are designed for testing large or multiple specimens under various environmental conditions. They feature a modular design, durable seamless construction, and an innovative anti-condensation system to protect test samples. Our chamber supports defrost-free low-temperature operation and includes an automatic water supply system for ease of use. Their user-friendly touch screen with a high-performance controller ensures precise and intuitive control of all testing parameters.
