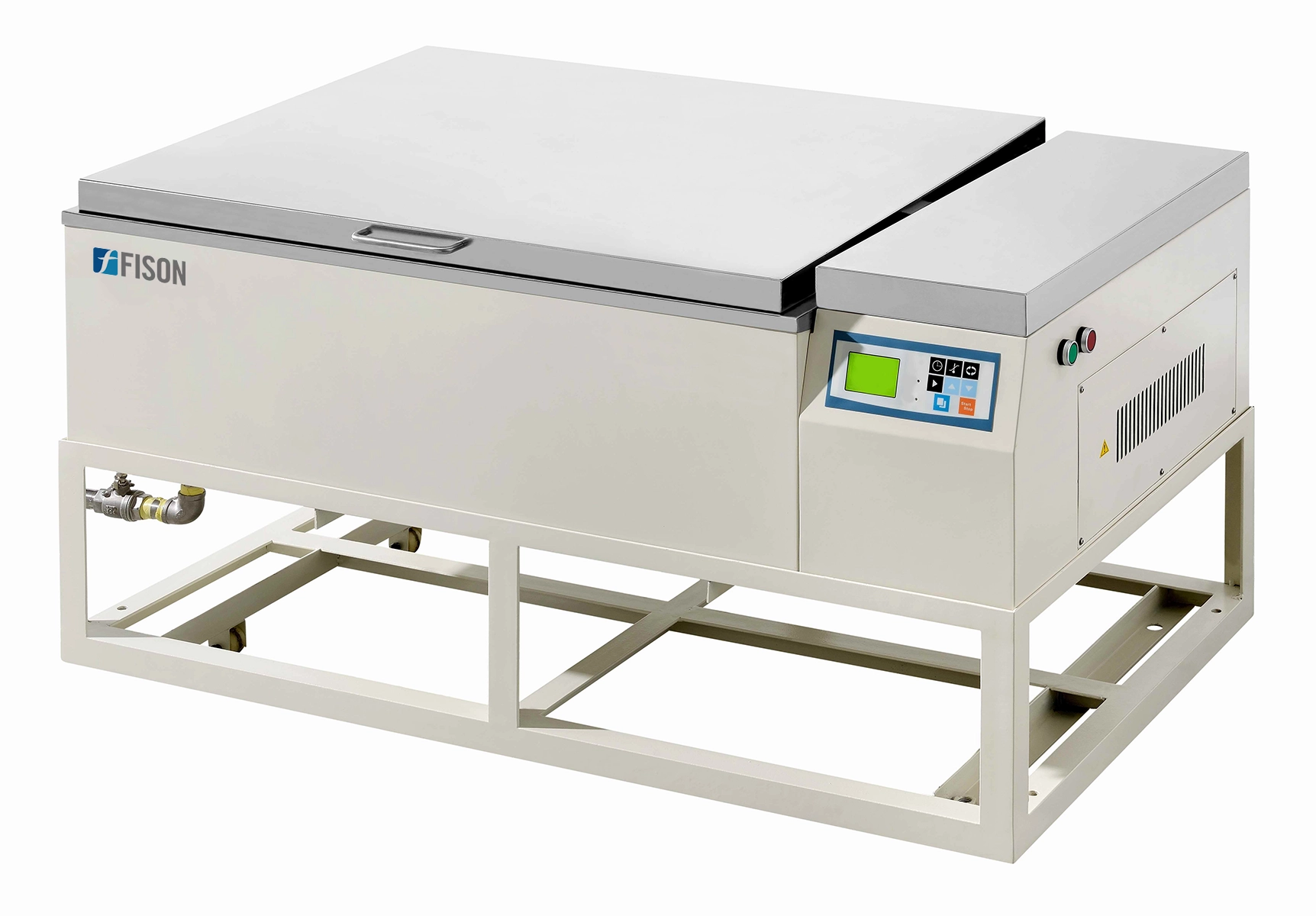

Water Bath Shaker FM-WBS-A102 is a floor standing type reciprocating water bath shaker with microprocessor PID controlled system and 175 L capacity. It has 20 to 200 rpm speed range, RT to 100 °C temperature control range, and 48 × 250 ml standard flask configuration. Designed with LCD display, drainage vale, electro-polished stainless steel lid cover and stainless steel chamber, tray, spring, flask holder. Dual over temperature functions with automatic cut-off in case of low water level or over temperature for heating parts. Used in germ culture, fermentation, hybridization, and research of biochemical reaction, enzyme, cellular tissue and all that require high temperature and oscillation frequency.
$8,762.00
| Capacity | 175 L |
| Control | Microprocessor PID controlled system |
| Speed range | 20 to 200 rpm |
| Speed accuracy | ±1 rpm |
| Oscillation amplitude | Φ25 mm |
| Convection mode | Forced convection |
| Oscillation mode | Linear reciprocating |
| Drive | Suspension orbit drive |
| Temperature control range | RT to 100℃ |
| Temperature control accuracy | ± 0.1℃ (constant temperature status) |
| Temperature uniformity | ± 0.2℃ |
| Timing range | 0 to 999.59 h |
| Display | LCD (Simultaneous display of set and working parameters) |
| Flask tray size | 780 × 586 mm |
| Tray number | 1 pc |
| Chamber dimension (D × W × H) | 940 × 660 × 275 mm |
| Overall dimension (D × W × H) | 1240 × 700 × 760 mm |
| Power supply | AC 200 to 240V, 50 to 60 Hz |
| Power | 4000 W |
| Net weight | 80 kg |
| Accessories no. | Accessories name | Dimension | Unit |
| 1 | Stainless steel universal spring tray | 780 × 586 × 80 mm | 1 |
| 2 | Stainless steel flask tray | 780 × 586 × 15 mm | 1 |
| Specification | Capacity | |
| Standard | Flask tray | 48 × 250 ml |
| Optional | Flask | 30 × 500 ml |
| 20 × 1000 ml | ||
| Universal spring tray | 780 × 586 × 80 mm | |
| Note: Can choose either standard or optional as an option | ||
Water Bath Shaker combines precise temperature control and gentle agitation with a measurement range of ambient +5°C to 100°C, ideal for uniform incubation and sample mixing. They features digital temperature and speed control, stainless steel tank, and adjustable shaking platform for reliability and versatility. They include a shaking speed range of 20–200 rpm and temperature accuracy of ±0.5°C. Commonly used in molecular biology, microbiology, biochemistry, and pharmaceutical labs which ensures reproducible results in sensitive procedures. Our shaker enhances experimental precision and consistency in temperature dependent applications.
