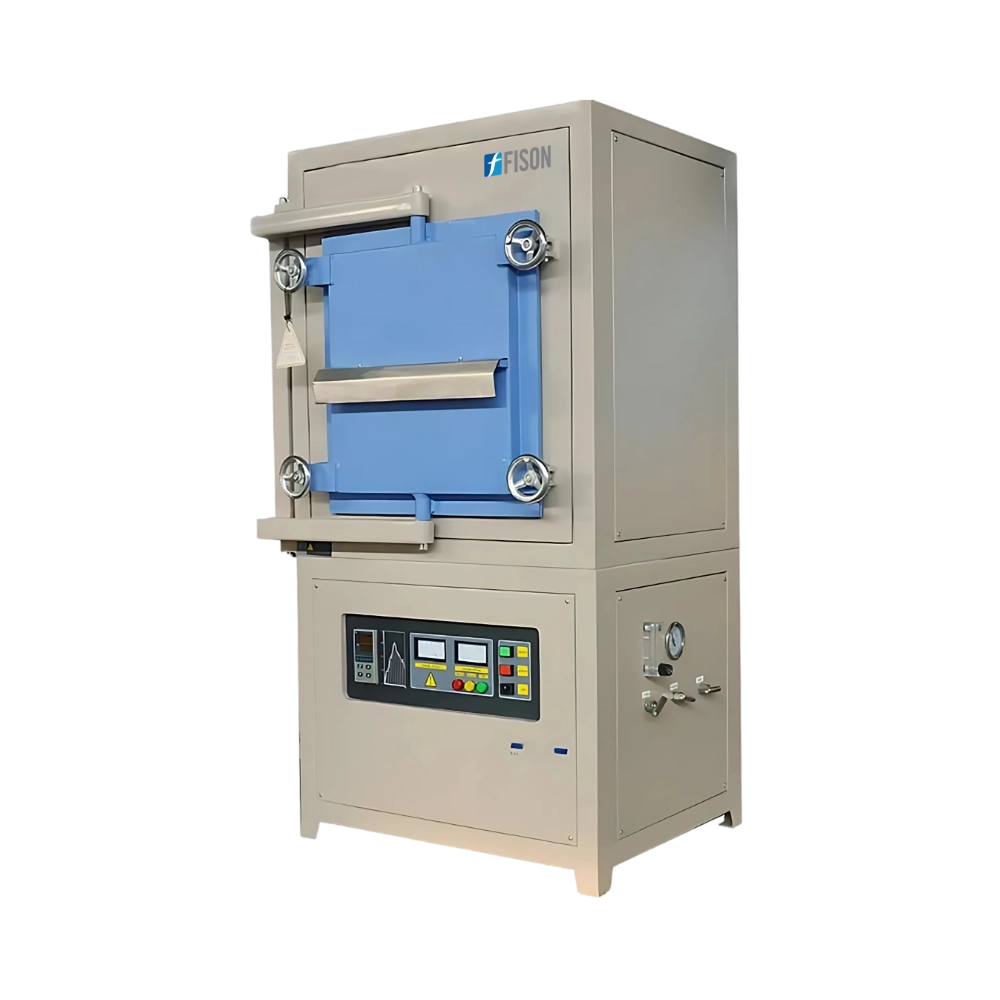

1400℃ Muffle Furnace FM-MF-D100
1400℃ Muffle Furnace FM-MF-D100 offers a maximum temperature of 1400 ℃, ideal for demanding thermal processes. It supports a vacuum level up to -0.1 Mpa, ensuring controlled atmospheres for advanced material treatments. Its robust noise immunity, with digital filtering and a watchdog circuit, ensures stable performance in high-interference environments. Our furnace uses high-precision digital calibration for accurate, stable measurements and supports nonlinear sensor scaling.
Specifications
| Maximum Temperature | 1400 ℃ |
| Rate Temperature | 1400 ℃ |
| Vacuum | -0.1 Mpa |
| Atmosphere | All inert gases, nitrogen, argon, carbon dioxide, and water vapor |
| Chamber Size | 300 × 300 × 400 mm |
| Heating Rate | ≤10 ℃/min |
| Temperature Accuracy | ±1 ℃ |
| Heating Element | Silicon carbon rod (SiC) / Silicon molybdenum rod |
| Thermocouple | B type |
| Vacuum Pump | VP125 |
| Delivery Time | 10 to 15 days |
| Power Supply | 380 V / 50 Hz |
| Power Consumption | 11 KW |
| Dimension | 920 × 1910 × 1200 mm |
| Net Weight | 310 kg |
| Gross weight | 350 kg |
Features
- High-purity insulation material
- Secure, airtight door design
- Self-tuning and programmable control
- Comprehensive alarm system
- Intelligent program control
- Power failure protection
Applications
- 1400℃ Muffle Furnace FM-MF-D100 is widely used in materials science laboratories, universities, and research institutions, metallurgy and foundries, pharmaceutical and chemical industries, and electronics manufacturing.
Accessories
Accessory
Quantity
Fireproof brick for furnace door
1 pc
High-temperature gloves
1 pair
Crucible clip
1 pc
Thermal elements
2 pcs
Vacuum pump
1 pc
Accessories Optional
Touch screen×1 Pc
Silicon carbide rod×1 Pc
Crucible (multi-layer kiln furniture)×1 Pc
