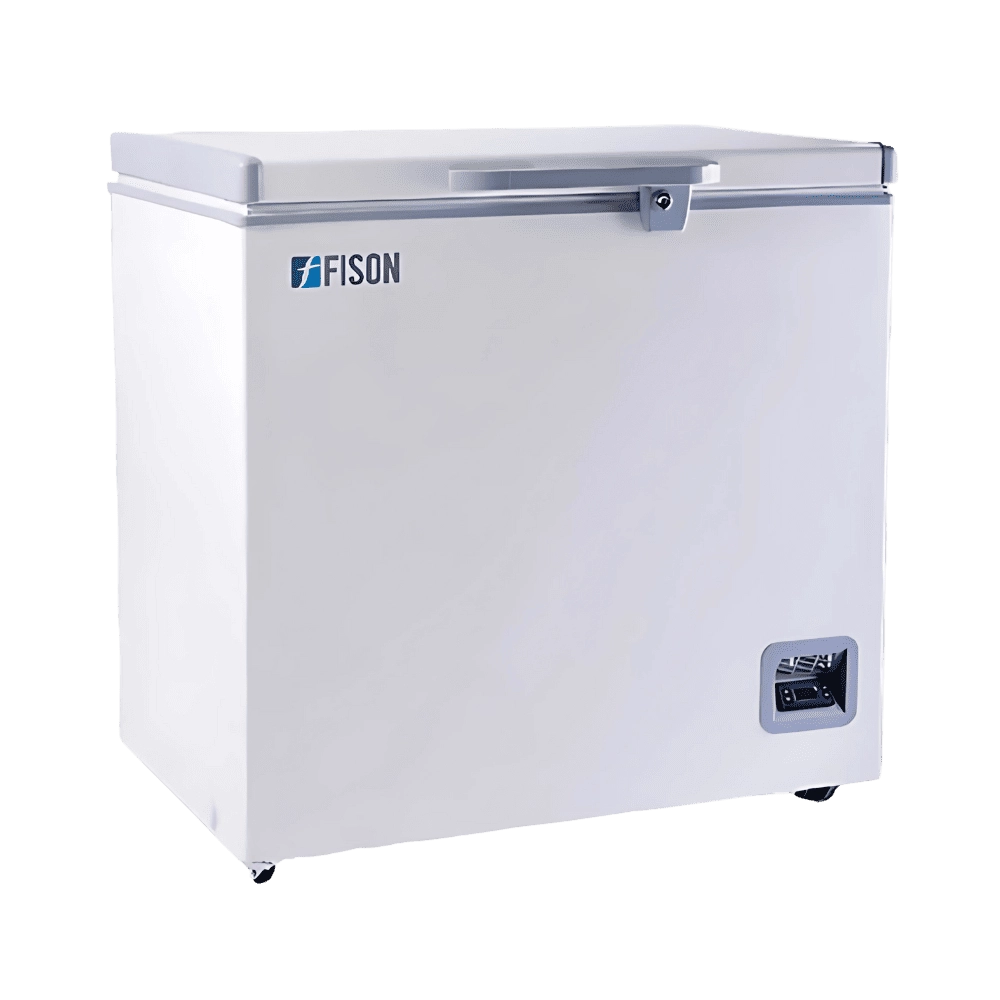

-25°C Chest Freezer FM-CF-A102
-25°C Chest Freezer FM-CF-A102 is a direct refrigeration comprised electronic temperature-controlled unit, offers 358 L of capacity with -10 to -25°C of temperature range. Features wire tube condenser and coil-type evaporator with R600a refrigerant. Compact design with polyurethane foam insulation having color coated steel plate housing and embossed aluminum plated interiors. Equipped with LED digital display and alarm system, it also supports delayed start and safe stop interval function.
Specifications
| Type | Chest |
| Capacity | 358 L |
| Temperature range | -10 to -25°C |
| Ambient temperature | 10 to 32˚C |
| Compressor | 1 pc |
| Cooling method | Direct cooling |
| Refrigerant | R600a |
| Display | LED Digital display |
| Alarm system | High and low temperature, controller failure and power failure |
| Access port | 1 pc Φ 23 mm |
| External material | Color coated steel plate |
| Internal material | Embossed aluminum plate |
| Power supply | 220 V 50 Hz |
| Rated current | 0.6 A |
| Power | 110 W |
| Internal dimension (W×D×H) | 975×530×643 mm |
| External dimension (W×D×H) | 1130×767×852 mm |
| Package size (W×D×H) | 1155×780×895 mm |
| Net weight | 46 kg |
| Gross weight | 51 kg |
Features
- A direct refrigeration comprised electronic temperature-controlled unit
- 358 L of capacity with -10 to -25°C of temperature range
- Wire tube condenser and coil-type evaporator with R600a refrigerant
- Compact design with polyurethane foam insulation, effective insulation layer
- Color coated steel plate housing and embossed aluminum plated interiors
- LED digital display, convenient setting and monitoring of different parameters
- Alarm system for high and low temperature, controller failure and power failure
- Delayed start and safe stop interval function, ensures stable and reliable operation
Applications
- -25°C Chest Freezer is used to store biological materials, vaccine, blood plasma, electronic devices etc. across blood bank, hospitals, electronic, chemicals, scientific research institutes etc.
Accessories Optional
- Remote alarm
Temperature recorder
