$8,437.00

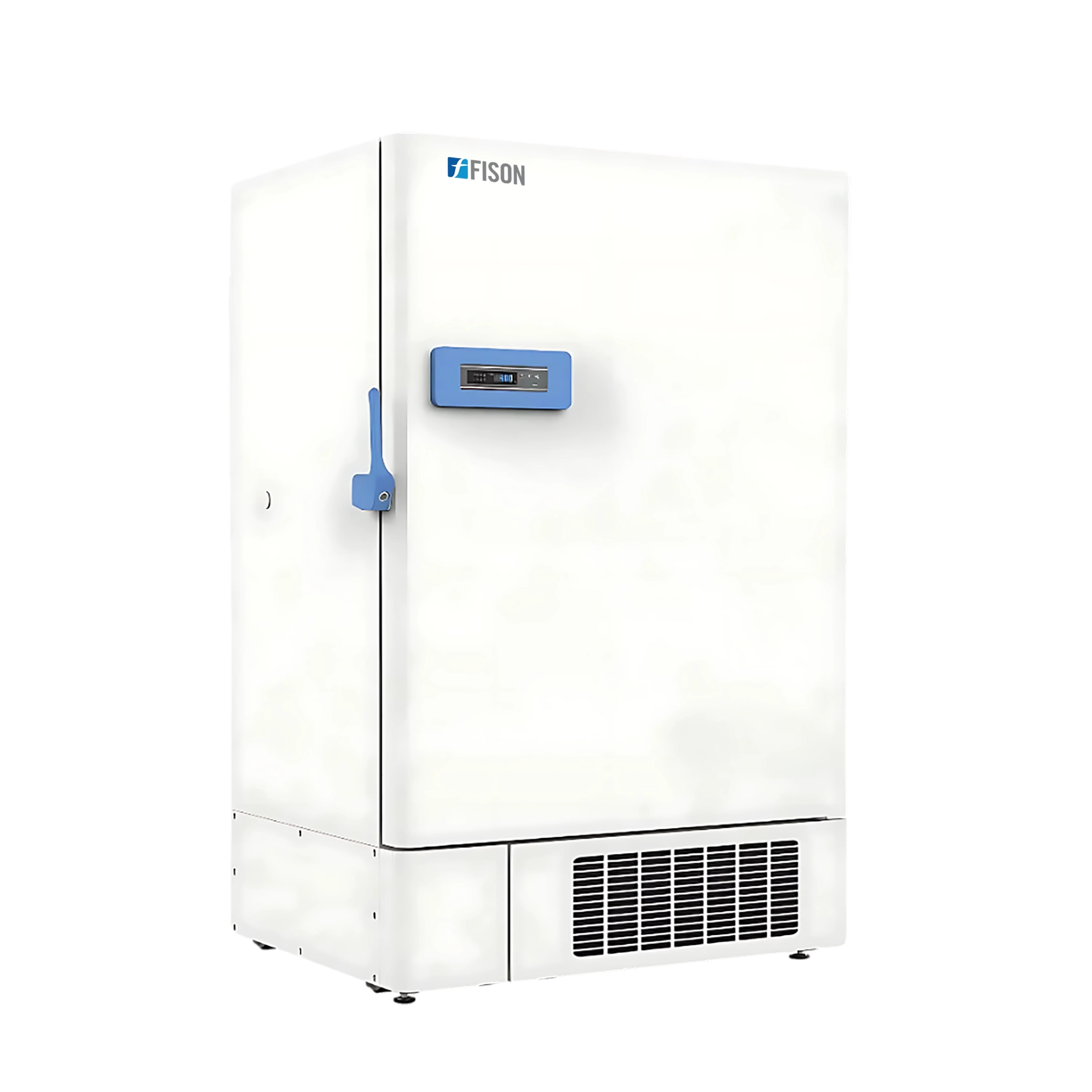

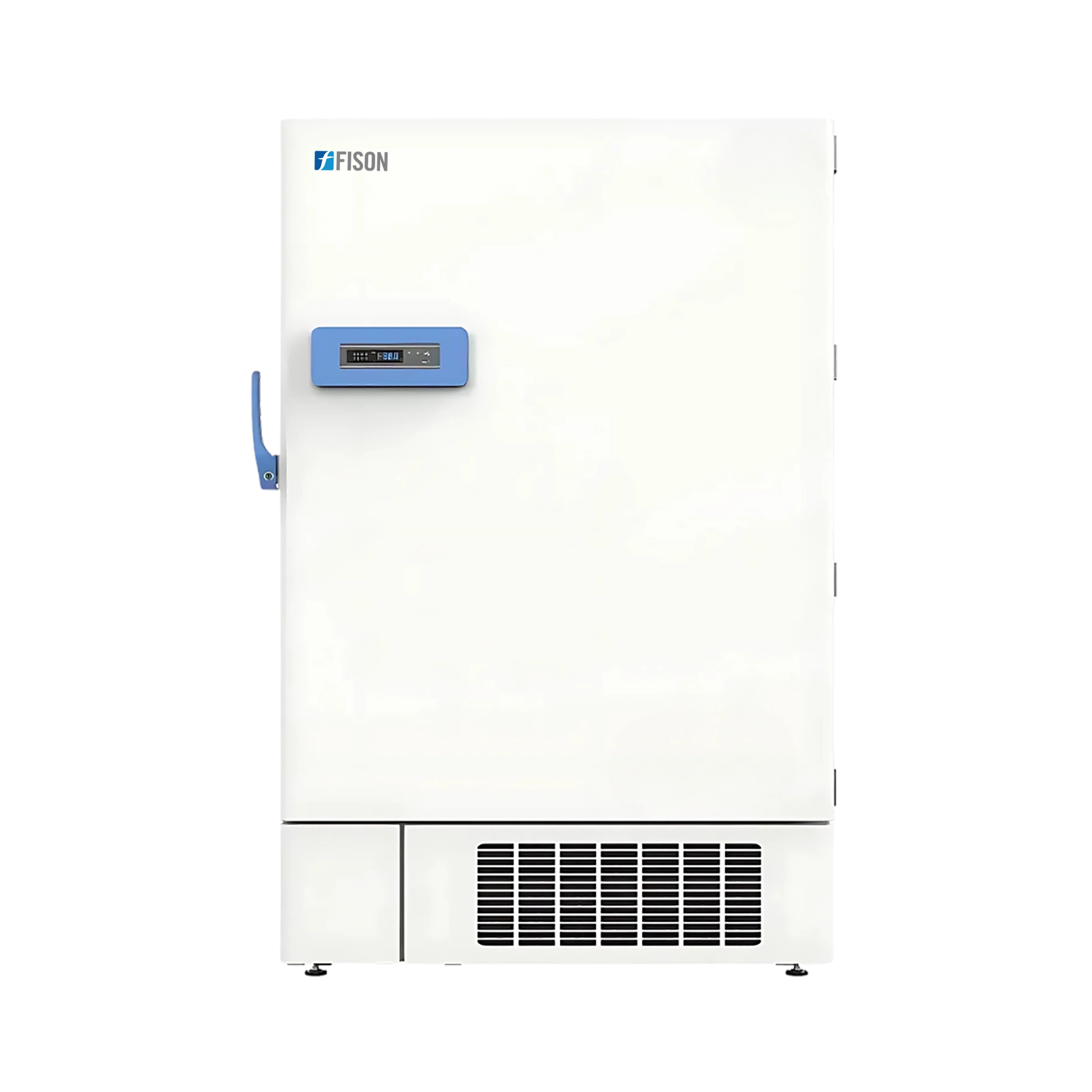

-40°C Upright Freezer FM-UF-C102 - Specifications

Capacity	1008 L
Temperature range	-20 to -40°C
Ambient temperature	16 to 32°C
Climate class	N
Controller	Microprocessor
Display	Digital display
Compressor	2 pcs
Cooling method	Direct cooling
Defrost mode	Manual
Refrigerant	R290
Insulation thickness	130
External material	High Quality Steel plates with spraying
Inner material	Galvanized steel sheet

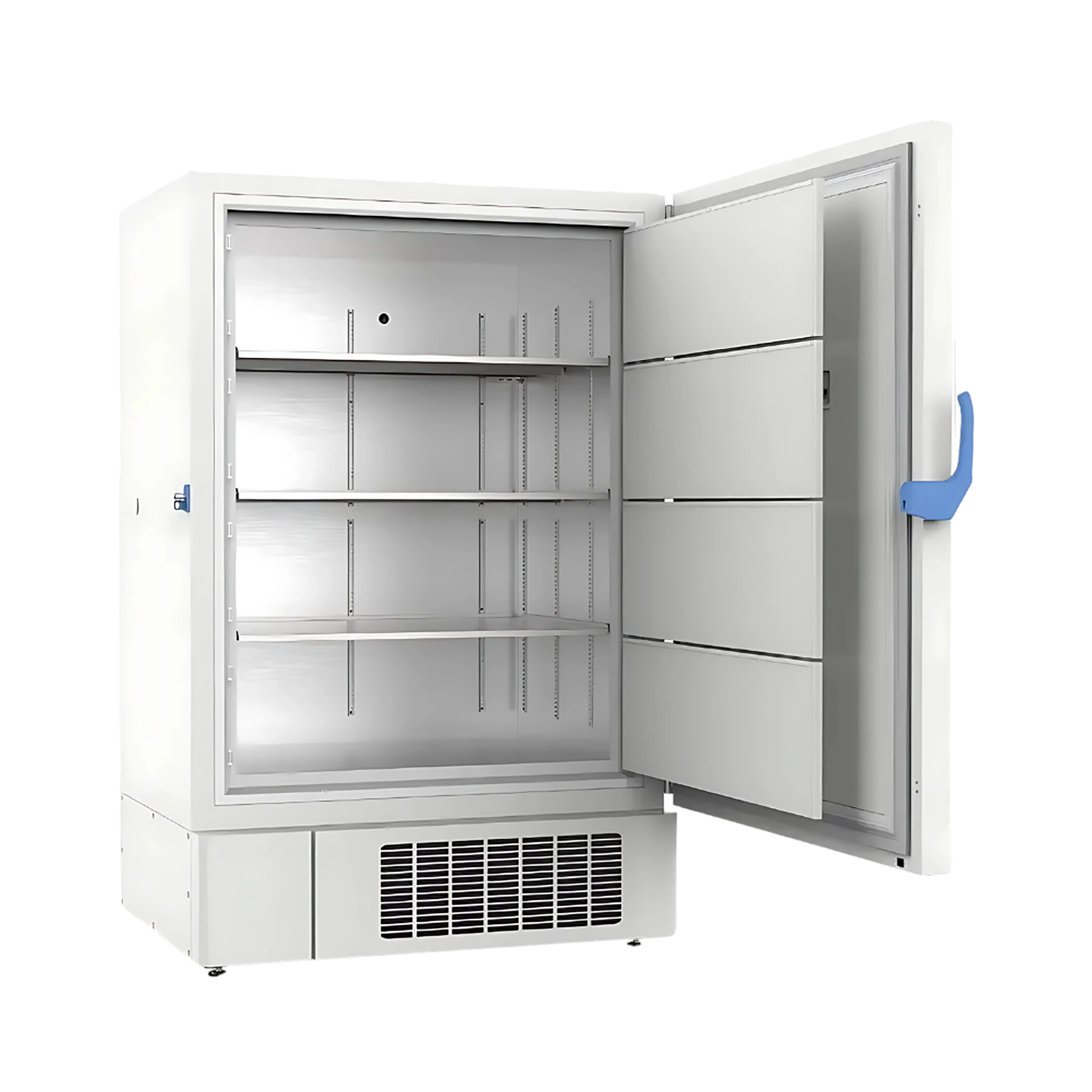

Shelves	3 (stainless steel)
Door lock with key	Yes
Access Port	3pc. Ø 25 mm
Casters	4 (2 leveling feet)
Backup battery	Yes
Power supply	220 - 240 V/50 Hz
Power	650 W
Power consumption	8.99
Alarm	Temperature High/Low temperature, High ambient temperature Electrical Power failure, low battery System Sensor failure, Condenser overheating alarm, Door ajar, Communication error, Built-in USB datalogger failure
Rated current	8.5 A
Internal dimension (W×D×H)	1022 × 696 × 1378 mm
External dimension (W×D×H)	1360 × 1006 × 1980 mm
Net weight	320 kg
Gross weight	440 kg

-40°C Upright Freezer FM-UF-C102 - Features

1. A direct cooling comprised microprocessor controlled upright type unit
2. 1008 L of capacity with -40°C of cooling performance and -20 to -40°C of temperature control range
3. Manual defrost mode and freon-free R290 refrigerant, energy-efficient and environment-friendly
4. The insulated foamed outer door with seal design prevents loss of cooling capacity effectively
5. High-efficient EBM fan and compressor, ensures efficient and even temperature
6. High-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control
7. High-quality steel plate structure with phosphate coating, Galvanized steel liner and low noise design can create a comfortable environment
8. Powder coated materialized housing with two-layer thermal insulating foamed door
9. Digital display, allows to control and monitor the temperature range
10. Keyboard lock function and door lock for assured safe storage of samples
11. High-efficient, stable, and reliable multigrade unit for different sample storage
12. Advanced alarm system, provides precise and safe operation
13. Startup delay and stop interval protection function to ensure reliable operation

-40°C Upright Freezer FM-UF-C102 - Applications

• -40°C Upright Freezers are used for scientific research, cryogenic test, blood plasma cryopreservation, low temperature resistance across the research institutes, electronic industry, chemical industry, hospitals, health & disease prevention system, colleges & universities, military enterprises, etc

-40°C Upright Freezer FM-UF-C102 - Accessories

• RS485

  ---

  Remote alarm control

-40°C Upright Freezer FM-UF-C102 - Accessories Optional

• Printer

  ---

  Chart recorder
