Air Jacketed CO2 Incubator FM-CIA-A101 Air Jacketed CO2 Incubator FM-CIA-A101 Air Jacketed CO2 Incubator FM-CIA-A101 Air Jacketed CO2 Incubator FM-CIA-A101

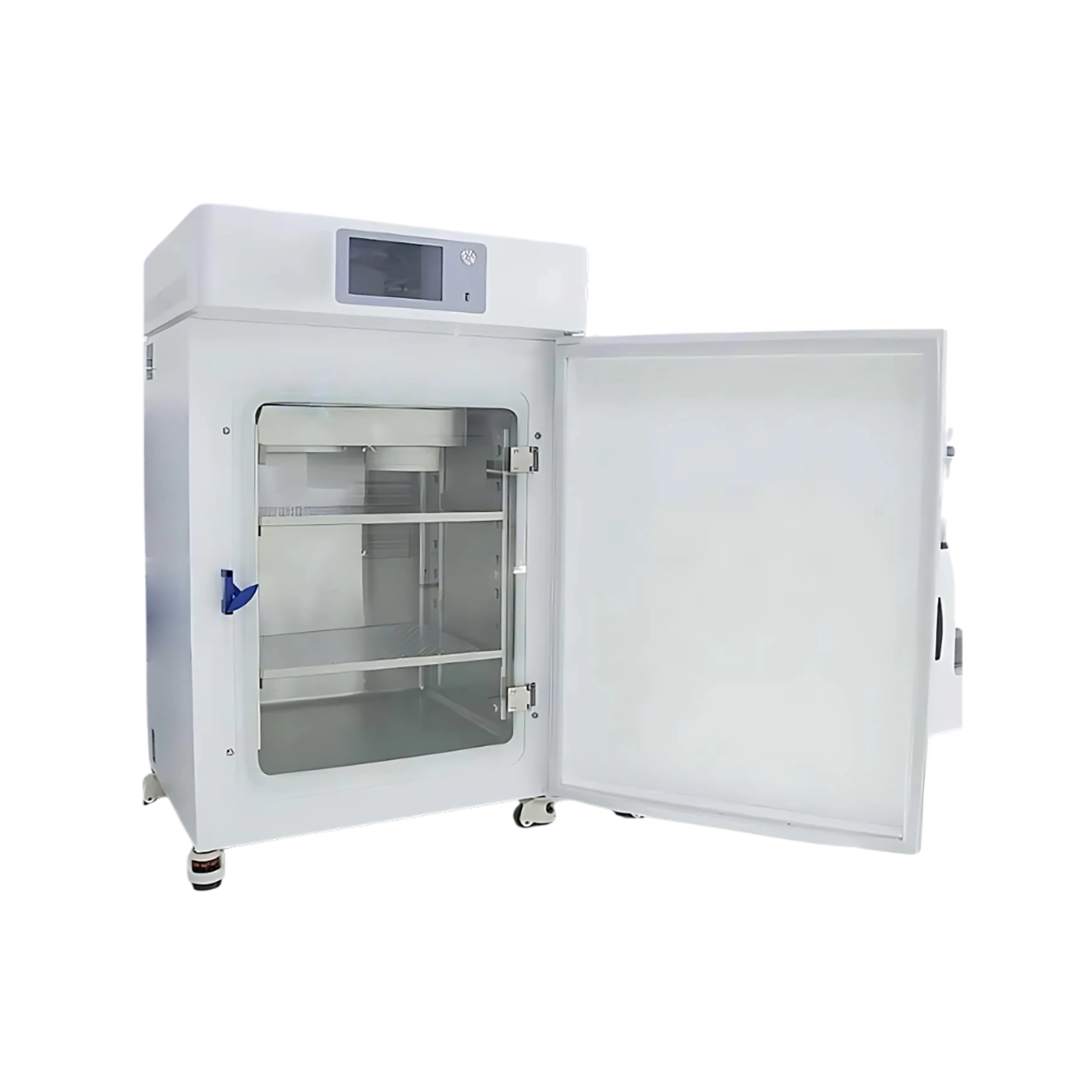

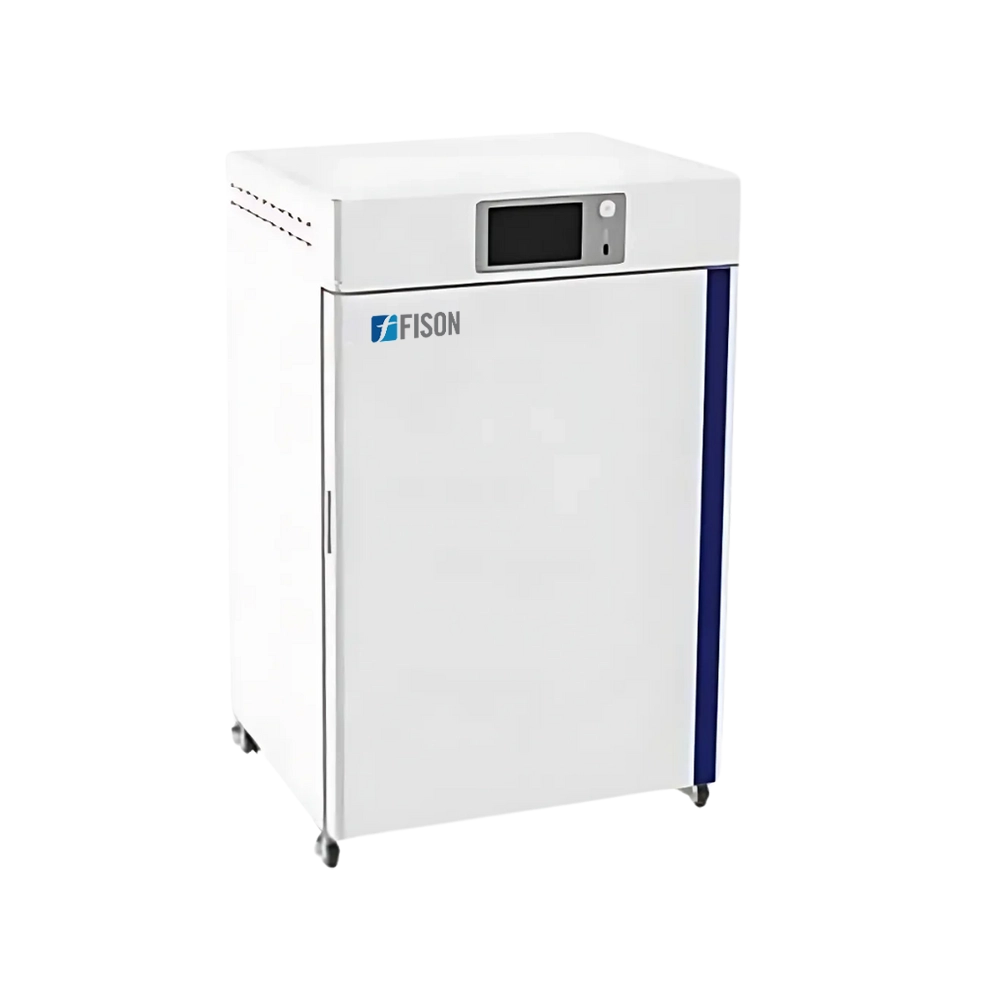

Air Jacketed CO2 Incubator FM-CIA-A101

Air Jacketed CO₂ Incubator FM-CIA-A101 employs air-jacketed temperature control technology to ensure an optimal and stable growing environment for cell and tissue cultures. Built-in microprocessor controller technology with LED display and 80 L working chamber capacity. Enhanced safety features include infrared sensor for CO₂ concentration and UV lamp for sterilization, promotes cell growth through precise control of humidity, temperature, and CO₂ gas while minimizing the potential for contamination.

$4,112.00

Download Catalog

Air Jacketed CO2 Incubator FM-CIA-A101 - Specifications

Capacity 80 L
Heating Air jacket
Temperature range RT +5 to 60°C
Control type PID control
Temperature fluctuation ≤ ±0.2°C (at 37°C)
Temperature uniformity ≤ ±0.3°C (at 37°C)
Time setting 999 h or continuous
Alarm system Over-temperature alarm; CO₂ Concentration alarm; Temperature sensor error alarm; Water-shortage alarm.
Interior material Stainless steel
Exterior material Cold-rolled steel with painting
Door type Double door
Insulation Material Polystyrene film
CO₂ control sensor Infrared sensor
CO₂ measuring range 0 to 20 %
CO₂ concentration control accuracy CO₂ concentration control error 5% ± 0.1 %
Humidification type Water tank for natural evaporation
Sterilization type UV lamp
Shelves 2 pcs/adjustable
Caster type Foot master caster
Interface USB port
Power supply 220 V±10%，50/60 Hz
Maximum power consumption 600 W
Internal dimension (W×D×H)  398×446×498 mm
External dimension (W×D×H)  600×596×921 mm
Packaging dimension (W×D×H) 730×735×1070 mm
Gross Weight 83 kg

Air Jacketed CO2 Incubator FM-CIA-A101 - Features

  1. Microcomputer controlled system
  2. PID controller to control several parameters
  3. UV Lamp as a sterilizing agent
  4. LCD touch screen displays: Temperature, CO₂ concentration, and run-time
  5. 2 perforated stainless-steel shelves and 50 L inner chamber capacity
  6. Infrared (IR) sensor uses split-beam technology for CO₂ control in fluctuating temperature and humidity conditions
  7. Rapid humidity recovery using a large directly heated water reservoir
  8. CO₂ incubator pressure regulator
  9. Water level and over temperature alarm with audible and visual alert
  10. Tightly sealed inner door made of tempered safety glass
  11. Excellent quality gas circuit valve for stable CO₂ concentration and less CO₂ consumption
  12. Working chamber adopts round angle structure, easy to clean

Air Jacketed CO2 Incubator FM-CIA-A101 - Applications

  • CO₂ incubators are designed to maintain adequate interior moisture to prevent the drying out of cultures. These air jacketed CO₂ incubators are widely used for a broad range of applications that includes: Tissue engineering, In vitro fertilization, Neuroscience, Cancer research, Stem cell research, Regenerative medicine, Mammalian cell research.

Alternative Models Of Air Jacketed CO2 Incubator

Fison Air Jacketed CO? Incubators offer a stable and uniform environment with an advanced heating system. They feature a microcomputer-controlled system with a PID controller for precise regulation of multiple parameters. These units provide an LCD touch screen for easy monitoring. They include a tightly sealed inner door made of tempered safety glass for better insulation. They are equipped with water level and over-temperature alarms with audible and visual alerts for enhanced safety.
