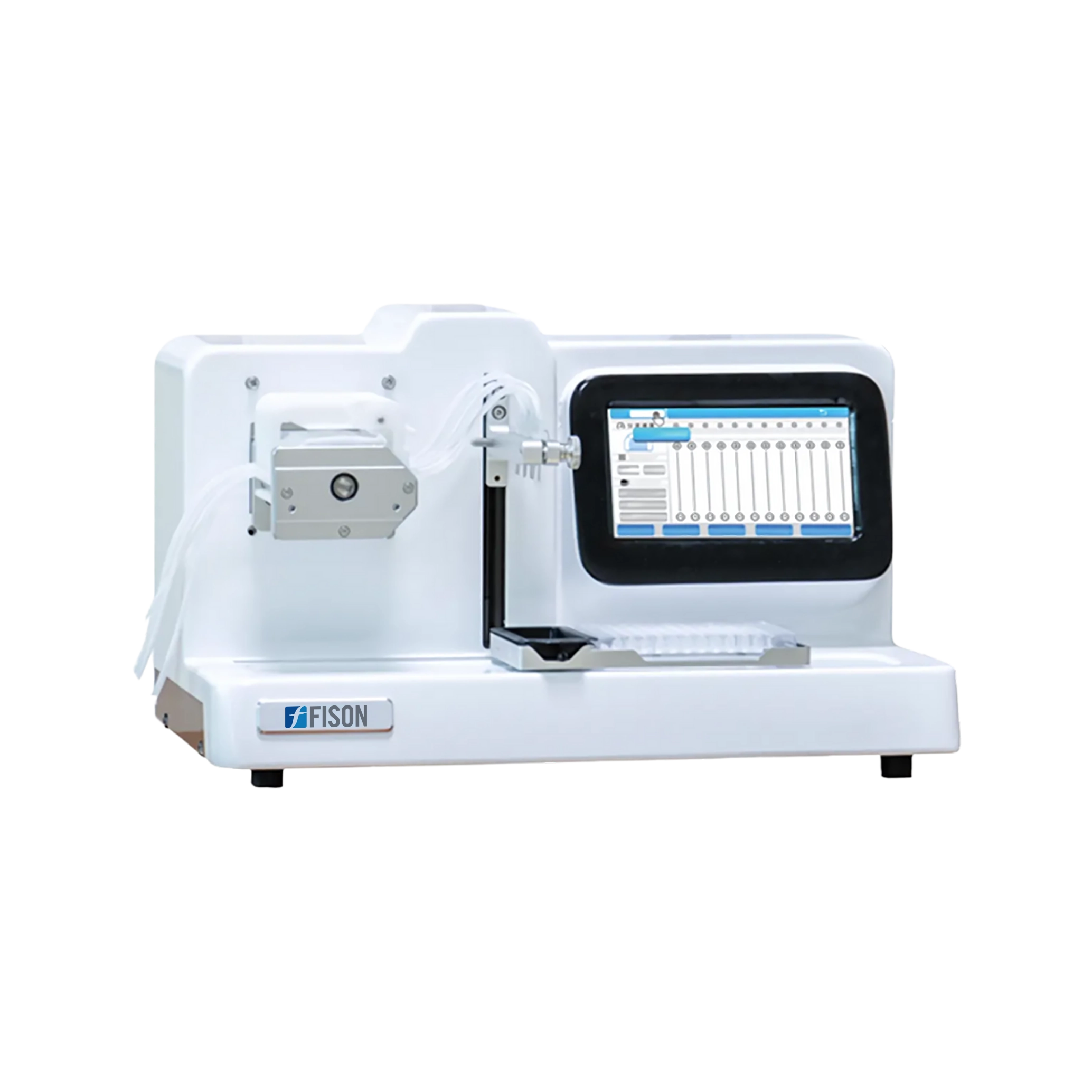

Automatic Dispenser FM-AD-A100
Automatic Dispenser FM-AD-A100 distributes reagent across 8 to 96 well plates. It rapidly delivers 100 µL of sample within 10 seconds. Incorporated with high quality peristaltic pump for precise liquid measurement. Features robotic arm to eliminate manual intervention and minimize contamination. Our Dispenser automates the process of sample handling for high-throughput analysis.
Specifications
| Dispensing Capacity | 5 to 9999 µL |
| Volume Increment | 1 µL |
| Plate Compatibility | 8 to 96 well plate |
| Dispensing Precision | 20 µL ≤ 5%; 100 µL ≤ 1.5% (96 well plate) |
| Dispensing Accuracy | 20 µL ± 1.5%; 100 µL ± 1 % (96 well plate) |
| Dispensing Speed | Adjustable |
| Dispensing Pipe | 8- channel |
| Waste Liquid Handling | Removable waste collection tray |
| Auxiliary Function | Shake, rinse, suck, pipe wash |
| Display | 7-inch touch screen |
| Power Supply | 220/110 V, 50/60 Hz |
| External Size | 465 × 275 × 280 mm |
| Packaging Size | 520 × 350 × 350 mm |
| Net Weight | 10 kg |
| Gross Weight | 13 kg |
Features
- Graphical operation interface
- 7-inch touch screen display
- Adjustable dispensing speed
- Multiple channels
- Detachable waste collection tray
Applications
- Automatic Dispenser automates sample preparation process for clinical diagnosis including ELISA, PCR, drug formulation, cosmetics, food and beverage industries.
